30l-260l Oil Wiped Film Molecular Distillation Unit High Purity
30l-260l Oil Wiped Film Molecular Distillation Unit High Purity
Specifications
Diameter :
200 (mm)
Distillate Outlet :
Continuous
Film System :
Wiped Filming System
Material :
Stainless Steel
Residue Outlet :
Continuous
Type :
Molecular Distillation Equipment
Voltage :
220V -60hz
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • High Purity Plant Oil Molecular Distillation

      Below a distillation plant for laboratory use is described. The plant is used for:

      • Process development.
      • Feasibility studies.
      • Continuous distillation of smaller quantities.
      • For heat sensitive chemical, pharmaceutical and food products.

      The achievable operating pressure may be as low as 0.001 mbar in the short path evaporator. (Depending on product and process).

      1.Technical parameters of thin film molecular distillation equipment:

      Type of molecular distillation

      MDS-200 molecular distillation system

      Maximum distillation temperature

      300 °C

      Minimal achievable operating pressure

      (depending on product)

      < 0.001mbar with rotary vane pump and oil diffusion vacuum pump.

      Throughput (depending on product)

      30– 260 kg/h

      Evaporation surface

      2 m²

      Surface of internal condenser

      2 m²

      Wiped film system

      Scraper type film scraping rotor

      Maximum viscosity of product can be processed

      Under operating temperature: 5000 centipoise.

      2. Main features of this short path distillation kit

      • Material feeding system: 20L jacketed stainless steel tank, and through high precision gear pump feeding (20-80L/H), stable and continuously.

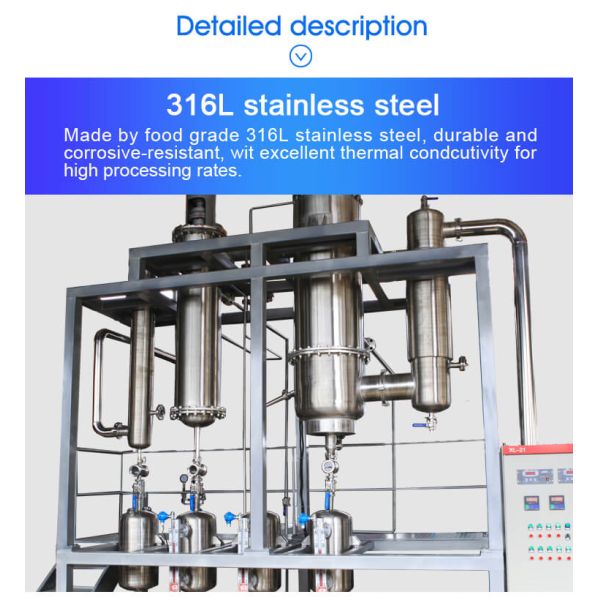

      • Short path evaporator: S304 stainless steel material, and evaporator surface: 0.5㎡, design temperature of evaporator jacket: 350℃.
      • Heavier component discharge system: 50L collecting material, discharge pipeline is consist of 1pcs vacuum ball valve & 1pcs 29# internal grinding mouth bottle adapter.
      • Lighter component discharge system: 20L collecting material, 1 set condenser whose heat exchange area is 2㎡, cooling and collecting the distillation extract light component, material is S304 stainless steel.
      • Heating & Cooling Unit:

      No.

      Model

      Description

      Features

      Qua.

      1

      UC-A2530 heater

      Matched with main evaporator.

      – Temperature range: RT-300℃.

      – Power: 25KW, AC 380V.

      – Medium: conduction oil.

      1set

      2

      UC-5020 heater

      Matched with feeder and light component’s pipe temperature preservation.

      – Temperature range: RT-200℃.

      – Power: 5KW, AC 220V.

      – Medium: conduction oil.

      1set

      3

      UC-5020 heater

      Matched with heavier component’s pipe temperature preservation.

      –Temperature range: RT-200℃.

      – Power: 5KW, AC 220V.

      – Medium: conduction oil.

      1set

      4

      HR-250 high & low temperature circulator

      Matched with internal condenser.

      – Temperature range: -20~98℃.

      – Power: 25KW custimized, AC 380V.

      – Medium: conduction oil.

      1set
      • Vacuum system: vacuum degree could achieve 10Pa, 1Pa, 0.1Pa, vacuum pump are equipped well.

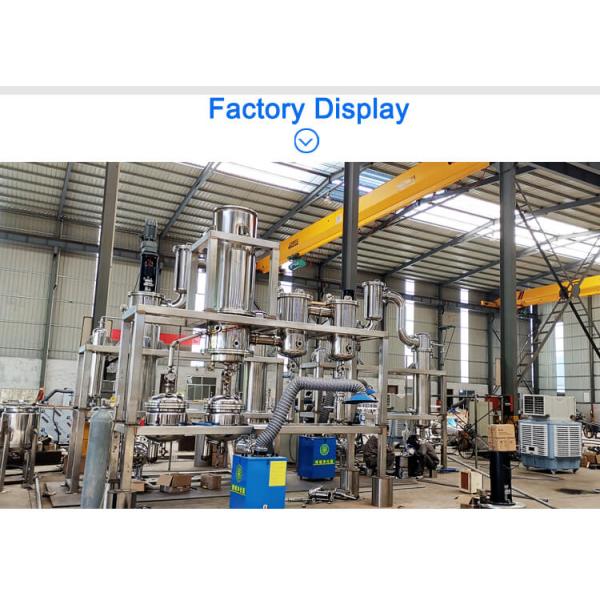

      Please check our molecular distillation equipment production process, more welcome contact info@toption-china.com for factory visit:

      Know more about TOPTION INSTRUMENT CO.,LTD

    • Technical parameters of industrial molecular distillation

      Type of molecular distillation

      MDS-50CE vacuum molecular distillation stills

      Maximum distillation temperature

      300 °C

      Minimal achievable operating pressure

      (depending on product)

      < 0.001mbar with rotary vane pump and oil diffusion vacuum pump.

      Throughput (depending on product)

      20– 60 kg/h

      Evaporation surface

      0.5 m²

      Surface of internal condenser

      2 m²

      Surface of external condenser

      2 m²

      Wiped film system

      Scraper type film scraping rotor

      Maximum viscosity of product can be processed

      Under operating temperature: 5000 centipoise.

      TOPTION molecular distillation equipment factory visit contact info@toption-china.com 24h/7days online service.

      Laboratory short path molecular distillation:
