50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
50L Jacketed Wiped Film Molecular Distillation System For Fish Oil
Specifications
Control System :
PLC
Cooling Method :
Water Cooling
Heating Method :
Electric Heating
Material :
Stainless Steel
Type :
Molecular Distillation Equipment
Voltage :
220V -60hz
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • molecular distillation

      Stainless steel molecular distillation equipment durable use, stainless steel material’s quickly heat transfer rate, guarantee extraction efficient is 1.4 times higher. Popular used in plant oil extraction, essential oil distillation, fish oil / waste oil distillation, etc.

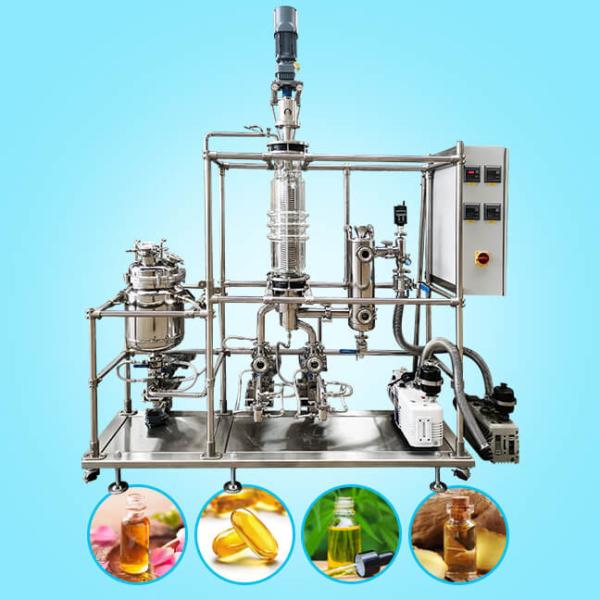

      Technical parameters of MDS-50CE short path molecular distillation

      Model MDS-50C molecular distillation
      Material tank 50L jacketed tank
      2 sight glass at top, with insulated ball valve.
      Material charging Gear pump
      Flow 10L～50L/H
      750W frequency control
      Evaporator Evaporation area 0.5㎡
      Film forming way: scraper (roller is optional)
      Material: 316L
      Mechanical seal (Magnetic seal is optional)
      Film forming motor: 1.5KW, frequency control of motor speed
      Cold trap 1. 1㎡chiller cooling cold trap
      2. 5L liquid nitrogen cold trap
      3. Dual-purpose (chiller & liquid nitrogen cold trap dual purpose).
      Choose 1 in above 3 types
      Heavier component discharge Gear pump
      Flow 10L～50L/H
      750W frequency control of motor speed
      Lighter component discharge Gear pump
      Flow 10L～50L/H
      750W frequency control of motor speed
      Material pipeline Jacketed insulation
      Shelf & assemble 304 stainless steel pipe

      Your benefits of TOPTION molecular distillation machine

      TOPTION as molecular distillation equipment manufacturer, has more than 15 years distillation equipment production experience, support professional customize – multistage types, lab / pilot / industry types optional.

      Support global OEM service & technical support, overseas installation / training service. Also welcome factory visit contact info@toptionlab.com 24h/7days sales & technical engineers team service.

    • MDS-10CE molecular distillation

      MDS-10CE stainless steel molecular distillation equipment is hotsale type, matched with vacuum pump (10pa, 1pa, 0.05pa), heating and cooling circulator bath. Storage is available for fast delivery, safe shipping, technical support, overseas installation / training service is available.

      Technical parameters of MDS-10CE molecular distillation machine

      Choose TOPTION brand molecular distillation equipment, guarantee your business and money be safe.

      Multi-stages molecular distillation equipment professional customize.

    • MDS-6 series laboratory molecular distillation equipment

      Technical parameters of TOPTION brand molecular distillation equipment, believe TOPTION will be your TOP OPTION.

      Choose TOPTION molecular distillation machine, maximize your benefits

      Lab – Pilot – Industry wide capacity range molecular distillation equipment is optional
