30L-200L Wiped Thin Film Evaporator Herbal Distillation Equipment
30L-200L Wiped Thin Film Evaporator Herbal Distillation Equipment
30L-200L Wiped Thin Film Evaporator Herbal Distillation Equipment
30L-200L Wiped Thin Film Evaporator Herbal Distillation Equipment
30L-200L Wiped Thin Film Evaporator Herbal Distillation Equipment
30L-200L Wiped Thin Film Evaporator Herbal Distillation Equipment
Specifications
Cooling Method :
Water Cooling
Film System :
Wiped Filming System
Heating Method :
Electric Heating
Power Supply :
220V/50Hz
Temperature Range :
20-200°C
Voltage :
220V -60hz
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

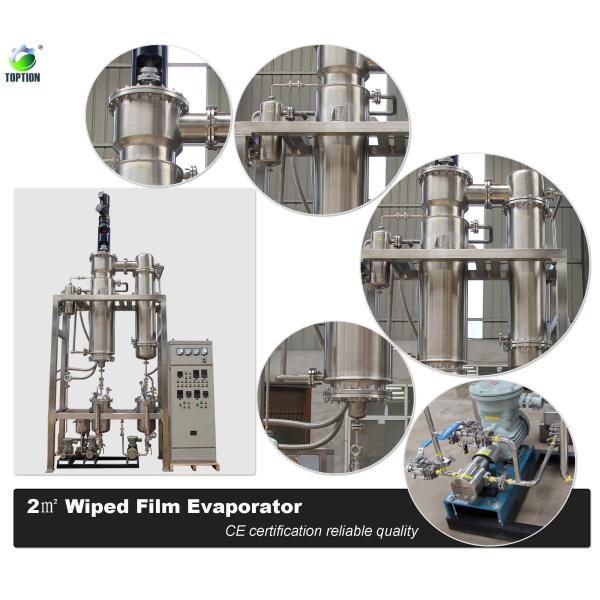

    • 2㎡ wiped film distillation equipment

      Wiped film evaporator is widely used to evaporate, condense, decolor, trip, react, degas, deodorant the materials with high heating-sensitive and easy to oxidate.

      • Small pressure losing.
      • Big diathermanous coefficient, high evaporating efficiency.
      • Low evaporating temperature.
      • Short heating time.
      • Strong adaptability, easy to operate.

      Technical parameters of thin film evaporator

      Main body

      Model

      PWFS-1C

      PWFS-2C

      Material tank

      Customer’s own storage tank

      Customer’s own storage tank

      Material charging

      Gear pump

      Gear pump

      Flow 30L～200L/H

      Flow 30L～260L/H

      750W frequency control

      1.5KW frequency control

      Evaporator

      Evaporation area 1㎡

      Evaporation area 2㎡

      Film forming way: scraper (roller is optional)

      Film forming way: scraper (roller is optional)

      Material: 316L

      Material:316L

      Mechanical seal

      Mechanical seal

      Film forming motor:3KW, frequency control

      Film forming motor:3KW, frequency control

      Cold trap

      5㎡tube nest

      5㎡tube nest

      Heavier component discharge

      Gear pump

      Gear pump

      Flow 30L～200L/H

      Flow 30L～260L/H

      750W frequency control

      1.5KW frequency control

      Lighter component discharge

      Gear pump

      Gear pump

      Flow 30L～200L/H

      Flow 30L～260L/H

      750W frequency control

      1.5KW frequency control

      Material pipeline

      Jacketed insulation

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      304 stainless steel pipe

      Accessory

      Vacuum

      Water jet pump TL-40,Large square water pump

      Water jet pump TL-40,Large square water pump

      Main evaporator heating

      200℃/25KW

      200℃/38KW

      Raw material section insulation

      1. 200℃/5.5KW

      1. 200℃/5.5KW

      External condenser cooling

      1. Circulating water , low cost

      1. Circulating water, low cost

      2. Industrial chiller FL-3500

      2. Industrial chiller FL-5000

      Capacity range of wiped film evaporator vacuum distillation equipment

      Model Evaporator Area(㎡) Height(mm) Capacity (L/H)
      PWFS -0.1 0.1 1200 2-10
      PWFS -0.2 0.2 1580 10-20
      PWFS -0.3 0.3 1980 15-30
      PWFS -0.5 0.5 2750 20-50
      PWFS -1.0 1.0 3350 50-100
      PWFS -2.0 2.0 4320 100-200
      PWFS -3.0 3.0 5100 100-300
      PWFS -4.0 4.0 5600 120-350
      PWFS -5.0 5.0 6000 150-405
      PWFS -6.0 6.0 6500 180-550
      PWFS -8.0 8.0 7230 250-750
      PWFS -10 10 7350 300-950

      Please contact info@toption-china.com for detail wiped film distillation equipment information, we will reply you within 4 hours.

    • Wiped Film Evaporator

      TOPTION wiped film evaporator is also called thin film evaporator, which is used to evaporate, condense, decolor, trip, react, degas, deodorant the materials with high heating-sensitive and easy to oxidate.

      Wiped film distillation is an excellent method for gently thermal treatment of heat sensitive, high boiling products. At present, there are hundreds of products used in thin film evaporator.

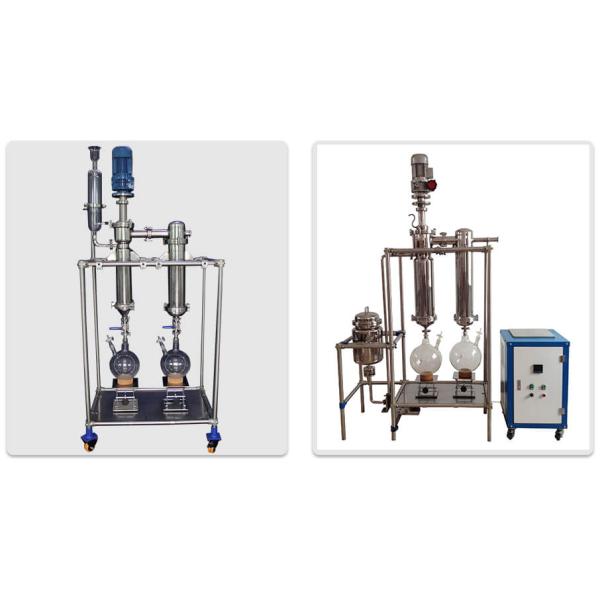

      Technical parameters of wiped film evaporator vacuum distillation equipment:

      Main body

      Model

      PWFS-0.1C

      PWFS-0.1B

      PWFS-0.1A

      Material tank

      15L jacketed tank

      15L jacketed tank

      5L jacketed tank

      2 sight glass at top, with insulated ball valve.

      2 sight glass at top, with insulated ball valve.

      2 sight glass at top

      Material charging

      Gear pump

      Gear pump

      Manual valve feed

      Flow 3L～15L/H

      Flow 3L～15L/H

      200W motor, electronic speed regulation.

      200W motor, electronic speed regulation.

      Evaporator

      Evaporation area 0.1㎡

      Evaporation area 0.1㎡

      Evaporation area 0.1㎡

      Film forming way: scraper (roller is optional)

      Film forming way: scraper (roller is optional)

      Film forming way: scraper (roller is optional)

      Material: 316L

      Material: 316L

      Material: 316L

      Mechanical seal (Magnetic seal is optional)

      Mechanical seal (Magnetic seal is optional)

      Mechanical seal (Magnetic seal is optional)

      Film forming motor: 370W, mechanical constantly variable transmission,200～1000 rpm/min

      Film forming motor: 370W, mechanical constantly variable transmission,200～1000 rpm/min

      Film forming motor: 370W, mechanical constantly variable transmission,200～1000 rpm/min

      Cold trap

      1㎡ tube nest

      1㎡tube nest

      1㎡tube nest

      Heavier component discharge

      Gear pump

      29# Grinding mouth adapter

      29# Grinding mouth adapter

      Flow 3L～15L/H

      10L glass bottle 1pcs, bottle holder 1pcs

      10L glass bottle 1pcs, bottle holder 1pcs

      200W motor, electronic speed regulation.

      Lifting table 1pcs

      Lifting table 1pcs

      Lighter component discharge

      Gear pump

      29# Grinding mouth adapter

      29# Grinding mouth adapter

      Flow 3L～15L/H

      10L glass bottle 1pcs, bottle holder 1pcs

      10L glass bottle 1pcs, bottle holder 1pcs

      200W motor, electronic speed regulation.

      Lifting table 1pcs

      Lifting table 1pcs

      Material pipeline

      Jacketed insulation

      Jacketed insulation

      Jacketed insulation

      Shelf & assemble

      304 stainless steel pipe

      304 stainless steel pipe

      304 stainless steel pipe

      Accessory

      Vacuum B95

      Water ring pump

      Water ring pump

      Water ring pump

      Main evaporator heating

      200℃/5.5KW

      200℃/5.5KW

      200℃/5.5KW

      Raw material section insulation

      1,200℃/2KW

      1,200℃/2KW

      1,200℃/2KW

      External cold trap cooling

      1. Circulating water, low cost

      1. Circulating water, low cost

      1. Circulating water, low cost

      2. Or choose chiller

      2. Chiller

      2. Or choose chiller

      Vacuum system of this wiped film evaporator set (FYI, detail vacuum system will be different of different wiped film distillation system, please contact us – info@toption-china.com )

      • Ultimate vacuum: 0.0985 MPa
      • Guaranteed vacuum degree:0.098 MPa
      • Maximum pumping volume: 40m3/h
      • Centrifugal pump power: 2.2 KW
