200L Nutsche filter dryers

TOPTION brand 200L nutsche filter dryers gather “Filtration, Washing, Drying” function in one body, which is a new premium solid-liquid separation technology, can make the material finish filtering, washing and drying process in an airtight container equipment, utmost to improve the utilization rate of the nutsche filter dryers.

Technical parameters of 200L nutsche filter dryers

Why choose nutsche filter dryers ?

1. In one same container finish filtering, washing and drying whole process, continuous operation.

2. Operate under pressure or vacuum condition, realize the solid-liquid separation.

3. During filtering process, the filter cake uniform distribution, solid-liquid separation effect is good.

4. Hydraulic pressure control the rise & fall of the mixing system, has uttermost increase the solid materials space during filteration process.

5. The rise & fall and stirring of mixing blade, make the cleaning fluid and filter cake intensive mixing during washing process , guarantee the filter cake full washing.

6. Greatly shorten time during drying process, improve efficiency.

7. Various control of liquid outlet valve, automatic material discharging of solid discharging system, reduce the labor intensity, save cost and more efficient.

8. Can washing online, sterilization online, all operation process can be done under inert gas protection, safe and reliable.

9. Nutsche filter baseplate is removable, help the equipment realize thoroughly cleaning, applicable to the production of sterile bulk drug, full compliance with GMP and FDA production requirements.

Nutsche filter dryers factory show, CE certification, ISO approved, quality is our culture, welcome contact info@toption-china.com for professional customize or factory visit.

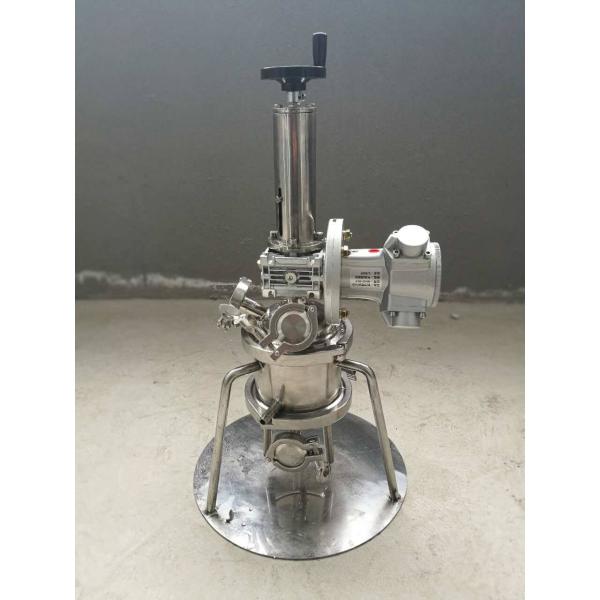

Lab type nutsche filter

Nutsche Filter Dryer

In order to meet the confined production process, filter washing and drying reactor, three-in-one filter has been developed. TOPTION this production system can realize half automatic or complete automatic operation control.

Nutsche Filter Dryer main working steps

1. Feeding

Open the feeding valve to feed in the tank, paddle should be in the upper position when feeding, if necessary, can be lowered stirring paddle for low speed stirring, so that the material is evenly distributed. When the material reaches the specified process stop feeding, close the feed valve.

2. Washing

Washing fluid at 0.2 ~ 0.3MPa pressure by the rotating nozzle cleaning, and stirring paddle has been suspended high.

3. Filter

After washing, upper the stirrer to related position, stop stirring, the liquid will be discharged from bottom. Then repeat the filtering steps until you get perfect material.

4. Drying

• Open hot water valve, then balance valve, next vacuum valve.
• Please open the balance valve in advance if upper vacuum down drying condition, to ensure pressure balance. to Concentration of chloride ions in the heating and cooling water should be strictly controlled, to avoid chloride ions on the jacket and the tank corrosion. Please use of chloride-free water.
• Open the jacket water inlet valve slowly, and open slightly for water outlet valve. Fully open them when outlet and inlet has temperature gap less than 20℃ to avoid cavitation vibration.

5. Material discharge

Sampling analysis before discharge, if ok, then discharge them.

Main technical parameters of laboratory nutsche filter:

More nutsche filter customize, want to know detail information of nutsche filter dryer, welcome contact info@toption-china.com 24h/7days online service.
