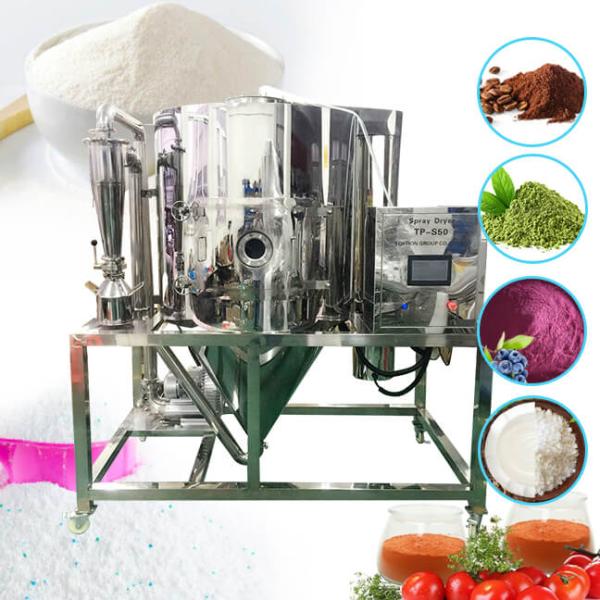

TOPTION China Spray Dryer Machine For Fruit Juice / Milk Powder
TOPTION China Spray Dryer Machine For Fruit Juice / Milk Powder
TOPTION China Spray Dryer Machine For Fruit Juice / Milk Powder
TOPTION China Spray Dryer Machine For Fruit Juice / Milk Powder
TOPTION China Spray Dryer Machine For Fruit Juice / Milk Powder
TOPTION China Spray Dryer Machine For Fruit Juice / Milk Powder
TOPTION China Spray Dryer Machine For Fruit Juice / Milk Powder
TOPTION China Spray Dryer Machine For Fruit Juice / Milk Powder
Specifications
Applicable Industries :
Manufacturing Plant
Application :
Medicine Processing, Medical
Control System :
PLC/Touch Screen
Exhaust Gas Treatment :
Cyclone Separator/Bag Filter
Frame Material :
Fully 316 stainless steel material
Heating Method :
Electric/Steam/Gas
Installation :
Engineer's Guidance
Port :
Shanghai
Standard :
GMP
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • Spray dryer

      TOPTION this hotsale type spray dryer with PLC control system ( language of the operation interface can be customized ) is widely and popular used for liquid materials with good fluidity, such as fruit juice, milk powder, plant extracts, instant coffee, etc. The micro powder produced by spray drying equipment, you don’t need to do material filtration, concentration and smash before drying, very convenient and make your drying process high efficient.

      Technical parameters of spray drying equipment

      Item Unit TP-S50 TP-S100
      Max capacity ml/h 5000 10000
      Temperature range of inlet air ℃ 140°C ~ 300°C
      Adjustable      		 50°C ~ 300°C
      Temperature range of outlet air ℃ 80°C ~ 90°C 30°C ~ 150°C
      Spray system / Centrifugal nozzle Centrifugal nozzle
      Precision of temp ℃ ±1
      Dryer time S 1.0 ~ 1.5
      Speed of squirt pump ml/h 5000 10000
      Spray direction / Downwards co-current
      Heater Power / 3KW 220V
      Total power / 10KW 380V
      Heat source / Electric
      Air compressor / Built-in oil-free air compressor
      Dried powder restoring rate % ≥95 ≥98
      Maximum moisture evaporation Kg/h 5 10

      ISO CE certification reliable manufacturer and supplier of spray drying equipment, customization support, OEM, all drying equipment has 1 year warranty period, lifetime service.

    • How to use the spray dryer powder making machine?

      1.After the air passes through the filter and the heating device, it enters the hot air distributor on the top of the drying room, and the hot air passing through the hot air distributor evenly enters the drying room and rotates in a spiral shape.
      2.At the same time, the material liquid is sent to the centrifugal spray head (atomizer) installed at the top of the drying chamber, and the material liquid is sprayed into performance mist droplets.
      3.The contact surface area of the material liquid and the hot air is greatly increased, and the water evaporates quickly, and the finished product is dried in a very short time.
      4.The powder is recovered by the collection tube at the bottom of the dryer, and the exhaust gas is discharged by the centrifugal fan.
