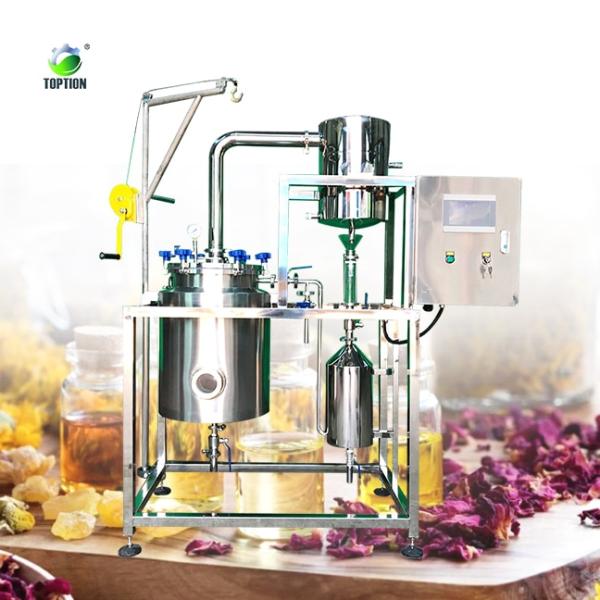

TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
TOPTION Essential Oil Extractor Stainless Steel Botanical Extraction Equipment
Specifications
Color :
Silver
Cooling Method :
Water Cooling
Cooling Mode :
Water Cooling
Feature :
High Productivity
Heating Mode :
Electric Heating
Material :
Stainless Steel
Package Contents :
1 x Essential Oil Extractor, 1 x Power Cord, 1 x User Manual
Usage :
Extracting essential oils from plants
Voltage :
110V/220V
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • botanical extraction equipment

      TOPTION stainless steel botanical / plant / flower extraction equipment working principe is – By steam distillation or water distillation, the steam passes through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser. After the cooling,oil formed.This is the ideal essential oil extraction steam distillation device for you to make essential oil no matter for laboratory use or batch production.

      The application of TOPTION essential oil steam distillation equipment ( simple design, easy operation, one person can complete whole extraction process, from fresh plant load to get essential oil, high throughtput, efficient extraction process)

      1. Plant Fruits: bouquet, prickly ash, castor, anise, lemon, litsea cubeba, pine tower.
      2. Plant Rhizomes: ginger, aloe, clove, Atractylodes macrocephala.
      3. Plant Mosaic: rose, wild mountain chrysanthemum, lavender, lilac, rosemary, bologna, camphor, see moon grass, mint.

      Technical parameters of 500L 1000L essential oil extraction machine ( 50L 100L 200L 300L is available, and in stock for fast delivery)

      Specification | Model TJE-500L TJE-1000L
      Effective volume 500L 1000L
      Extraction temperature ≤100℃ ≤100℃
      Lifting method Equipped with 1T electric lifting hoist
      Insulation thickness of cylinder 50mm 50mm
      Extraction basket 4mm aperture, 304 material, 1 standard
      Condenser 4m2 8m2
      Collection tank 50L 80L
      Water separator The top glass sight glass comes with an oil outlet valve.
      Demister 304 material, internal baffle, quick-opening hand hole on the top, easy to clean, in line with GMP requirements.
      steel platform Carbon steel design or painting


    • 1. Put in fresh flower / plant in stainless steel material basket, dried flower / plant is also available.
      2. Steam distillation in the stainless steel essential oil extraction tank, there has a sight glass to observe the water level.
      3. Condenser connect with tap water or chiller for efficient condensation.
      4. Mixture of steam and oil vapours are separated in the oil separator.
      5. Get essential oil, and the flower / plant dregs is unload from extraction tank.
