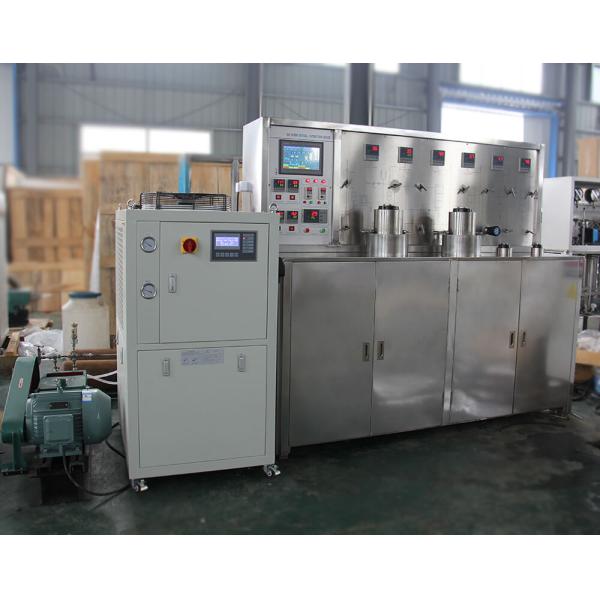

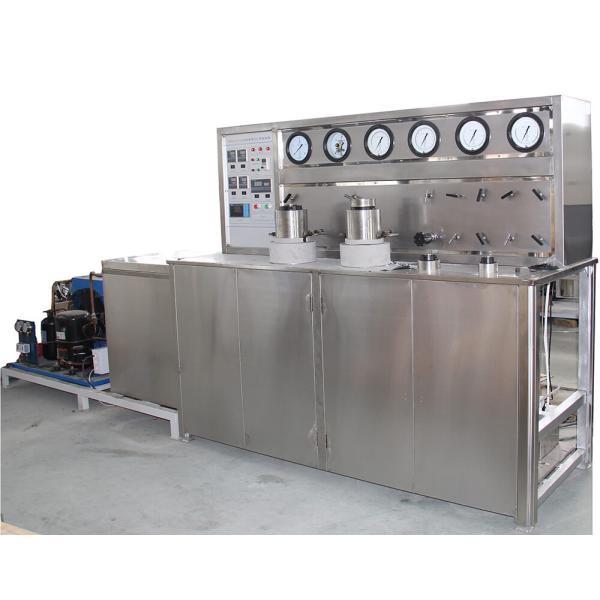

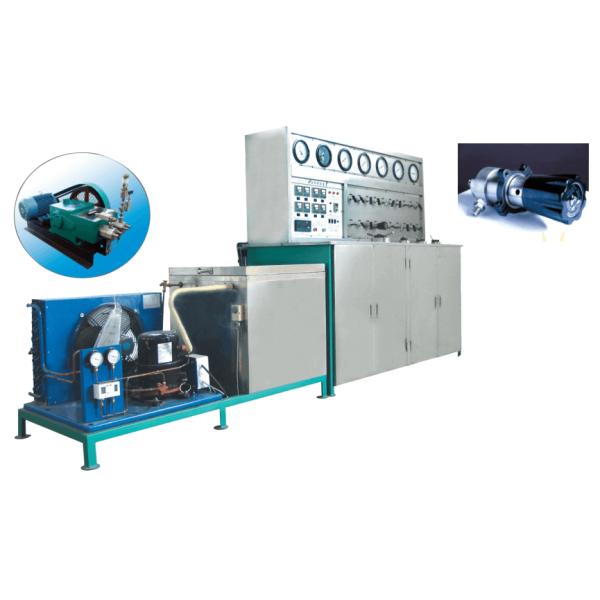

Chemical Supercritical Co2 Extraction Equipment 0-10MPa Pressure
Chemical Supercritical Co2 Extraction Equipment 0-10MPa Pressure
Chemical Supercritical Co2 Extraction Equipment 0-10MPa Pressure
Chemical Supercritical Co2 Extraction Equipment 0-10MPa Pressure
Specifications
Application :
Chemical Extraction
Certifications :
CE, ISO
Extraction Efficiency :
95%
Frequency :
50Hz
Material :
Stainless Steel
Power Source :
Electric
Pressure Range :
0-10MPa
Temperature Range :
0-100°C
Type :
Industrial
Voltage :
220V
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • Supercritical co2 extraction machine

      The Super Critical fluid technology is a new-type separation technology in modern chemical separation.The Super Critical extraction takes CO2 as the solvent.

      As CO2 fluid under Super Critical state has larger density and dielectric constant,larger dissolvability against substances,which can change abruptly when pressure and temperature change, therefore it has not only the selection of dissolvability against some substances, the separation of the solvent with the extracted substances is also easily.

      The Super Critical CO2 extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with high boiling point,and is suitable for fine separation of different components,i.e.Super Critical fine distillation.

      Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products ,foodstuff and medicines.

      Technical parameters of TOPTION brand this set supercritical co2 fluid extraction machine:

      Model

      Extraction capacity

      Pressure

      Temperature range

      Combining form

      TOP220-40-11

      (10+1)L

      400bar

      RT-75℃

      Two extracting pot-two separating pot circulation mode.

      TOP221-40-11

      (10+1)L

      400bar

      RT-75℃

      Two extracting pot-two separating pot one rectifying column circulation mode.

      Main configurations of this set supercritical co2 extraction machine, and parts detail description:

      1. Extraction kettle

      		 Materials 0Cr18Ni9
      Volume 24L Tow sets
      Maximum operating pressure 40MPa

      2. Separation kettle

      		 Materials 0Cr18Ni9
      Volume 10L Two sets
      Maximum operating pressure 25MPa

      3. CO2 high pressure pump

      		 Flow (three-plunger): 0~400L/h Adjustable by frequency conversion
      Maximum operating pressure 40Mpa
      Pump head equipped with cooling system.

      4. Entrainer pump

      		 Flow(double-plunger):1/4—20L/h Mechanical regulation
      Maximum operating pressure: 40Mpa

      5. Refrigeration system

      		 Refrigerating capacity: 15000Kcal/h, air or water cooling.
      Temperature control range: -5℃～+5℃, Meeting technological requirements.

      6. Heat exchange system

      		 Materials 0Cr18Ni9
      Specification Φ14, Φ18
      Maximum operating pressure 40MPa, 30MPa

      7. CO2 stock tank

      		 Materials 0Cr18Ni9
      Volume 20L, One set
      Maximum operating pressure: 16Mpa

      8. Liquid level meter

      		 Materials 0Cr18Ni9
      Maximum operating pressure: 16Mpa

      9. Flow meter and cumulative meter

      		 Specification Metal tube float type flow meter digital display remote transmitting 40~400L/h.
      Digital display unit Indicating instant flow and cumulative flow respectively.

      10. Temperature control system

      		 Control range Adjustable from room temperature to 75℃ (water bath).
      Dynamic temperature control precision: ±1℃, Double-screen digital display.

      11. Safety protection device

      1) The outlet of high pressure pump is equipped with an electro connecting pressure gauge, with set operating pressure and overpressure pump trip protection

      2) Extraction kettle, separation kettle, rectifying column, stock tank and others are equipped with safety valve and overpressure automatic pressure release protection respectively according to their maximum operating pressures.

      12. Purification filter

      		 Material 0Cr18Ni9
      Specification 5L/16MPa

      13. Feed cylinder hoisting system

      		 The feed cylinder hoisting system is equipped with an electric block, for loading and unloading of feed cylinder.

      14. Pipeline

      1) Valves and pipe fittings are DW14 and DW18 respectively.

      2) Containers, valves, pipe fittings and pipelines which contact with fluid are made from 0Cr18Ni9 stainless steel. The valve are made by heat treatment, firm and durable.

      Related essential oil molecular distillation equipment:

    • Technical parameters of supercritical co2 extractor machine :

      Model

      Extraction capacity

      Pressure

      Temperature range

      Combining form

      TOP220-40-11

      (10+1)L

      400bar

      RT-75℃

      Two extracting pot-two separating pot circulation mode.

      TOP221-40-11

      (10+1)L

      400bar

      RT-75℃

      Two extracting pot-two separating pot one rectifying column circulation mode.

      TOP220-40-20

      (10+10)L

      400bar

      RT-75℃

      Two extracting pot-two separating pot circulation mode.

      TOP221-40-20

      (10+10)L

      400bar

      RT-75℃

      Two extracting pot-two separating pot one rectifying column circulation mode.

      Main features of TOPTION brand supercritical fluid extraction natural cbd oil:

      1.The extractor is equipped with a quick opening, the quick opening mechanism adopts special design (the technology introduced from US), and the switch kettle is portable and fast.

      2. The extractor and separator are made of stainless steel integral forgings with high strength and long life.

      3. Equipment has reliable security: in addition to the pressure device has enough safety margin, the extractor, separator, evaporator are equipped with safety relief valve, and CO2 pump discharge has pressure limited protection, the whole units will stop running while over pressure.

      4. Computer centralized control, 17 inches color LCD touch screen display and control, high speed, high performance microprocessor, cooperate with the company self-developed software can realize multi-channel signals at the same time of test, record, display, alarm and control output, and has USB interface, can be inserted U disk backup history data, or connect printer to print history curve and data. (This function is optional).

      5. Use frequency converter to adjust CO2 flow, which is convenient for process and energy saving.
