Dry Straight Line High Carbon Steel 12m / S Wire Drawing Line
Dry Straight Line High Carbon Steel 12m / S Wire Drawing Line
Dry Straight Line High Carbon Steel 12m / S Wire Drawing Line
Dry Straight Line High Carbon Steel 12m / S Wire Drawing Line
Specifications
Brand Name :
OLT
Model Number :
OLT-SLWDM-01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10sets one month
Delivery Time :
15days after deposit
Packaging Details :
nude packing
Product name :
Dry Straight Line High Carbon Steel Wire Drawing Machine
Inlet Wire  Dia. :
Φ8.0mm
Outlet Wire Dia. :
2-6mm
Tensile strength :
≤600mpa
Max speed :
12m/s
Dia.of capstan :
560mm
Description

Dry Straight Line High Carbon Steel Wire Drawing Machine

Dry Straight Line High Carbon Steel Wire Drawing Machine Details

(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.

(2) It’s kind of high-efficient machine with easy operation, high degree of automation.

(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading

(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire

(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.

(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.

Dry Straight Line High Carbon Steel Wire Drawing Machine Composition

(1) LZ5/560 straight line wire drawing machine

(2) ZL320 tension frame

(3) Man-machine interface operation display screen

Dry Straight Line High Carbon Steel Wire Drawing Machine Driving Form

No. 1-4 adopts hard tooth surface gear reducer and combination of narrow V belt drive

The rest adopt double cascade group narrow V belt transmission

Each end with efficient pneumatic brake, emergency stop continuous wire.

Dry Straight Line High Carbon Steel Wire Drawing Machine Reducer

(1)The service life reducer is guaranteed for 5 years

(2)Reducer adopts special reducer for wire drawing machine

(3)The reducer adopts planetary reducer, the transmission is especially stable

(4)The input shaft adopts unloading device and does not bear radial force.

Dry Straight Line High Carbon Steel Wire Drawing Machine Rack Form

The main frame is steel structure welding parts

In front of the frame is equipped with water, electricity and gas operating panel and instrument for emergency braking

Paint can be done according to customer requirements

Safety cover can be provided

Straight line wire drawing machine parameter:

Capstan diameter 560mm
Capstan number 11
Inlet wire diameter Φ8.0mm
Outlet wire diameter Φ2.0mm-Φ6.0mm
Tensile strength ≤600mpa
Total compressibility 90.53%
Average compressibility 25.52%
Max. Speed 12 m/s
Power 18.5KW*11 (Frequency conversion motor )+22KW*11(inverter)
Mold size Φ40mm×25
Block type Vertical ,tilted
Take-up wire Elephant trunk type take-up system
Die box The mould box is composed of mixer and water cooling(4 set)
Drawing drum Cast steel ZG45, surface surfacing and spraying tungsten carbide, HRC60. Surface roughness less than 0.8mm.
Mold box cooling The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good.
Tension frame Internal tension frame.
Main frame Welding of steel plate and square pipe.
Stop brake Pneumatic brake
Vacuuming design Reserve suction hole
Lighting Each stand with separate lighting.
Touch screen Siemens
Low voltage electrical appliances Delixi


Straight line wire drawing machine features:

1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4) As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5) Good cooling system, final wire quality is very good.

(1)The service life reducer is guaranteed for 5 years

(2)Reducer adopts special reducer for wire drawing machine

(3)The reducer adopts planetary reducer, the transmission is especially stable

(4)The input shaft adopts unloading device and does not bear radial force.

Wire Drawing Production Line:

Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up

Machine Packing & Loading:

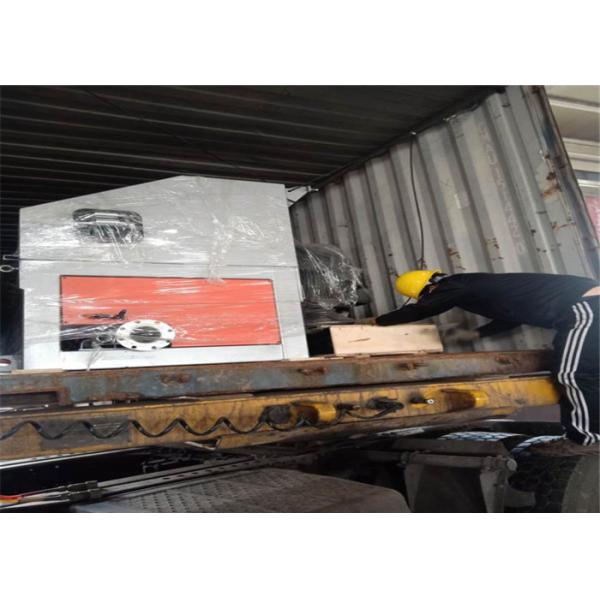

I. plastic film or bubble film which protect machine from rust on the humid environment on sea
II. Spare parts are in wooden box
III. All devices will be fasten in container to avoid the shake on road

Our company has advanced production equipment, first-class technology and complete quality management system. With good quality, reasonable price and excellent service, we have exported to USA, Mexico, New Zealand, Middle East, Italy, Turkey, Southeast Asia, Singapore,etc.

Company informations:

Hebei Oulite Import & Export Trading Co.,Ltd is engaged in producing and distributing wire mesh making machine products. We can provide you chain link fence machines, barbed wire machine, razor barbed wire machine, welded mesh rolling machine, welded mesh panel machine, nail making machine and so on. Our factory director,Mr Wang Fucai is the patent holder of new type razor barbed wire in China(Patent Certificate ZL02235742.4).
