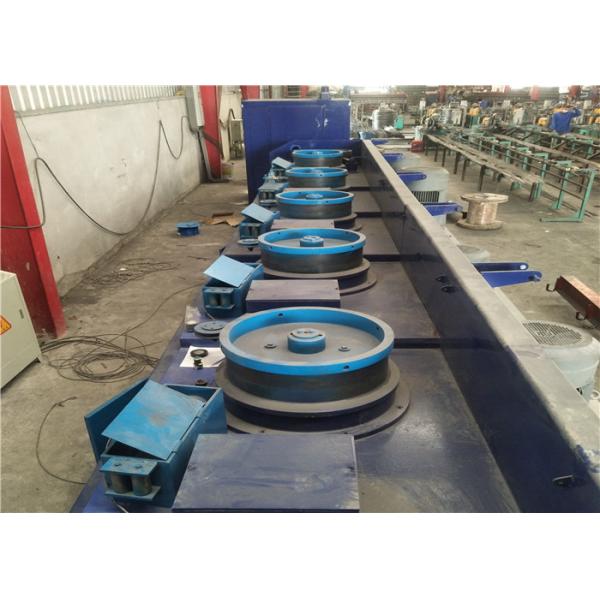

Fully Automatic Straight Line Wire Drawing Machine

Wire Drawing Machine Brief Introduction

Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm,with Siemens PLC & inverter control system to assure high speed & stable operation.

Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.

Wire Drawing Machine Technical Parameters:

Maximum wire diameter: 6.5mm

Drawing specifications: minimum 2mm

Maximum line speed: 16.8m / s

Power: 18.5KW per capstan

Roll weight: 1 ton

Speed regulation mode: variable frequency control

Wire Drawing Machine Drawing Dies

The drawing dies, besides the finished rolls, all rolls about 8 ° tilt to keep the wire reel maximum amount of plot lines and wire straight toward. Tuning rollers apply anti-pull the wire, to reduce mold drawing force.

Wire Drawing Machine Performance

1. Error 0.1% accurate meter; fixed length automatic deceleration and parking; disconnection detection and automatic stop;

2. Any reel positive and negative jog and left and right linkage; various fault information and processing information display;

various motion information monitoring.

3. The mold-matching process, after the mold is worn, is automatically compensated by tuning, and it is not easy to break the wire.

4. With a jumper device can be freely removed from the reel to adapt to different processes.

Wire Drawing Machine Specification

Wire Drawing Machine Advantage

1. Easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Running in a high automatization and intellectualization,no pollution
4. As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet

the wide range of technology and high speed drawing.

Wire Drawing Machine After Sales Service

1. Test the machine before shipment
2. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date
3. Within guarantee time, if any components are broken under normal condition, we can change for free
4. We can send our best technician to buyer’s factory for installation, debugging and training
5. Buyer need to undertake double-way air tickets, Visa, Worker salary USD120.0/ Day, Accommodations
