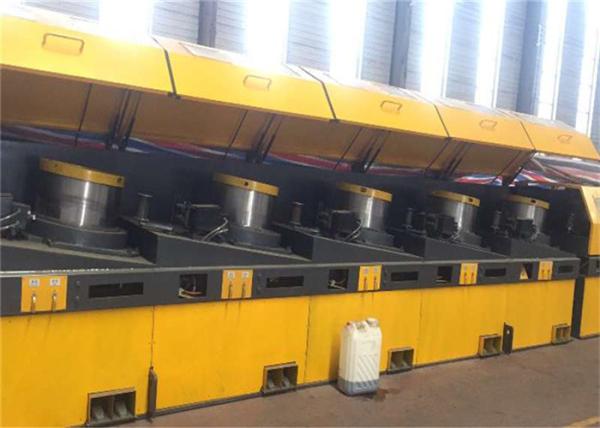

I Shape Wheel Wire Collection 4.0mm Straight Line Wire Drawing Machine
I Shape Wheel Wire Collection 4.0mm Straight Line Wire Drawing Machine
I Shape Wheel Wire Collection 4.0mm Straight Line Wire Drawing Machine
I Shape Wheel Wire Collection 4.0mm Straight Line Wire Drawing Machine
Specifications
Brand Name :
OLT
Model Number :
OLT-SLWDM-01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10sets one month
Delivery Time :
15days after deposit
Packaging Details :
nude packing
Product name :
I-Shape Wheel Wire Collection Straight Line Wire Drawing Machine
Inlet Wire  Dia. :
6.5mm
Outlet Wire Dia. :
4.0mm
Number of drawing capstan :
8
Motor :
Inverted motor
Single Power :
11kw
Max speed :
12m/s
Dia.of capstan :
400mm
Description

I-Shape Wheel Wire Collection Straight Line Wire Drawing Machine

1. Straight Line Wire Drawing Machine Description:

(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.

(2) It’s kind of high-efficient machine with easy operation, high degree of automation.

(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading.

(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire

(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.

(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.

2. Straight Line Wire Drawing Machine Parameter:

Number of mould
6
5-11
9-12
9-12
Input diameter mm
6.0-5.5
3.5
2.8-2.5
2.5
Output diameter mm
3-2.5
3.0-1.2
2.5-0.5
2.3-0.7
Speed m/min
280-300
160-350
500-1200
500-1200
Motor kw
120KW
30KW
17KW
17KW
Voltage:
380V 50HZ
380V 50HZ
380V 50HZ
380V 50HZ
Dimension mm
8000*1300*1100
2400*1400*1200
2000*1500*1800
2000*1500*1800
Weight T
4.2T
2.5T
1.8T
1.8

3. Straight Line Wire Drawing Machine Flows:

Steel in coil →Pull up wire rack→Derusting machine→Bepowder→Straight Line Wire Drawing Machine→Automatic take-up

4. Straight Line Wire Drawing Machine Application:

Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm,with Siemens PLC & inverter control system to assure high speed & stable operation. Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.

I Shape Wheel Wire Collection 4.0mm Straight Line Wire Drawing Machine

I Shape Wheel Wire Collection 4.0mm Straight Line Wire Drawing Machine
