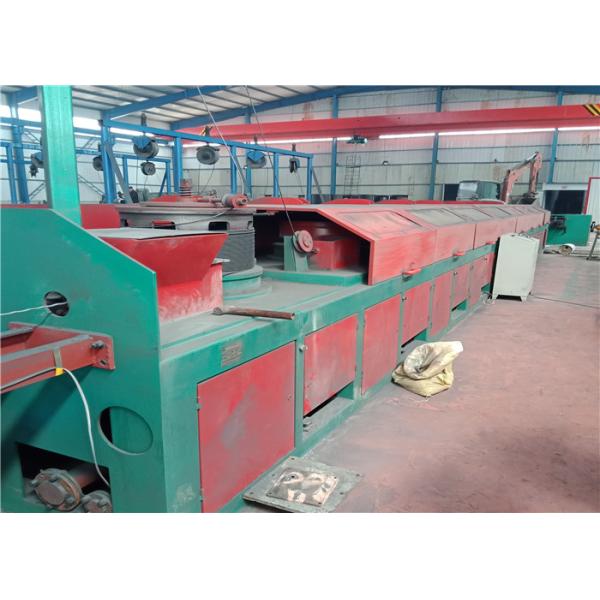

4. Wire Drawing Production Line:

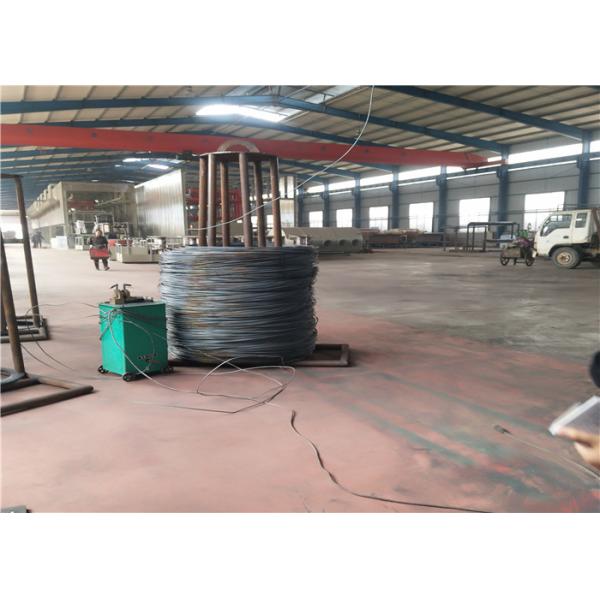

Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up

5. Straight line wire drawing machine frame:

The frame stands on the special leveling welding plate, weld the steel as base of the bottom plate. Then do the low temperature tempering and vibrating treatment to eliminate the welding stress.Cold machining precision is the important factor to realize the high-speed drawing. Do the milling process for the bottom plane and connecting side of the frame. Then clamp the main hole and screw hole of the mounting surface.Machining ended frame closures group in the painting shop, pain the anti-rust primer and do the scraping and deburring.Lastly, paint second time topcoat painting according to customer's color, wait for assembling.

6. Straight line wire drawing machine capstan structure:

Material is ZG45 steel casting blank body, after quenching and tempering treatment, HB250. Dig 5mm depth on the working surface of capstan, then melt the tungsten, cobalt carbide, overlay welding. Then rough lathing, precision lathing, grinding and polishing, surface roughness can reach to 0.08μm, hardening layer height 300mm, depth more than 3mm, HRC 58-62.

All the surface of capstan is processed by lathe, non-contact and operation surface's roughness is 6.3μm, capstan inner wall sprays zinc, can effectively reduce the formation of cooling water scale.

Capstan spindle hole against axis beating up tolerance is ±0.03μm, capstan dynamic balance level is G6.3.All the surface of capstan is processed by lathe, non-contact and operation surface's roughness is 6.3μm, capstan inner wall sprays zinc, can effectively reduce the formation of cooling water scale.Capstan spindle hole against axis beating up tolerance is ±0.03μm, capstan dynamic balance level is G6.3.

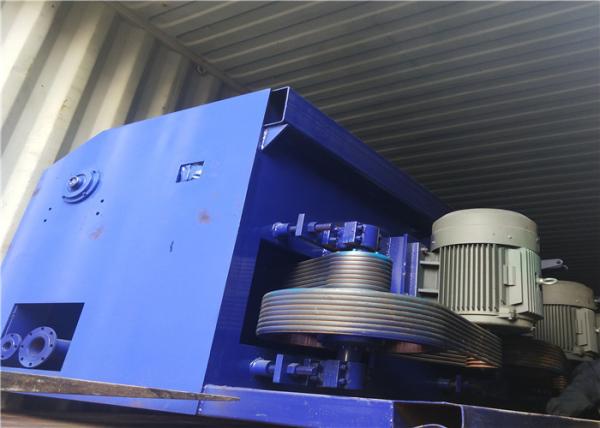

7. Packing:

1. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea.
2.The machines are putted in strong iron sheet case/wooden case,which is free of fumigation, lined with metal wire if necessary.

8.Company informations:

Hebei Oulite Import & Export Trading Co.,Ltd is engaged in producing and distributing wire mesh making machine products. We can provide you chain link fence machines, barbed wire machine, razor barbed wire machine, welded mesh rolling machine, welded mesh panel machine, nail making machine and so on. Our factory director,Mr Wang Fucai is the patent holder of new type razor barbed wire in China(Patent Certificate ZL02235742.4).
