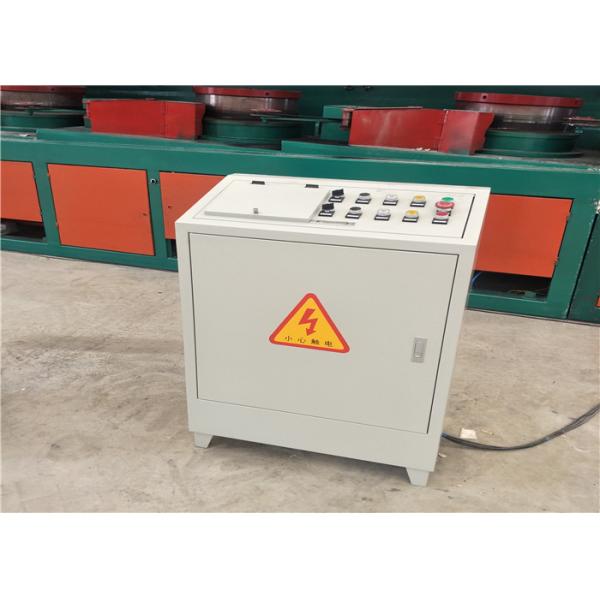

Straight line type wire drawing machine with elephant trunk wire take up machine

The straight line wire drawing machine is a high end wire drawing machine developed and produced

by the digestion and absorption technology.

Straight line type wire drawing machine mechanical description

Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm, with Siemens PLC & inverter control system to assure high speed & stable operation.

Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc.

And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.

Straight line type wire drawing machine working flows and automation

Steel in coil → Pull up wire rack→ Derusting machine→ bepowder→ Straight Line Wire Drawing Machine→ Automatic take-up

Straight line type wire drawing machine main features

1. Easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3). Running in a high automatization and intellectualization,no pollution
4. As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5. Good cooling system, final wire quality is very good.

Straight line iron wire drawing machine specification

Straight line iron wire drawing machine technology

Error 0.1% accurate meter; fixed length automatic deceleration and parking; disconnection detection and automatic stop;

any reel positive and negative jog and left and right linkage; various fault information and processing information display;

various motion information monitoring. The mold-matching process, after the mold is worn, is automatically

compensated by tuning, and it is not easy to break the wire. And with a jumper device can be freely removed from

the reel to adapt to different processes.

Straight line iron wire drawing machine​ after sales service

1. Test the machine before shipment
2. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date
3. Within guarantee time, if any components are broken under normal condition, we can change for free
4. We can send our best technician to buyer’s factory for installation, debugging and training
5. Buyer need to undertake double-way air tickets, Visa, Worker salary USD100.0/ Day, Accommodations

Company Introduction

Hebei OLT wire mesh machine company with 55 employees, 9000 square meters workshop,
more than 30 years experience in metal wire mesh fence. All these help us to be the leading manufacturer
in Metal wire Mesh and wire mesh machinery field, we are mainly supplying wire drawing machine,
galvanized wire production line, chain link fence machine, wire mesh welding machine,
razor barbed wire making machines, etc.
We can supply 100% right and reasonable suggestions for our new customers.
Welcome to visit our factory to enable our mutual cooperation.
