Steel wire galfan hot diped galvanized wire production line

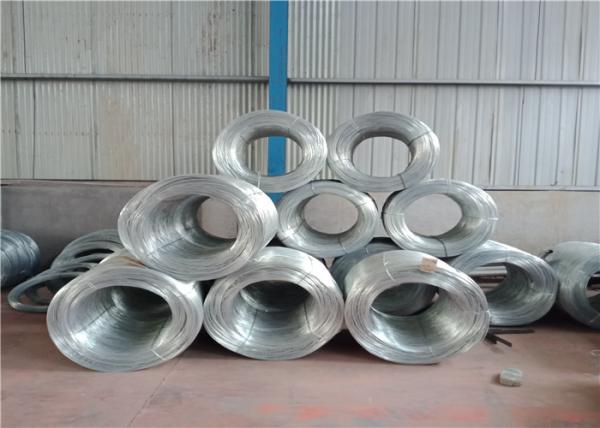

Galvanized Iron Wire is designed to prevent rusting and shiny silver in color. It is solid,durable and extremely versatile, it is widely used by landscapers, craft makers, building and constructions,ribbon manufacturers, jewelers and contractors.Its aversion to rust makes it extremely useful around the shipyard,in the backyard, etc.
Galvanized wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g /sqm. With zinc coating thickness, corrosion resistance and other characteristics.

Steel wire galfan hot dipped galvanized wire production line technology:

1. Low-carbon steel wire: in accordance with the standard of hot-dip galvanizing of the corresponding low-carbon steel wire.

2, product specifications: Φ1.6 ~ 4.0mm,

3. Tensile strength: low carbon 450 N/mm2 ~ 550 N/mm2

4. Thickness of zinc layer: galvanized 40~80/150~ 300 g/m2

5, production speed: D / V40 ~ 60 (maximum 80);

6, the number of steel wire: 12;

7, steel wire spacing: pre-treatment 35mm; zinc 45mm

8, the length of the production line tooling: about U-shaped structure 140m;

9, heating energy: mixed gas or converter gas, electric energy

10, power requirements: ~ 380V, 50Hz

Steel wire galfan hot dipped galvanized wire production line work theory:

1), the steel structure of the furnace body adopts the overall frame dimensions: L26000*W2400*H1800(mm)

2), the net width of the furnace: 1250 (mm), the distance of the steel wire in the furnace; 35 mm;

3), fuel type: mixed gas or converter gas (heat value: ≥ 1250 KCal)

4), contact pressure: normal 0.012MPa, fluctuation ≤ 5% pressure value.

5), contact pipe diameter: DN80

6), using a four-stage assembly of countercurrent furnace type, direct-fired type and premixed burners are used together to control the atmosphere and pressure in the furnace;

7), the number of burners: 24 sets, the maximum operating temperature: 800 ~ 1000 ° C

8), outdoor wall temperature ≤ 45 ° C

Working process:

"工“”shaped wheel release line→ gas flame heat treatment annealing→steel wire air cooling→tempering cleaning→turbulent flow type smokeless cleaning→water cleaning→coating aid→drying→hot galvanizing→slanting wiping→cooling→nitrogen wiping→ Water cooling→ vertical wire take-up machine

Our service:
1.Test the machine before shipment

2.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.

3.Within guarantee time, if any components are broken under normal condition, we can change for free.

4.We can send our best technician to buyer’s factory for installation, debugging and training.Buyer need to undertake double-way air tickets,Visa,Worker salary USD120.0/ Day,Accommodations.

9.FAQ

Q:Can you make a proposal for me?

A:Yes,our technician will make a reasonable proposal for you

Q:What information should i give to you to make proposal?

A:(1).Material:low carbon or high carbon

1. Wire diameter:mm

2. Zinc coat thickness:g/m2

3. Wire usage:for which application

4. Energy:natural gas,LPG,electricity?

5. Workshop size:L*W

   Q:How is the delivery time

   A:6 months after receiving down payment

   Q:How is the payment:

   A:L/C T/T

   30%T/T as deposit

   70% balance payment when delivery via L/C at sight or T/T

   Q:We also need drawing machine,can you supply that?

   A:Yes,drawing machine is the first step of the galvanized wire production line,we are also manufacturing it.

   Q:How about after sales service

   A:Quality guarantee for one year,technical support for whole equipment lifetime

Our company information:

Hebei Oulite wire mesh products Co.,Ltd ,the China supplier full automatic chain link fence machine

Hebei Oulite Import & Export Trading Co.,Ltd is engaged in producing and distributing wire mesh making machine products. We can provide you chain link fence machines, barbed wire machine, razor barbed wire machine, welded mesh rolling machine, welded mesh panel machine, nail making machine and so on. Our factory director,Mr Wang Fucai is the patent holder of new type razor barbed wire in China(Patent Certificate ZL02235742.4).
