Specifications
Brand Name :
OLT
Model Number :
CS-A2
Certification :
ISO9001
Place of Origin :
Hebei ,CHina
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10sets/week
Delivery Time :
within 7days
Packaging Details :
waterproof paper inside ,wooden box for LCL.
Name :
High capacity barbed wire fence making machine with normal twist style
Twist style :
mormal twist
main wire diameter :
2.0-3.0mm
speed :
900m/hour (4'' barb distance )
power :
3KW
use :
produce barbed wire fence
voltage :
customized
Description

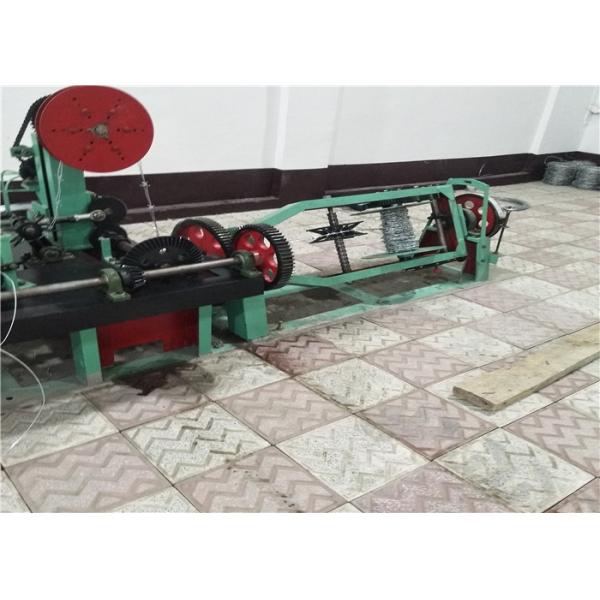

Fast speed barbed wire fence making machine with normal twist style

It is advantage is high working speed and efficiency ,can produce barbed wire with different wire diameter, different wire materials-(galvanized wire and pvc coated wire)

The barbed wire machine is divided into :
1. Double wire barbed wire machine (CS-A)
2. Single wire barbed wire machine (CS-B)
3. Reverse twist barbed wire machine (CS-C)

Barbed wire machine is used to produce barbed wire, which is widely used for playground fence, animal husbandry,safety protection functions,national defense,agriculture,expressway, etc.
Barbed wire machine model:
item normal twist reverse twist single twist
main wire diameter 2.0-3.0mm 1.6-2.8mm 2.0-3.2mm
barb wire diameter 1.8-2.4mm 1.6-2.4mm 1.8-2.4mm
bard distance 3/4/5/6 inch 3/4/5/6inch 3/4/5/6inch
capacity/hour 900m/hour(4inch) 600m(4inch) 600m(4inch)
power 3KW 3KW 3KW

CS-A: Normal double twisted barbed wire machine

The power is 3 kw, voltage is 380V/50HZ (can be customized), main machine size is 2000 mm*1200mm*1400mm,auxiliary is 2000mm *650 mm*800mm, can produce barbed wire with main wire 2.0mm-3.0mm, barb wire 1.8mm-2.4mm. More details, please check the following table:

Model Normal double twisted barbed wire machine
Power(KW) 2.2
Voltage (V) 380V
Size(mm)

Main: 2000 *1200*1400

Auxiliary: 2000 *650*800
Weight(kg) 1000
Main wire diameter(mm) 2.0-3.0mm
Barb wire diameter(mm) 1.8-2.4mm

Iron wire streching

resistance(N/MM2)

 400-600
Barb wire distance(inch) 3' 4' 5 6'
Production(M/h) 675 900 1125 1350
Production(kg/h)

120 (main wire 2.8mm. barb wire 2.2mm)
FAQ

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experience

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.

Company introduction:

Hebei Oulite wire mesh products Co.,Ltd

China supplier full automatic chain link fence machine

Hebei Oulite Import & Export Trading Co.,Ltd is engaged in producing and distributing wire mesh making machine products. We can provide you chain link fence machines, barbed wire machine, razor barbed wire machine, welded mesh rolling machine, welded mesh panel machine, nail making machine and so on. Our factory director,Mr Wang Fucai is the patent holder of new type razor barbed wire in China(Patent Certificate ZL02235742.4).
