Specifications
Brand Name :
OLT
Model Number :
OLT-PTWDM-01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15sets one month
Delivery Time :
15days after receiving bank slip
Packaging Details :
Wooden box for less container loading, plastic outside for full container loading
product name :
Full-automatic pulley wire drawing machine
Material :
Iron wire
Input wire diameter :
6.5mm
Output wire diameter :
3.0mm
Speed :
280m/min
Warranty :
one year
Description

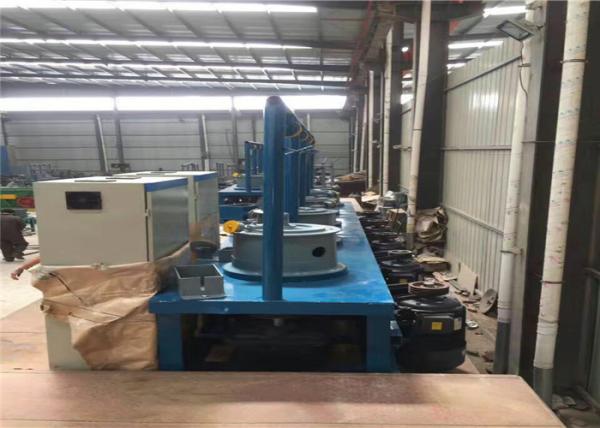

Full-automatic pulley wire drawing machine


Product Description:

pulley wire drawing machine is a ideal equipment drawing low carbon steel wire, medium carbon steel wire, high carbon steel wire, as well as cooper, aluminum, and alloy wire.
This machine is widly use for drawing wire in the factories such as wire steel factory, metal mesh factory, nail making factory etc.

Pulley wire drawing machine details:

Model Unit 560 450 350
Inlet wire Tensile Strength kg/mm2 δ>110 128 δ>140
Max Dia. of Inlet Wire mm 6.5 3.4 2.5
Min Dia. of Outlet Wire mm 2 1 0.75
Drwaing Psses/Dia. of Block times/mm 1-6/560 1-7/450 1-6/350
Max Average Compressibility % approx 30 20 21
Designed Total Compressibility % approx 78-88.5 77.9 78
Max Speed of Block m/min 245 346.9 200
Motor Power/Block kw 18.5-30 7.5-11 7.5-11
Weight kg 2000 1500 1000
Overall Dimensions mm 1700x115x1750 1520x81x1700 1400x800x1500

Features:

Pulley wire drawing machine can drawing of low carbon steel wire,medium carbon steel wire and high carbon steel wire.With high stable performance,convenient operation and maintenance.

Application:

The finished black iron wire is widely used for construction wire,
galvanized wire,spring wire,cable wire,welding wire,steel core wire and alloy wire, nails making, wire mesh, binding wire, cutting wire, annealing wire etc.

Our Service :

a. Pre-Sales Service:


Inquiry and consulting support
Design appropriate products according client's requirments
View our Factory.

b. After-Sales Service:


One year warranty for whole machines.
Two years for the capstan.
Low charge for continue maintenance when warranty is expired.
Free training to how to install the machine, how to use the machine.
Engineers available to service machinery overseas.

FAQ :

Q: How many years are your company engaged in the wire mesh machines?

A: More than 25 years. We have our own technology develop department and testing department.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experience

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.

Company informations:

Hebei OLT wire mesh machine company with 55 employees,9000 square meters workshop,more than 30 years experience in metal wire mesh fence.Over the years, the company has been scientifically managed, constantly updated in technology, and won a good social reputation with excellent product quality.The products produced by our factory are recognized by our customers with “high quality and low price”. The products are sold to more than 30 provinces, cities and autonomous regions and exported to more than ten countries including the United States, Japan, Germany, South Korea.
