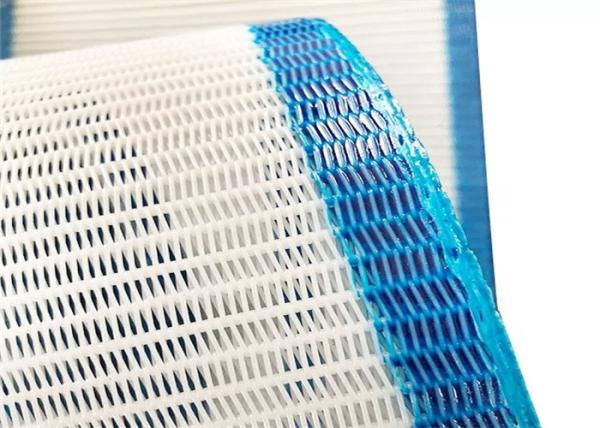

White Polyester Spiral Dryer Mesh Belt Special For Compound Machine With 3cm Glue Edge

Polyester Mesh Belt Introduction

Polyester spiral mesh belts have a spiraled continuous and seamless screen structure

which is ideal for applications in which a seam would be unmeet due to mechanical loads

Meanwhile, the unique spiral linked weave type makes the polyester spiral mesh belts flexible in warpage

and the heat-setting treatment ensures the spiral belts durability and a long, productive life without deformation

easy to install clean and maintains

This kind of synthetic spiral fabrics are widely used as filter belts, dryer screen belts or conveyor belts

in dewatering processes with fibrous products, or for industry sludge dewatering and drying

nonwoven forming, and thermal applications include drying of veneers manufacture of gypsum plasterboard

or for multi-stage dryers in the foodstuff processing etc

Synthetic polyester spiral dryer mesh belt fabrics
Huading's polyester spiral mesh belts can be made of 100% Polyester or anti-hydrolysis Polyester for

high temperature and high humidity, or 100% PPS for high temperature 150-240°C working condition

other kinds of material can be customized for antistatic dirt-repellent or enhanced abrasion-resistance performance etc

Various types in different yarn diameter 0.5mm-1.1mm, small, medium and large spiral rings

flat or round yarn filled or unfilled are all available to achieve optimal air permeability rates tracking stability

high throughput rate, and excellent filtration efficiency

• Polyester spiral dryer fabric is made of 100% monofilament polyesteras raw material
• Minimum width: 10 cm
• Minimum length: 1 m
• Working temperature +150°C to -75°C in dry conditions and +70°C in wet conditions

Polyester spiral press filter belt specification:

Polyester Mesh Belt Data Sheet

Polyester Mesh Belt Advantage

1 Flat surface, not easily cracked
