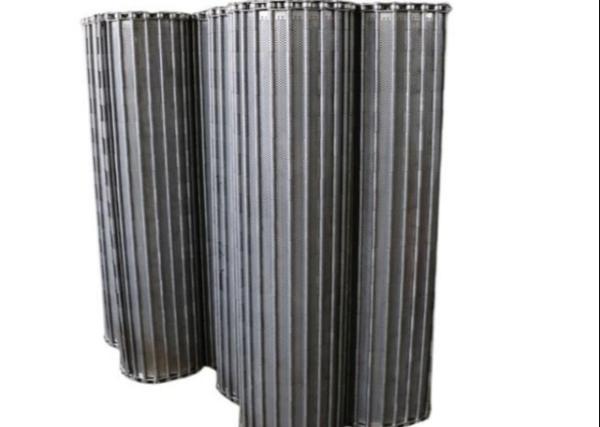

316SS Spiral Mesh Conveyor Belt For Glass Quenching And Washing Vegetables
316SS Spiral Mesh Conveyor Belt For Glass Quenching And Washing Vegetables
316SS Spiral Mesh Conveyor Belt For Glass Quenching And Washing Vegetables
316SS Spiral Mesh Conveyor Belt For Glass Quenching And Washing Vegetables
Specifications
Brand Name :
Reking
Model Number :
rod conveyor belt
Certification :
CE SGS
Place of Origin :
China
MOQ :
3 meters
Price :
Negotiable
Payment Terms :
T/T L/C Western Union Paypal
Supply Ability :
5000 meters per month
Delivery Time :
up to your quantity
Packaging Details :
plywood box
Product name :
Cooling dry food 304 Stainless Steel Spiral Mesh Belt
Keyword :
rod wire conveyor belt
Material :
201/304 stainless steel
Main feature :
heavy load
Application :
havey product conveyor
Package :
Plywood box
Width :
0.2-4.0m
Wire diameter :
1 mm to 3 mm
Chain pitch :
19.05mm, 25.4mm, 31.75mm, 38.1mm, 50.8mm, 76.2mm
Rod pitch :
5 to 30 mm
Description

316 Stainless Steel Spiral Mesh Belt Glass Quenching and Washing Vegetables

Introduction Spiral Mesh Belt

Flat conveyor belt is formed by connecting a straight rod and a metal sheet, and the two ends of the straight rod are welded or seamed. Can provide edge baffle and lateral baffle.

The width of the mesh belt is determined

Material
carbon steel, SUS201 304 316
Wire diameter
1 to 3 mm
Rod diameter
4 to 12 mm
Spiral wire pitch
3 to 20 mm
Chain pitch
19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
Width
0.2m to 4m
Rod pitch
5 to 30 mm

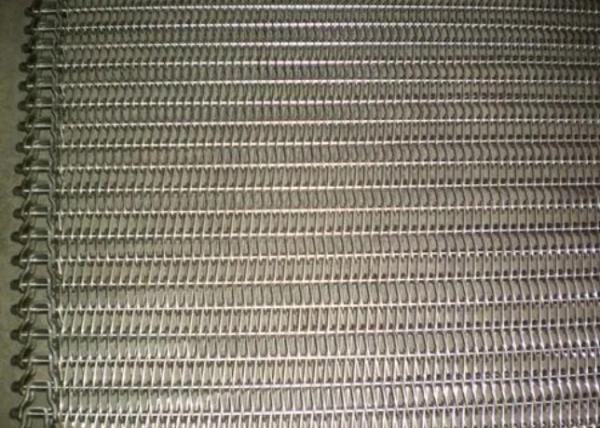

Description Spiral Mesh Belt:

Spiral wire link mesh belts, also referred to as balanced weave belts,Balance weave is an economical, general use belt for medium load applications from 40 - 1500 degrees F. It is the most commonly used wire mesh conveyor belt worldwide including many food processing.Ranging from super strong for conveying heavy loads over large widths or conveying very hot products to very dense weaves for small products, unsorted goods or products requiring stable support applications (from draining to cooling) as well as industries ranging from ceramic, glass and metalworking.

316SS Spiral Mesh Conveyor Belt For Glass Quenching And Washing Vegetables316SS Spiral Mesh Conveyor Belt For Glass Quenching And Washing Vegetables

316SS Spiral Mesh Conveyor Belt For Glass Quenching And Washing Vegetables
