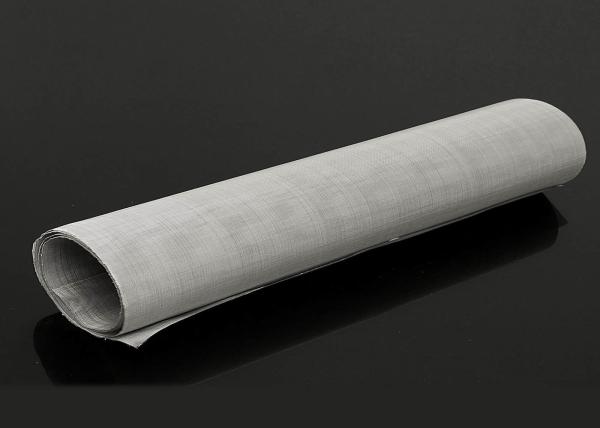

304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh
304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh
304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh
304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh
Specifications
Brand Name :
R&K
Model Number :
Dutch-05
Certification :
SGS
Place of Origin :
Hebei,China
MOQ :
1 squaremeter
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union，PayPal
Supply Ability :
1000 squaremeter per week
Delivery Time :
5-8 work days
Packaging Details :
Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Product name :
304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh
Type :
Weave wire mesh
Hole shape :
Square shape
Application :
Filter
Wire diameter :
0.9*0.71- 0.025*0.015
Feature :
Acid-resisting
Mesh Count :
24 X 110 Mesh
Keywords :
stainless steel sutch mesh
Description

304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh

The mat mesh is a fine-grained dense mesh, but generally the diameter of the warp yarn is larger than the diameter of the weft yarn. The contrast weave is called a contrast weave because the weft yarns are much thicker than the warp yarns. In order to achieve the filtration density that cannot be achieved by the square mesh.

Product name 304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh
Mesh Count 24 X 110 Mesh
Type stainless steel sutch mesh
Material 304
Weave Plain weave ,twill weave
Length 30 meters
Width 1 meter
Hole 97um
Wire diameter 0.355*0.25um
Feature durable
Thickness 0.855mm

Description of stainless steel Dutch woven wire mesh:

Woven wire cloth/Dutch woven material (reverse Dutch woven wire mesh): Reverse Dutch woven wire mesh made of stainless steel wire 304, 304L, 316, 316L, duplex stainless steel, 904L, etc.

Application of 60um stainless steel Dutch wire mesh:

Anti-load applications are widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research, transportation and other industries.

Features of stainless steel Dutch wire mesh:

It has fine filtering and a highly durable, smooth and shiny surface.

Stainless steel Dutch mesh parameters:

plain weave Dutch mesh
Number Mesh(warpxweft) Wire diameter Aperture Weight
(warpxweft) (um) (kg/m2)
32# 8 x 62 0.63mm x 0.45mm 300 5.42
40# 10 x 79 0.50mm x 0.355mm 250 3.16
48# 12 x 64 0.58mm x 0.40mm 280 2.9
55# 14 x 88 0.40mm x 0.30mm 180 2.54
76# 19 x 140 0.315mm x 0.20mm 140 1.88
80# 20 x 300 0.35mm x 0.20mm - 3.6
95# 24 x 110 0.355mm x 0.25mm 120 2.45
100# 25 x 140 0.28mm x 0.20mm 100 1.95
120# 30 x 150 0.25mm x 0.18mm 80 1.68
140# 35 x 175 0.224mm x 0.16mm 71 1.52
160# 40 x 200 0.20mm x 0.14mm 60 1.4
180# 45 x 250 0.16mm x 0.112mm 56 1.09
200# 50 x 250 0.14mm x 0.11mm 53 1.04
220# 55.5 x 280 0.14mm x 0.10mm 50 0.92
240# 65 x 330 0.11mm x 0.08mm 36 0.71
280#(1) 70 x 350 0.11mm x 0.08mm 35 0.72
280#(2) 70 x 385 0.11mm x 0.07mm 32 0.75
300# 78 x 700 0.11mm x 0.08mm 30 1.39
315#(1) 80 x 400 0.10mm x 0.065mm 40 0.62
315#(2) 80 x 600 0.10mm x 0.06mm - 0.74
315#(3) 80 x 800 0.15mm x 0.04mm - 0.77
320# 81 x 780 0.10mm x 0.07mm 30 1.22
354# 90 x 550 0.12mm x 0.05 - 0.667
Width:1m-1.6m
