JINTE Galvanized Steel CE Welded Wire Mesh Machine
JINTE Galvanized Steel CE Welded Wire Mesh Machine
JINTE Galvanized Steel CE Welded Wire Mesh Machine
JINTE Galvanized Steel CE Welded Wire Mesh Machine
Specifications
Brand Name :
JINTE
Model Number :
JT-DNW-1
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 9000-2500/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets/month
Delivery Time :
10 work days
Packaging Details :
Welded wire mesh machine bracket and auxiliary equipments will be with plastic package, spare parts in carton box
Wire Diameter :
1.2 - 2.3 mm mm
Width :
1.2m
Motor :
2.2kw
Wight :
2000kgs
Cooling system :
water cooling
Port :
Tianjin
Description

Automatic Good price Welded wire mesh machine With High speed Galvanized steel

Product Description

Galvanized Steel Wire Mesh Welding Machine consists mainly of main machine for welding, material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc.

Technical parameter

Model: a.JT-DNW-1 b.JT-DNW-2 c.JT-DNW-3

Wire Diameter:

a.0.4-0.65mm b.0.65-1.8mm / 0.8-2mm / 0.65-2mm c.1.0-2.2mm / 1.2-2.5mm

Aperture/Pitch:

a.1/4",1/2" b.1/2", 1", 1.5" ,2",2.5",3" c.1", 2", 3", 4" ,5",6" d.6.25, 12.5mm e.12.5, 25, 50mm f.25, 50, 75, 100mm

Mesh width:

a.Max.1m, 1.2m b.Max.1.2m,1.5m, 2m c.Max.1.2m, 1.5m, 2m, 2.5m

Motor:

a.3kw b.3kw; 4kw c.4kw; 5.5kw, 7.5kw

Welding speed :

a. Max.75 rows/min b.Max.120-180 rows/min c.Max.80-120 rows/min

Transformer:

a.50kva*3 b.60kva*4;60kva*5, 60kva*7 c.70kva/80kva*5/6/7/8

Weight:

a.1.5T b.2T, 2.5T c.2T, 2.5T, 3T, 3.5T

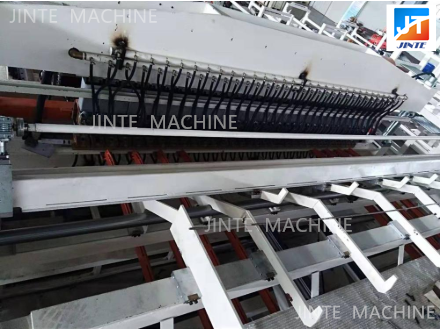

Detaild images

JINTE Galvanized Steel CE Welded Wire Mesh Machine

Advantage

1.Easy operated

2.High production

3.Advanced technology electronics.

4.Separate control technology, make welding transformers working separately to reduce needed capacity.

5.Different position of button and control box with inverter (Taiwan Delta), not easily broken like before, easier to operate.

6.Sealed welding transformers, it has 8 degrees, can be adjusted for different wire diameters.

7.Square steel bottom instead of angle iron bottom. 1.5mm steel plate instead of 0.2-0.3mm steel plate, more stable.

Contact us

JINTE Galvanized Steel CE Welded Wire Mesh Machine

Finished Products

JINTE Galvanized Steel CE Welded Wire Mesh Machine

Packing & Shipping


JINTE Galvanized Steel CE Welded Wire Mesh Machine
