120 Mesh / Min Metal Panel Welded Wire Mesh Machine
120 Mesh / Min Metal Panel Welded Wire Mesh Machine
120 Mesh / Min Metal Panel Welded Wire Mesh Machine
120 Mesh / Min Metal Panel Welded Wire Mesh Machine
120 Mesh / Min Metal Panel Welded Wire Mesh Machine
120 Mesh / Min Metal Panel Welded Wire Mesh Machine
120 Mesh / Min Metal Panel Welded Wire Mesh Machine
120 Mesh / Min Metal Panel Welded Wire Mesh Machine
Specifications
Brand Name :
JINTE
Model Number :
JT-W-AUO2325
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 24500-28000 /set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1 set/month
Delivery Time :
30 days
Packaging Details :
plastic
Name :
Weld wire mesh machine
Contorl System :
PLC
Aplication :
Produce metal panel
Warranty :
2 years
condition :
New
certificate :
ISO CE
type :
Automatic
Color :
Can be customized
Description

Metal Storage Shelf Use Galvanized Welded Wire Mesh Deck Making Machine

Product Description

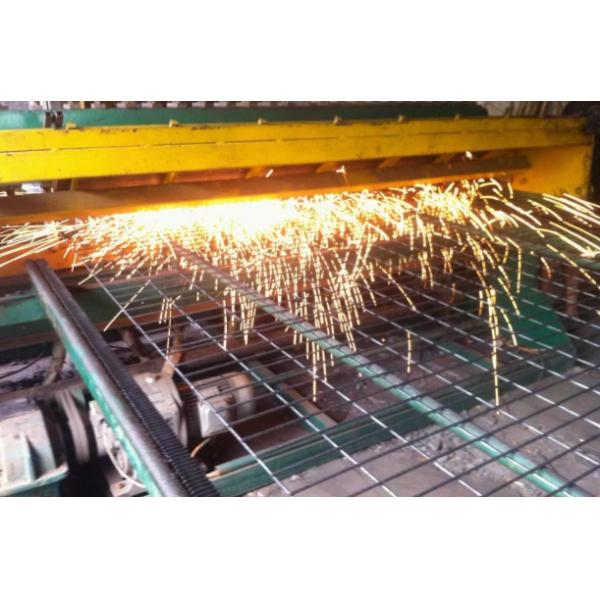

Galvanized Steel Wire Mesh Welding Machine consists mainly of main machine for welding, material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc.

Product details

1.The welding mesh machine is fully automatic, from steel wire to plate all run well on this machine.

2.The device can weld the panel with straight wire and move the panel.Cut panel, flat panel.

3.The machine can put the wire inside the frame into the machine, make straight automatically, and then weld automatically.

Function features and advantages


1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.


2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.


3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.


4. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.

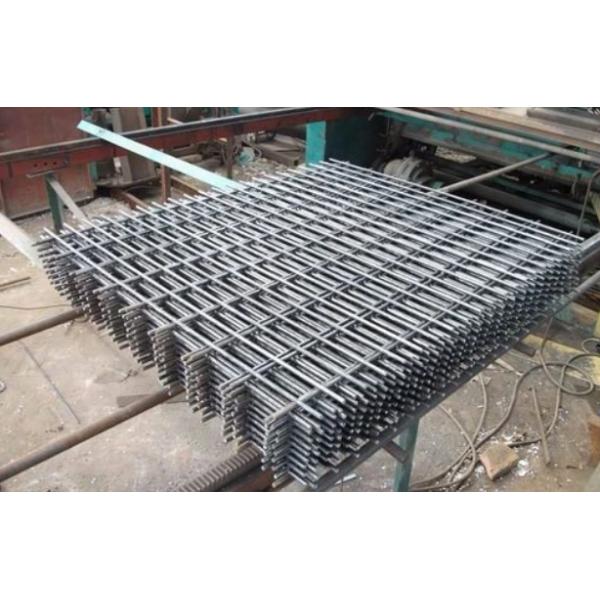

5. The finished products can be roll mesh or panel.

Model PDHW01 PDHW02 PDHW03
Mesh width 1200-1500mm 1200-1500mm 1200-1500mm
Mesh opening size 10-25mm 20-150mm 25-150mm
Wire Dia. 0.4-0.7mm 0.6-2.5mm 1.5-2.6mm
Welding Speed (Mesh/min) 120 100 85
Machine size 2600*1700*1800mm 3170*1600*1230mm 3500*1800*1500mm
Machine weight 2000kg 2500kg 3600kg
Outside transformer Less than 80KVA Less than 80KVA Less than 80KVA
Welding length 25m or design on demand 25m or design on demand 25m or design on demand

120 Mesh / Min Metal Panel Welded Wire Mesh Machine120 Mesh / Min Metal Panel Welded Wire Mesh Machine120 Mesh / Min Metal Panel Welded Wire Mesh Machine

Product tags

wire welded mesh machine

,

welded wire mesh machine

,

welded mesh wire machine
