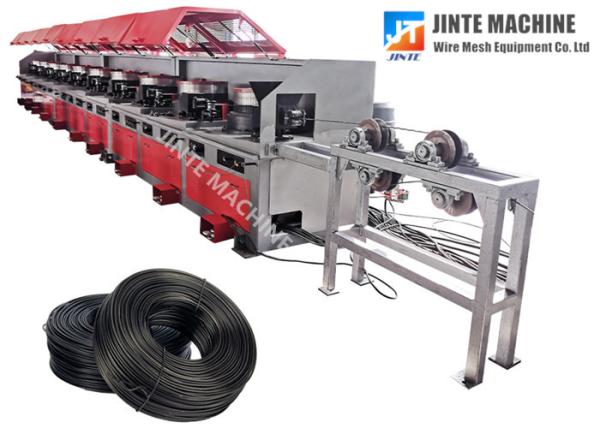

Mild Carbon Steel Dry Type Pulley Wire Drawing Machine
Mild Carbon Steel Dry Type Pulley Wire Drawing Machine
Mild Carbon Steel Dry Type Pulley Wire Drawing Machine
Mild Carbon Steel Dry Type Pulley Wire Drawing Machine
Mild Carbon Steel Dry Type Pulley Wire Drawing Machine
Mild Carbon Steel Dry Type Pulley Wire Drawing Machine
Specifications
Brand Name :
JINTE
Model Number :
JT-W
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD2500-35000/ SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5sets/month
Delivery Time :
25days
Packaging Details :
Packed in container with fixed iron rope and wooden stick. Necessarily, the machine will also be paint oil and plastic film. Train transport or sea way are both ok.
Machine name :
Wire Drawing machine
Inlet Diameter: :
5.5-6.5mm
Outlet Diameter: :
2-2.5mm
Motor :
22KW
Warranty :
1 Year
Condition :
New
Description

LZ 6-700 Mild carbon steel wire/iron wire / black wire dry type wire pulling machine

CL-560/9 straight line low/medium/high carbon steel wire drawing machine

(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.

(2) It's kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.

Working flows and automation
Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up

Main characteristics:


Reliability:Field bus technology was adopted to electrical control system,all digital control, electrical components are all international famous brand.Electrical control system is stable and reliable operation.

Energy saving: It adopts AC frequency regulator dragging which can reduce the impact of machine commission caused by motor start.

Security:It has multiple protection function, shield will open when the equipment high speed commission,or slow down to stop whenmeet other trouble.

High efficiency:It reduces the failure rate,average high working speed,greatly improve production efficiency.:It reduces the failure rate,average high working speed,greatly improve production efficiency.
LZ11/550 Straight line Wire drawing machine
Capstan diameter
550mm
Capstan numbers
11
Inlet wire diameter
Φ8.0mm
Outlet wire diameter
Φ2.0mm-Φ6.0mm
Tensile strength
≤600mpa
Total compressibility
90.53%
Average compressibility
25.52%
Max. Speed
12 m/s
Power
22 KW*11 (Frequency conversion motor )+22KW*11(inverter)
Mold size
Φ40mm×25
Block type
Vertical ,tilted
Take-up wire
Elephant trunk type take-up system
Tension frame
Internal tension frame.
Main frame
Welding of steel plate and square pipe.
Stop brake
Pneumatic brake
Vacuuming design
Reserve suction hole
Lighting
Each stand with separate lighting.
PLC
Siemens

MACHINE DESCRIPTION

Mild Carbon Steel Dry Type Pulley Wire Drawing Machine

Mild Carbon Steel Dry Type Pulley Wire Drawing Machine

RELATED PRODUCTS

FAQ:

Q: Are you the factory?
A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry for 22 years. We can offer you competitive machines.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in ding zhou county, hebei Province, China, about 3.5 hours by car from Beijing .All our clients, from home or abroad, are warmly welcome to visit our company !
Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, we will choose different voltage like 220V 50HZ; 380V 50HZ; 415V 50HZ;440V 60HZ etc
Q: How much is your machine ?
A: The price is depended on 3 factors:wire diameter, mesh size,and mesh width.
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
Q: How long is your delivery time?
A: If we have in stock, delivery to Tianjin port about 5 days, No stock, it will be 30 days after received your deposit.
Q: How can you guarantee the quality and the warranty?
A. We have an inspection team to check the products at all stages of the manufacturing process-raw material, welding process and test the finished products, etc. 100% inspection in assembly line to achieve the required quality levels.

1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
5.During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
