130times/Min PLC Wire Mesh Welding Machine For Panel And Roll Mesh
130times/Min PLC Wire Mesh Welding Machine For Panel And Roll Mesh
130times/Min PLC Wire Mesh Welding Machine For Panel And Roll Mesh
130times/Min PLC Wire Mesh Welding Machine For Panel And Roll Mesh
Specifications
Brand Name :
JINTE
Model Number :
JT-W
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 24500-28000 /set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1 set/month
Delivery Time :
30 days
Packaging Details :
plastic
Name :
Weld wire mesh machine
Contorl System :
PLC
Aplication :
Produce metal panel
Key words :
High Safety
Warranty :
1 years
condition :
New
certificate :
ISO CE
type :
Automatic
After-sales service provided :
Engineers available to service machinery overseas
Wire diameter :
0.45-2.6mm
Description

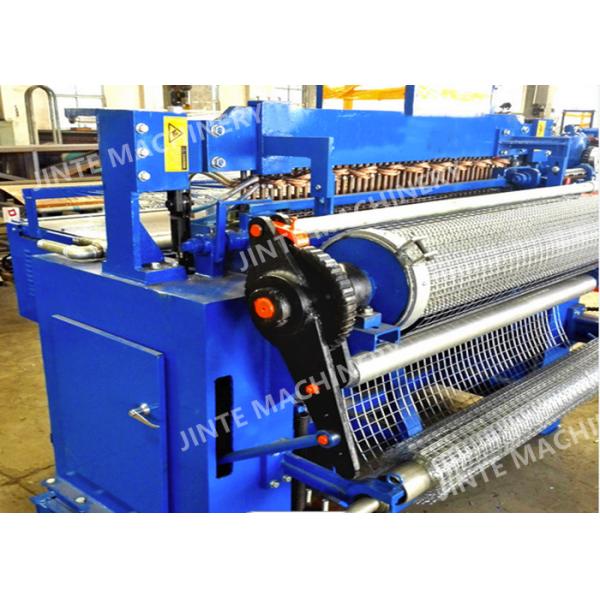

130 Times/Min Automatic Wire Mesh Welding Machine For Panel And Roll Mesh

Welded Wire Mesh Machine Introduction

Machine name: full automatic welding wire mesh machine for roll

Model: JT-W

Power: 75KVA

Dimension: 1.8mx2.5mx1.7m

Max welding width: 2.0m

Min welding mesh size: 25.4mm

Welding wire diameter: 0.6-1.5mm

Welding speed: 120-140times/min

The machine structure: Vacuum casting and steel welding

Weight: 3.2T

Welded Wire Mesh Machine Advantages

Both longitude wire and cross wire can be feeded from wire coils automatically. It also have the advantage such as design reasonable, low noise, more stable, easy operation and electro-magnetism adjustable speed for welding. The mesh size is precise and the machine can be set the mesh width and mesh length according to customer’s requirement.

Welded Wire Mesh Machine Technical Parameter

Welding wire diameter 0.6-0.8 mm
Mesh size 1/4"-4"
Mesh width 600-2100 mm
Welding speed 80-120 times/min
Voltage 380v-415v,3 phase electric 50HZ
power 85KVA*6
Dimension 2500*1500*1200 mm
Weight 2600 kg

Welded Wire Mesh Machine Finished Products

Welded wire mesh, also known as external wall insulation wire mesh, galvanized wire mesh, galvanized welded wire mesh, wire mesh,welded wire mesh, welded wire mesh, construction mesh, external wall insulation mesh, decorative mesh, wire mesh, square mesh, anti- Split net.

It is made of high-quality stainless steel wire, which is more resistant to acid, alkali, welding, beauty and versatility.
