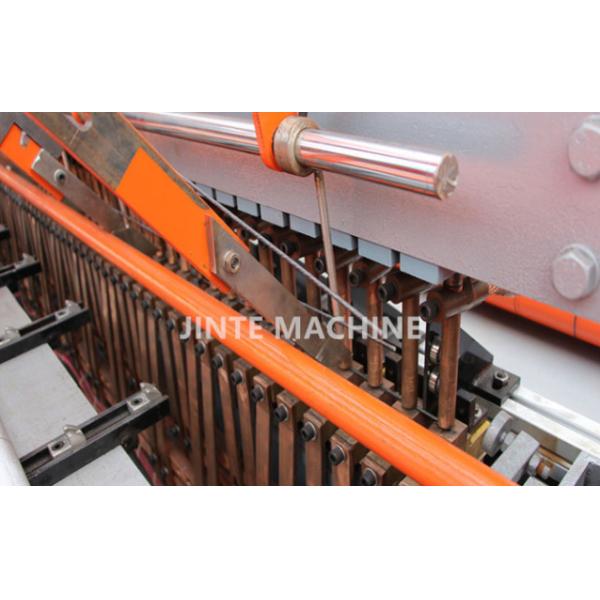

Plc Reinforcing Steel Rebar 3mm Wire Mesh Welding Machine For Building Construction
Plc Reinforcing Steel Rebar 3mm Wire Mesh Welding Machine For Building Construction
Specifications
Brand Name :
JINTE
Model Number :
JT-W
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 15000-30000 /set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1 set /month
Delivery Time :
30 days
Packaging Details :
Plastic packing wire rope of main machine is fixed in container
Warranty :
2 Years
Product name :
Best price electric steel automatic wire mesh welding machine in rolls
Type :
Welding Wire Machine
Usage :
welding wire mesh fence
After-sales service provided :
Engineers available to service machinery overseas
Feature :
Easy operation
Wire diameter :
3-6mm
Description

Reinforcing Steel Rebar Mesh Welding Production Line For Building Construction

Wire Mesh Welding Machine Product Description

We can supply different types of fence panel machine.

JW-2500A: this machine is common type, the bending is manual. This machine adopts many famous brand electric parts, the main motor connects with main aixs directly, the mesh pulling is controlled by Panasonic servo motor.

JW-3000AN: it is specially designed to make the bending automatic. The bending machine is connected to the welding machine. After finish welding, the mesh pulling car can send the fence mesh to bending part automatically, then the bending machine can bend after each pulling.

JW-3200A+: it is specially designed to make anti-climb fence (358 fence). Each welding electrode is controlled by one SMC air cylinder, the pressure can be totally same. So the welding points are even, the finished mesh is flattened. The bending is manual.

Wire Mesh Welding Machine Function features

1. Brake motor & reducer connect the principal axis directly.

2. Cast water-cooling transformer and lower welding electrode base.

3. Pure welding electrodes,30*30*50mm(5-12mm).

4. PLC control of cross wire space adjustment and welding current adjustment.

Wire Mesh Welding Machine Product Specification

Model 2500A+ 3000A+ 2500B 3000B
Air cylinder type SMC 80 double acting air cylinder SMC 90 single acting bally air cylinder
Wire diameter 3-8mm 5-12mm
Longitude wire space 100-300mm 100-300mm
Cross wire space Min.50mm Min.50mm
Mesh length Max.12m Max.12m
Mesh width Max.2500mm Max.3000mm Max.2500mm Max.3000mm
Welding electrode Max.24pcs Max.31pcs Max.24pcs Max.31pcs
Welding transformer 150kva*6pcs 150kva*8pcs 150kva*12pcs 150kva*16pcs
Welding speed Max.100 times/min Max.80-100 times/min
Weight 5.2T 7T 8.5T 9.8T
Main machine size 12.12*5.4*2.1m 12.13*6*2.1m 12.13*5.4*2.1m

12.13*6*2.1m

Wire Mesh Welding Machine Product Application

Reinforcing panel mesh welding machine, also called BRC mesh welding machine, concrete mesh welding machine, used to make steel rebar mesh, road mesh, building construction mesh etc.
