Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
Specifications
Brand Name :
Xingkuan Tech
Model Number :
Trommel screen,manual stone crusher screen,steel sieve ,grizzly crimped wire screen mesh
Certification :
Bv ,sgs , ce , Iso
Place of Origin :
Hebei ,China
MOQ :
1sheet or 1 roll
Price :
Negotiate
Payment Terms :
L, L/C, T/T
Supply Ability :
10000m2/ week
Delivery Time :
7-15 working days
Packaging Details :
Pallet , steel rope , or as per request !
Item :
Wear-resistant screens mesh cloth 1.8mm dia ,3mm hole ,3m width for sieve applications
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane.high carbon steel is better choice for anti-friction
Technology :
wire crimped cut and machine weaving
Wire diameter range :
0.7mm-12.8mm
Aperture :
0.45mm-150mm
Width :
1-6m
Length :
1-200m ( sheet : 2m ) , roll (200m)
Edge preparation :
plain or without special edge treament Bending hook hook with wrap plate
Description

Wear-resistant screens mesh cloth 1.8mm dia ,3mm hole ,3m width for sieve applications

Descriptions :

We have a large stock for wire diameter 1.8mm , and aperture 3mm, 2.5mm with 1-5m width ! The material can be Black steel or Mn steel or stainless steel ! Wear-resistant screens mesh cloth can be in roll or sheet

Quick detail :

Aperture : 0.5-150mm

Wire diameter : 0.6mm-12.8mm

Material : High carbon steel , stainless steel

Type : sheet or roll .

Screen mesh Parameters : customized is available !

Opening (mm) Wire Size (mm) Weight kg/㎡ Opening (mm) Wire Size (mm) Weight kg/㎡ Opening (mm) Wire Size (mm) Weight kg/㎡ Opening (mm) Wire Size (mm) Weight kg/㎡
3 2 10.16 12.5 4 12.32 26.99 5.72 12.7 75 11.2 18.48
3.15 1.4 5.47 12.5 5 18.14 26.99 6.3 15.14 75 12.5 22.68
3.15 2 9.86 12.7 3.05 7.5 28 5 9.62 76.2 9.53 24.22
3.18 1.22 4.3 12.7 3.76 10.91 28 6.3 14.7 76.2 9.53 13.45
3.18 1.37 5.24 12.7 4.11 12.76 28 8 22.58 76.2 12.7 23.04
3.18 1.83 8.49 12.7 4.5 14.95 28.58 5.72 12.11 80 10 14.11
3.18 2.03 10.05 12.7 4.88 17.2 28.58 6.3 14.45 80 12.5 21.45
3.18 2.34 12.6 12.7 5.26 19.56 28.58 7.94 21.92 80 12.5 37.8
3.18 2.67 15.48 13.2 3.15 7.71 30 4 5.98 85 11.2 16.56
3.35 2 9.5 13.2 4 11.81 30 5 9.07 90 12.5 19.36
3.75 2 8.83 13.2 5 17.45 30 6.3 13.89 100 11.2 14.33
3.75 2.5 12.7 14 2.5 4.81 30 7.1 17.26 100 12.5 17.64
3.97 3.05 16.83 14 4 11.29 30 8 21.39 101.6 12.7 17.92
4 2 8.47 14 5 16.71 30 10 31.75 125 12.5 14.43
4 2.5 12.21 14 5 16.71 30 10 31.75 150 12.5 12.21
4 3.15 17.62 14 6.3 24.83 31.5 5 8.7 150 12.5 22.68
4.35 2 8 14.29 4.11 11.66 31.5 6.3 13.34
4.5 2.5 11.34 14.29 4.88 15.78 31.5 7.1 16.59
4.5 2.8 13.64 14.29 5.26 17.97 31.5 8 20.58
4.5 3.15 16.47 14.29 5.72 20.77 31.5 8 20.58
4.75 2 7.53 15 5 15.88 31.5 10 30.6
4.75 2.8 13.19 15 6.3 23.66 31.5 11.2 37.31
4.75 3.15 15.95 15 8 35.34 31.5 12.5 45.1
4.76 2.03 7.71 15.88 4.11 10.73 31.5 12.5 45.1
4.76 2.34 9.79 15.88 4.88 14.57 31.75 6.3 13.25
4.76 2.67 12.19 15.88 5.26 16.62 31.75 7.19 16.86
4.76 3.05 15.13 15.88 5.72 19.24 31.75 7.94 20.17
4.76 3.43 18.24 15.88 6.3 22.73 31.75 9.53 27.94
5 1.6 4.93 16 4 10.16 31.75 10.01 30.47
5 2 7.26 16 5 15.12 31.75 11.11 36.57
5 2.5 10.58 16 5.6 18.44 34.93 4 5.22
5 2.8 12.77 16 6.3 22.6 34.93 6.3 12.23
5 3.15 15.46 16 8 33.87 34.93 7.94 18.68
5.3 2.5 10.18 16.5 2.5 4.18 34.93 11.11 34.05
5.3 3.15 14.91 17.46 3.05 5.76 35.5 8 18.69
5.56 2.67 11 17.46 3.76 8.46 35.5 10 27.91
5.56 3.05 13.72 17.46 4.88 13.54 35.5 12.5 41.34
5.6 2.8 11.85 17.46 6.3 21.21 35.5 12.5 41.34
5.6 3.15 14.4 18 4 9.24 37.5 7.1
6 2 6.35 18 5 13.8 37.5 8 17.86
6 2.5 9.34 18 6.3 20.74 38.1 7.19 14.5
6 3.15 13.77 18 8 31.26 38.1 7.94 17.39
6.3 2 6.12 19 2.8 4.57 38.1 9.53 24.22
6.3 2.5 9.02 19 5 13.23 38.1 9.53 24.22
6.3 3.15 13.34 19 5.6 16.19 38.1 10.01 26.45
6.3 4 19.73 19 6.3 19.92 38.1 11.11 31.86
6.35 2.34 8 19.05 3.05 5.35 38.1 12.7 40.32
6.35 2.67 10.04 19.05 4.88 12.64 38.1 12.7 40.32
6.35 3.05 12.57 19.05 5.26 14.45 40 4 4.62
6.35 3.43 15.28 19.05 5.72 16.78 40 8 16.93
6.35 4.11 20.51 19.05 6.3 19.88 40 8 16.93
6.47 2 6 19.05 6.3 19.88 40 10 25.4
6.7 3.15 12.79 19.05 7.94 29.66 40 10 25.4
6.87 1.6 3.84 20 5 12.7 40 12.5 37.8
7.1 2.5 8.27 20 6.3 19.17 40 12.5 37.8
7.1 2.8 10.06 20 6.3 19.17 41.28 11.11 29.92
7.1 3.15 12.29 20 8 29.03 42.5 7.1 12.91
7.1 4 18.31 20.6 2.8 4.26 42.5 8 16.1
7.5 3.15 11.83 20.6 6.3 18.74 44.45 7.19 12.71
7.94 3.43 13.14 21.2 6.3 18.33 44.45 9.53 21.37
7.94 3.76 15.35 21.2 6.3 18.33 45 6.3 9.83
7.94 4.11 17.8 21.2 7.1 22.62 45 8 15.34
7.94 4.88 23.59 21.7 6.3 18 45 10 23.09
8 2.5 7.56 22.23 4.88 11.16 45 10 23.09
8 3.15 11.3 22.23 5.26 12.78 45 12.5 34.51
8 4 16.93 22.23 5.72 14.87 45 12.5 34.51
8.5 4 16.26 22.23 6.3 17.67 47.5 8 14.65
9 2.5 6.9 22.23 6.3 17.67 50 8 14.01
9 3.15 10.37 22.23 7.19 22.32 50 10 21.17
9 4 15.63 22.23 7.94 26.54 50 10 21.17
9.5 2.5 6.61 22.25 3.15 4.96 50 12.5 31.75
9.5 2.8 8.09 22.4 5.6 14.22 50 12.5 31.75
9.5 3.15 9.96 22.4 6.3 17.56 50.8 7.94 13.63
9.5 4 15.05 22.4 6.3 17.56 50.8 9.53 19.12
9.53 3.43 11.53 22.4 7.1 21.7 50.8 9.53 19.12
9.53 3.76 13.51 22.4 8 26.74 50.8 9.53 33.03
9.53 4.11 15.73 22.4 8 26.74 50.8 10 20.89
9.53 4.88 20.99 22.4 10 39.2 50.8 12.7 32.26
9.53 6.3 31.84 23.6 5 11.1 53 8 13.32
9.7 3 9 23.6 6.3 16.86 53 10 20.16
10 3.15 9.58 23.81 5.26 12.09 56 8 12.7
10 4 14.51 23.81 5.72 14.07 56 10 19.24
10 5 21.17 23.81 7.94 25.22 56 11.2 23.71
10 6.3 30.92 25 3.15 4.48 56 12.5 28.97
10.2 2.5 6.25 25 3.15 4.48 57.15 10.01 18.95
10.7 2 4 25 4 7.01 60 8 11.95
10.6 4 13.92 25 6.3 16.1 60 10 18.14
10.6 6.3 29.83 25 6.3 16.1 60 11.2 22.37
11.11 4.5 16.48 25 8 24.63 63 10 17.4
11.11 4.88 18.91 25 8 24.63 63 11.2 21.47
11.2 2.8 7.11 25 10 36.29 63.5 7.94 11.21
11.2 3.15 8.78 25.4 3.05 4.15 63.5 12.7 26.88
11.2 4 13.37 25.4 5.26 11.46 65 8 11.13
11.2 5 19.6 25.4 5.72 13.35 65 10 16.93
11.8 2.5 5.55 25.4 6.3 15.9 65 12.5 25.6
11.8 3.15 8.43 25.4 7.94 24.01 67 12.5 24.96
11.8 4 12.86 25.4 9.53 33.02 71 8 10.29
11.8 5 18.9 25.4 10.01 35.94 71 10 15.68
11.8 6.3 27.85 26.5 6.3 15.37 71 11.2 19.38
12.5 3.15 8.05 26.5 8 23.56 75 10 14.94

Typical Applications :

  • Mining screen in quarry and sand
  • Vibrating screen for machine
  • Spare parts of crusher
  • Trommel screen mesh can be installed on the trommel screen machines to separate lighter and wetter materials in the chemical, coal, construction, plastic, metallurgy, mineral-selecting, agriculture, etc.

Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications

Notice :
In addition to our standard products, we can produce custom weave products in the widths, lengths, types, shapes, sizes, quantities and combinations you need based on your specifications or equipment limitations.

  • Opening sizes
  • Widths and lengths
  • Materials

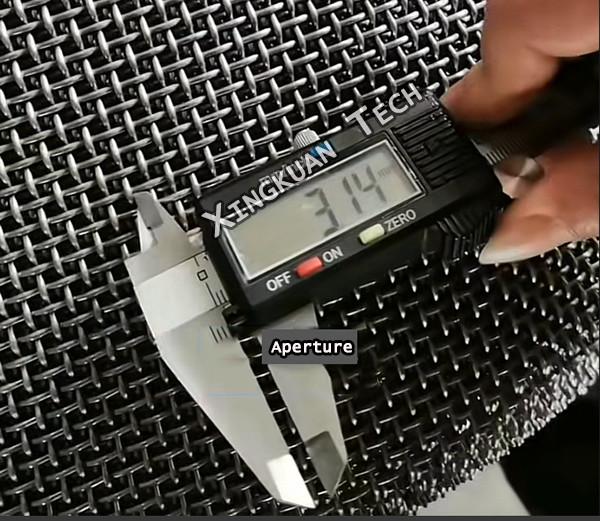

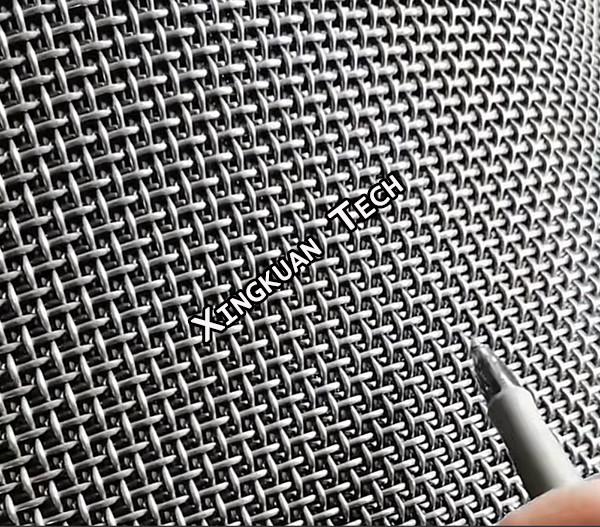

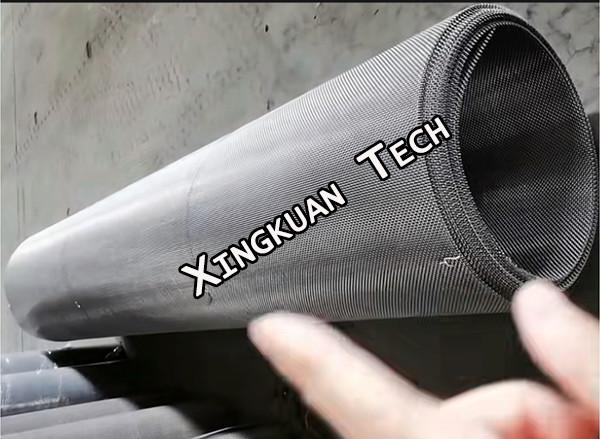

Below show is wire dia 1.8mm , aperture /opening -3mm,width -3m ,length -30m , condition : in roll ( sheet is also available )

Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications

Wear Resistant Screens Mesh Cloth 1.8mm Dia 3mm Hole 3m Width For Sieve Applications
