140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters
140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters
140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters
140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters
140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters
140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters
140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters
140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters
Specifications
Brand Name :
Xingkuan Tech
Model Number :
140mm Dia 60mesh extrusion screens for sieving in plastics or filters
Certification :
Bv,ce,sgs,Iso
Place of Origin :
Hebei ,China
MOQ :
1pc
Price :
Negotiate
Payment Terms :
L/C, T/T.etc, Western Union
Supply Ability :
30000pcs/day
Delivery Time :
5-8 working days
Packaging Details :
wooden case or on request
Item :
140mm Dia 60mesh extrusion screens for sieving in plastics or filters
size :
round (diameter 5 - 900 mm), ring (inner diameter 18 - 250 mm, outer diameter 50 - 350 mm), rectangular (length 60 mm - 400 mm, width 50 mm - 100 mm), or customerized
Mesh :
sqaure from 10-500 mesh , dutch upto 1800mesh
Layer :
single ,multi layer
Technology of process :
slitting , punching , spot wedling , rim wrapped edge , pleating ,etc
Applications :
as filter screen in extrusion machine
Description

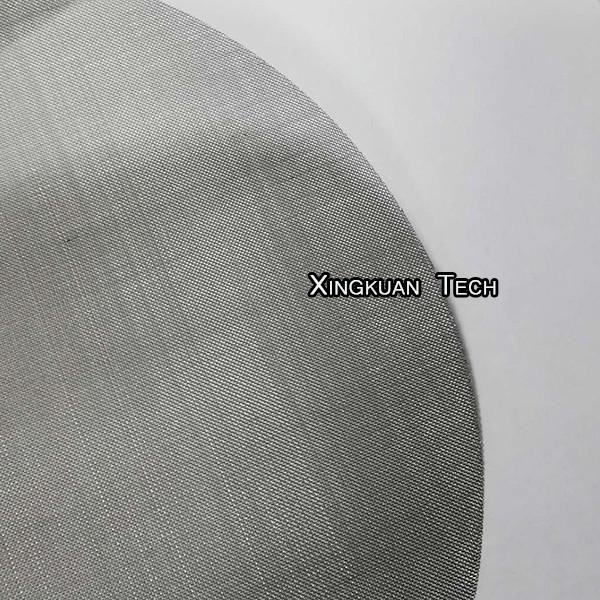

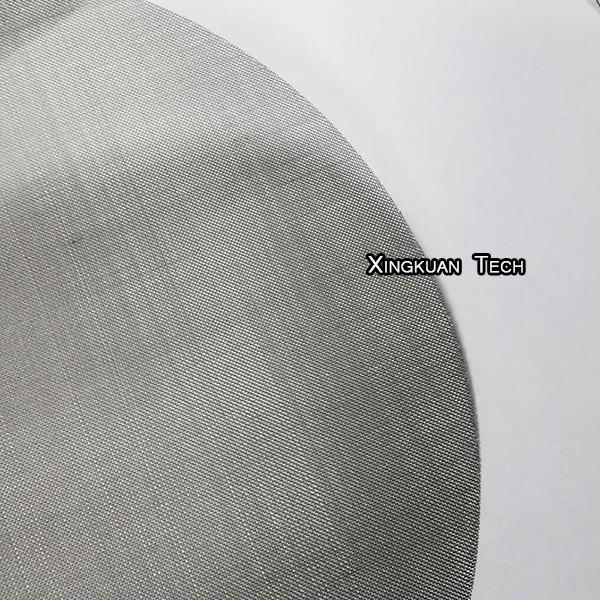

140mm Dia 60mesh extrusion screens for sieving in plastics or filters

  • Material: stainless steel woven wire mesh cloth ( 304, 316, 316L,etc),plain steel ,brass steel are available
  • 60mesh
  • OD:140MM(5.51")
  • Layer :1
  • Applications : They are often used as replacement screens in plastic extruders.
Mesh Wire Dia. mm Aperture Size Open Area %
10 × 10 0.711 1.829 mm 51.8
14 × 14 0.457 1.357 mm 55.9
16 × 16 0.457 1.131 mm 50.7
20 × 20 0.559 0.711 mm 31.4
20 × 20 0.457 0.813 mm 41
24 × 24 0.376 0.682 mm 41.4
30 × 30 0.376 0.531 mm 34.2
30 × 30 0.31 0.536 mm 40
40 × 40 0.274 0.361 mm 32.3
50 × 50 0.193 0.335 mm 43.6
60 × 60 0.193 0.230 mm 29.8
80 × 80 0.122 0.196 mm 37.9
100 × 100 0.102 0.152 mm 36
120 × 120 0.091 0.120 mm 31.8
150 × 150 0.071 0.088 mm 29.6
200 × 200 0.05 0.077 mm 36.76
250 × 250 0.04 0.062 mm 36.76
300 × 300 0.04 0.045mm 27.83
325 × 325 0.035 0.043mm 30.49
400 × 400 0.028 0.036mm 31.25
500 × 500 0.025 0.026mm 25.79

140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters

140mm Dia 60mesh Extrusion Screens For Sieving In Plastics Or Filters

Popular Stainless steel wire cloth Discs -CIRCLE DIAMETER
1/2" 1" 2 1/4" 3 9/16" 6 1/2"
5/8" 1 1/4" 2 3/8" 4" 7"
3/4" 1 3/8" 2 1/2" 4 9/16" 7 1/2"
7/8" 1 1/2" 2 9/16" 5" 8"
1 7/8" 2 7/8" 5 1/2" 9"
2" 3" 6" 10"
13"-330mm 12"
Customized circle size is available , we have a wide range of dies

Customized Size are available ffrom Hebei Xingkuan Wire Mesh Tech Co.,ltd .
