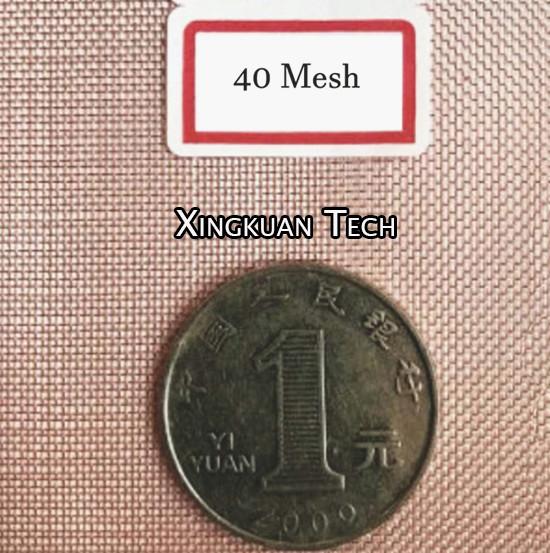

99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
Specifications
Brand Name :
Hebei xingkuan
Model Number :
Brass ,Copper ,phosphor bronze shielding screen mesh
Certification :
Bv ,sgs , ce , Iso
Place of Origin :
Hebei ,China
MOQ :
1 m2
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000m2/ week
Delivery Time :
5-8 working days
Packaging Details :
waterproof paper , wooden case or as per customer request !
Item :
40 mesh copper wire mesh screen
Material :
red copper (pure 99.99%)
Weaving type :
Plain ,Twill ,Crimped woven .
Wire diameter :
0.03-1.2mm
Mesh :
Plain weave :6-200 mesh ,twill weave upto 250 mesh , dutch weaving is customerized as request
Width :
0.914,1,1.2,1.5,1.8,2,2.5 m (can be slitted into narrowest width can be 3mm)
Length :
Ready stock is generally 30 meters long,cusomterized -up to 150 meters
Packing :
waterproof paper ,wooden case or as per request
Description

99.9% Pure Copper Wire mesh 40 Meshx0.12mm,0.18mm ,0.17mm,0.2mm Dense Screen

Copper mesh is a kind of soft, malleable and ductile metal mesh, and has high thermal and electrical conductivity. . With the features, the copper wire mesh are widely used in the filtration and separation industries

99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen

Mesh wire Dia Aperture open area rate open area
mm inch mm inch % mm²
40 0.12 0.0047 0.515 0.0202 65.77 0.2652
40 0.15 0.0059 0.485 0.0190 58.33 0.2352
40 0.18 0.0070 0.455 0.0179 51.34 0.2070
40 0.20 0.0078 0.435 0.0171 46.92 0.1892

Roll width: 0.914m(3‘), 1.0m, 1.22m(4')

Roll length: 30m (100')

Copper wire mesh materials

We maintains the largest selection of copper grades to support customer’s needs. Copper wire mesh is comprised of pure copper, it is available in three different wire materials

  • C11000 (99.9%) pure copper wire
  • C10200 (99.95%) pure copper wire
  • C10100 (99.99%) pure copper wire

99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen

Applications :

  • Sifting powders
  • Oil strainers
  • Test sieves
  • Shielding
  • Battery

99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen

40 mesh copper wire mesh packing

copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.

Notice :

  1. Small size of sample is free
  2. Delivery time : ready -stock for standard mesh szie .
  3. Payment term: TT,L/C or insurance order online .
  4. we can make roll into narrow width strip or any circle or any shape for special usage .

40 mesh copper wire mesh can be easily to be cut into any customized shape :

99.9% Pure Copper Wire Mesh 40 Mesh 0.12mm 0.15mm 0.18mm 0.2mm Dense Screen
