Filter Belts For Continuous Screen Changers Stainless Steel Material
Filter Belts For Continuous Screen Changers Stainless Steel Material
Filter Belts For Continuous Screen Changers Stainless Steel Material
Filter Belts For Continuous Screen Changers Stainless Steel Material
Filter Belts For Continuous Screen Changers Stainless Steel Material
Filter Belts For Continuous Screen Changers Stainless Steel Material
Filter Belts For Continuous Screen Changers Stainless Steel Material
Filter Belts For Continuous Screen Changers Stainless Steel Material
Specifications
Brand Name :
Xingkuan Tech
Model Number :
Continuous Filter Belt
Certification :
Bv ,sgs , ce , Iso
Place of Origin :
Hebei ,China
MOQ :
1 roll
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000SQM/Week , a large of stock ready whole year .
Delivery Time :
1-7 workingdays
Packaging Details :
waterproof paper , wooden case or carton , or as per customer request !
Item :
260X40 Mesh Reverse Twill Dutch (KPZ-Mesh, RTD) Wire Cloth，stainless steel 304
Material :
stainless steel 201,302,304,304A,316 ,Iron ,Copper clad steel
Mesh count :
72x15 , 260x40,132x17,152x24,180x16,120x16 , 110x15,110x8,110x17 ,etc
Height :
85mm ,97mm,120mm,127mm,130mm,130mm,135mm,140mm,150mm,200mm,308mm ,etc
Length :
10m,15m,20m ,30m , 40m, 80m ,etc
Delivery time :
standard size we have stock , normally 1-3 working days
Sample :
Free sample for small size
MOQ :
1 roll
Description

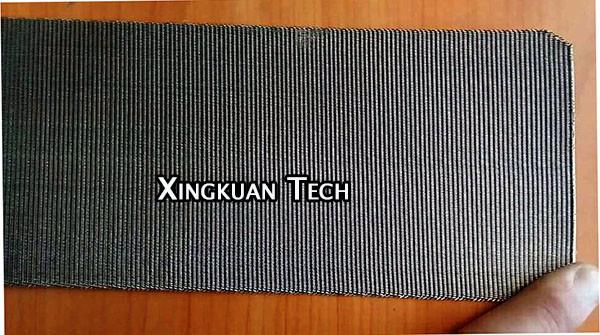

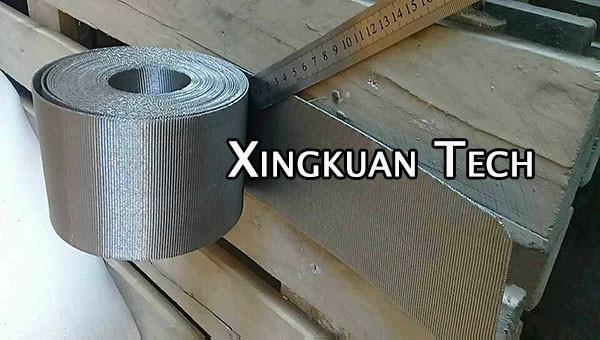

Filter Belts for Continuous Screen Changers,stainless steel material (stock )

Quick Detail :

  • Mesh Size: 48 × 10 mesh, 72 × 15 mesh, 132 × 14 mesh, 132 × 17 mesh, 152 × 24 mesh, 152 × 30 mesh, 260 × 40 mesh, 250 × 40 mesh, 400 × 120 mesh, etc.
  • Popular SS belt width: 67mm, 95mm, 97mm, 100mm, 127 mm, 133mm, 150mm, 157mm, 190mm, 210mm, 300mm, 400mm;
  • Copper clad steel continuous screen: 230mm, 380mm; And other customized, maximum width is 0.5 m.
  • Standard length: (stainless steel ) 10 - 30 meters or (copper clad steel ) 50-80 meters.
  • Materials: 304, 304L, 316, 316L, 430, copper clad steel, etc.
  • Weave style: reverse dutch weave pattern (reverse plain dutch weave and reverse twill dutch weave).
  • Filtration Accuracy:Continuous screen 300 micron, 200 micron, 125 micron, 100 micron, 20 micron, etc.
  • Other size available.

Applications:

Filter Belts for Continuous Screen Changers. Continuous filter belts, refers to reverse dutch weave filter belts made of stainless steel wires. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production.

The stainless steel reverse dutch extruder screen belt are widely applied on PC, PP, PE, PS, HIPS, PET, PVC and other plastic sheet extruder, the membrane machine, granulator, and nonwoven fabrics, color masterbatch, filler, leather chemical fiber extruder, etc.

Specifications: other mesh size is available !

Reverse Dutch Weave Continuous Filter Belts
Weave of Type Mesh/Inch Wire Diameter
mm		 Nominal Micron
μm
TRD 48 x 10 0.50 X 0.50 400
TRD 72 x 15 0.50 x 0.50 300
TRD 132 x 14 0.35 x 0.45 200
TRD 132 x 18 0.35 x 0.44 180
TRD 152 x 24 0.27 x 0.40 160
TRD 152 x 30 0.27 x 0.30 130
RPD 250 x 40 0.15 x 0.25 90
RPD 260 x 40 0.15 x 0.27 125
RPD 280 x 70 0.089 x 0.21 45
RPD 325 x 39 0.13 x 0.24 55
RPD 600 x 125 0.043 x 0.12 20
RPD 720 x 150 0.035 x 0.107 15

Notice :

  1. MOQ: 1 ROLL
  2. Delivery time : within 2 days !

​Filter Belts For Continuous Screen Changers Stainless Steel Material
