Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers
Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers
Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers
Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers
Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers
Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers
Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers
Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers
Specifications
Brand Name :
Xingkuan Tech
Model Number :
Framed Packs extruder screen pack for Synthetic fibers and Yarn spinning
Certification :
Bv,ce,sgs,Iso
Place of Origin :
Hebei ,China
MOQ :
1pc
Price :
Negotiate
Payment Terms :
L/C, T/T.etc
Supply Ability :
30000pcs/day
Delivery Time :
5-8 working days
Packaging Details :
wooden case or on request
Item :
Framed Packs extruder screen pack for Synthetic fibers and Yarn spinning
Material :
Stainless Steel 304/316L, black wire cloth, copper, brass Etc.
Mesh :
sqaure from 10-500 mesh , dutch upto 1800mesh
Layer :
2,3,4,5 layers (single layer or spot welded multi-layer screen discs.or with rim edges.)
Technology of process :
slitting , punching , spot wedling , rim wrapped edge , pleating ,etc
Applications :
as filter screen in extrusion machine
Description

Framed Packs extruder screen pack for Synthetic fibers and Yarn spinning
Descriptions :

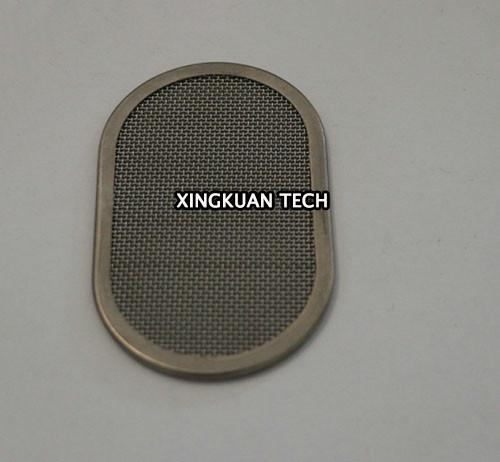

Manufactured in a similar fashion, framed packs contain unique mesh combinations that are seamlessly framed in aluminum, copper, or stainless steel. Frames can be tailored to exact dimensions and tolerances. These framed packs provide strict quality control, and ensure better sealing around the edge of the breaker plate to improve overall process performance.

Quick details & specifications :

Mesh Material : wire cloth/mesh in copper, Monel, brass, carbon and stainless steel.

Frame materials: Aluminum, anodized aluminum, copper, plated copper, brass and stainless steel.

Shapes:can be produced in different shapes which include, round, donuts, rectangular and oval.

Features of framed pack of screen :

  • Multiple filtration medias assembled with a frame that provide the benefits of welded screen packs
  • Prevents particles from entering around the edges of the breaker plate
  • Achieves finer filtrations and suitable for breaking gels from polymer blends
  • Stable flow distribution

Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic FibersFramed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers

Parts of standard mesh size on plain weave (other weave ,twill or dtuch is available )
SS Mesh

Wire Dia. mm
Aperture Size mm

Open Area
10 X 10
0.711
1.829 MM
51.8
14 X 14
0.457
1.357 MM
55.9
16 X 16
0.457
1.131 MM
50.7
20 X 20
0.457
0.813 MM
41.0
24 X 24
0.376
0.682 MM
41.4
30 X 30
0.376
0.531 MM
34.2
30 X 30
0.310
0.536 MM
40.0
40 X 40
0.274
0.361 MM
32.3
50 X 50
0.193
0.335 MM
43.6
60 X 60
0.193
0.230 MM
29.8
80 X 80
0.122
0.196 MM
37.9
100 X 100
0.102
0.152 MM
36.0
120 X 120
0.091
0.120 MM
31.8
150 X 150
0.071
0.088 MM
29.6
200 X 200
0.050
0.077 MM
36.76
300 X 300
0.040
0.045 MM
27.83
325 X 325
0.035
0.043 MM
30.49
400 X 400
0.028
0.036 MM
31.25

Applications :

  • Synthetic fibers
  • Yarn spinning and BCF
  • Blown film
  • Recycling and virgin plastics

Framed Packs Extruder Wire Mesh ,  Extruder Screen Pack For Synthetic Fibers

Notice :

  • We strive to provide the highest quality wire mesh for our customers. All of our meshes are produced according to ASTM and ISO standards. We specialize in prototype builds, and welcome your custom specifications.
  • We supply a complete range of extrusion screens and filters, in different sizes and shapes, to match your design specifications.
  • Our Screen Packs can be ordered with or without a seamless frame of dead-soft aluminum surrounding the screen. This provides for a better seal at the edge of the breaker plate. Frames can be customized to your exact design specification.

Before we talk price and delivery time , please offer below information as possible :

  1. Mesh Material :
  2. Mesh size :
  3. Frame material :
  4. Frame width and thickness :
  5. Shape & size

OR the drawing will be more in details to assure this is you are looking for .
