Specifications
Brand Name :
Hebei xingkuan
Model Number :
Hex steel Metal Mesh
Certification :
Bv ,sgs , ce , Iso
Place of Origin :
Hebei ,China
MOQ :
1 square meter
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000M2/day
Delivery Time :
5-8 working days
Packaging Details :
Pallet , or wooden case
Item :
Hex steel mesh ,hex metal , Tortoise shell mesh
Material :
Carbon steel Q235,0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless steel 304 304 L 316 316 L 310 s.
Sheet thickness :
1.0mm-3.0mm (12Ga,14Ga,16Ga )
Hole size :
30-100mm
Hole type :
lance or bonding hole
Mesh deepth :
10-30mm
Processing :
Hole punching , mold shape punching , Manual assembly
Applications :
for refractory linings in furnaces, reactors, cyclones, ducts, and flues.
Description

Hex steel Metal Mesh for Refractory Lining in hexagonal hole made in China

Quick details :

  • Material :Carbon steel Q235,0Cr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti, Stainless steel 304 304 L 316 316 L 310 s.
  • Sheet thickness: 1.0mm-3.0mm (12Ga,14Ga,16Ga )
  • Hole Size :30-100mm
  • Main hole type :lance or bonding hole
  • Mesh Deepth :10-30mm
  • Overal Size ( WXL): 1.0*1.0m 1.0*1.5m 1.0*2.0m 0.6m*1.0 0.5m*1.0, etc
  • Stock Size : 1.0*10*50mm 1.2*10*50mm 1.5*15*50mm 1.5*20*50mm 1.2*15*50mm 1.2*10*45mm 1.2*20*50mm
  • Technology : Hole punching , mold shape punching , Manual assembly .

Descriptions :

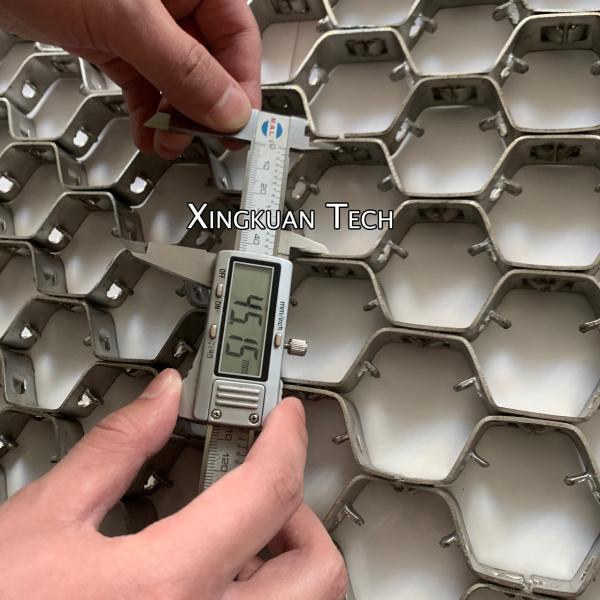

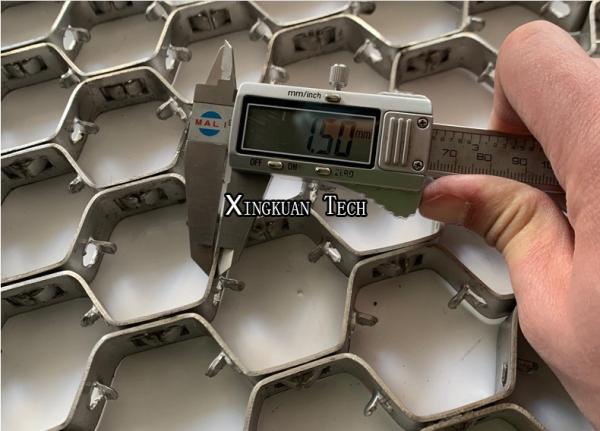

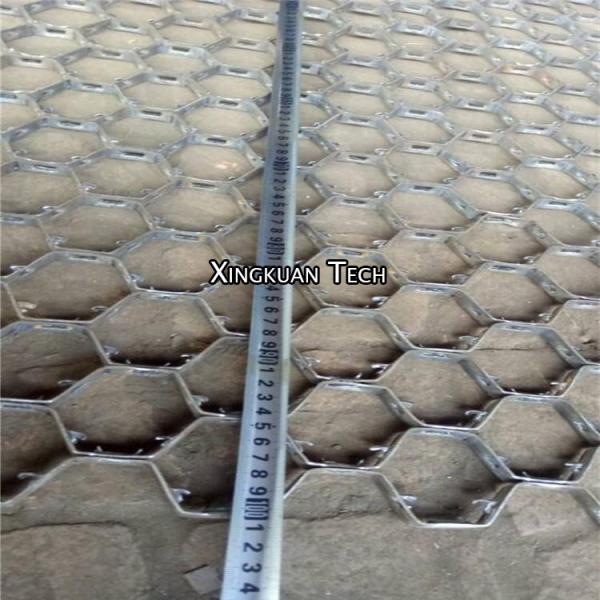

Hex steel mesh is also known asTortoise shell mesh, hex metal, hex metal grating, hex steel mesh, Hex steel grill or hex steel grid. Metal Hex grid provides surface framework for reinforcement of the refractory or concrete material in linings. They are made of pressed strips riveted to each other to form the hexagonal apertures.Anchors can be used in combination with Hexmetals / Flexmetals or as stand alone systems.

Steel Hex Metal Mesh , Hex Steel Metal Mesh For Refractory Lining

Applicaions :

  • for refractory linings in furnaces, reactors, cyclones, ducts, and flues.
  • use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices
  • for flooring offers long-term protection for armor applications in industrial floors

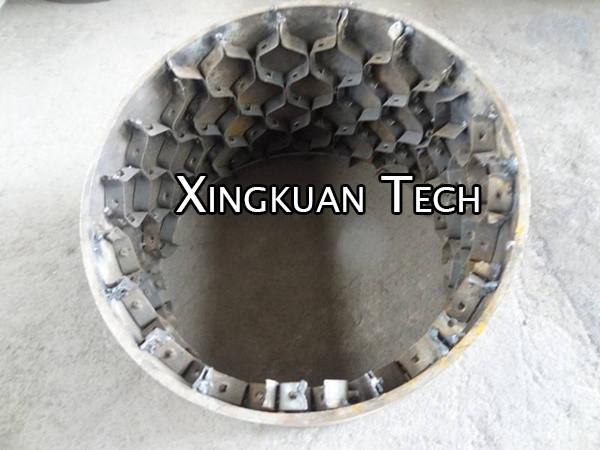

  • ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.

Steel Hex Metal Mesh , Hex Steel Metal Mesh For Refractory LiningSteel Hex Metal Mesh , Hex Steel Metal Mesh For Refractory Lining

Specifications :

Steel Hex Metal Mesh , Hex Steel Metal Mesh For Refractory Lining

Below is only part of common specifications , customerized is available :

Material Deepth(mm) Thickness(mm) Hole size(mm) Model m2/sheet LXW(mm)
Carbon steel 8 1.2 40*40 8-1.2-40*40 0.6 1070*562
Carbon steel 10 1.2 40*40 10-1.2-40*40 0.6 1070*562
Carbon steel 15 1.5 50*50 15-1.5-50*50 1 1550*650
Carbon steel 15 1.75 50*50 15-1.75-50*50 1 1550*650
Carbon steel 20 1.75 50*50 20-1.75-50*50 2 1550*1300
0Cr13 10 1.2 40*40 10-1.2-40*40 0.6 1070*562
0Cr13 20 1.75 50*50 20-1.75-50*50 1.9 1550*1230
0Cr13 25 1.75 50*50 25-1.75-50*50 1.9 1550*1230
0Cr13 40 1.75 50*50 40-1.75-50*50 1.9 1550*1230
304 8 1.2 40*40 8-1.2-40*40 0.6 1070*562
304 10 1.2 50*50 10-1.2-50*50 1 1550*650
304 20 1.75 50*50 20-1.75-50*50 1.88 1540*1225
304 25 1.75 50*50 25-1.75-50*50 1.9 1550*1230
304 40 1.75 50*50 40-1.75-50*50 1.9 1550*1230
S32205 10 1.2 40*40 10-1.2-40*40 0.73 1340*590
0Cr25Ni20 10 1.2 40*40 10-1.2-40*40 0.6 1070*562
0Cr25Ni20 20 2.0 50*50 20-2.0-50*50 Customerizd is available

Typical Service Temperature:

Anchorage Material Chemical Composition Service temprature
AISI DIN C% Si% Mn% P% S% Cr% Ni% others
304 1.4301 ≤0.08 ≤1.00 ≤2.00 ≤0.45 ≤0.30 18.0—20.0 8.0—10.0 N 800℃
316 1.4401/1.4436 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 16.0—18.0 10.0—14.0 N:Mo 800℃
321 1.4541 ≤0.08 ≤0.75 ≤2.00 ≤0.45 ≤0.30 17.0—19.0 9.0—12.0 Ti 800℃
310S 1.4845 ≤0.08 ≤1.50 ≤2.00 ≤0.45 ≤0.30 24.0—26.0 19.0—22.0 — 1150℃
Inconel 601 2.4851 ≤0.10 ≤0.50 ≤1.00 — ≤0.15 21.0—25.0 58.0—63.0 Al:Cu 1200℃
Inconel 800 1.4876 ≤0.10 ≤1.00 ≤1.50 ≤0.45 ≤0.15 19.0—23.0 30.0—35.0 Al:Ti 1200℃
410S 1.4001 ≤0.08 ≤1.00 ≤1.00 ≤0.40 ≤0.30 11.5—13.5 ≤0.60 — 750℃
CARBON STEEL VARIOUS 550℃

Features :

  • High wear resistance high temperature corrosion resistance.
  • Strong Thermal state impact ability.
  • Good mechanical processing performance.
  • Used in about 1300 °C.
  • High weldability long lifetime easy to install.

Notice :

  1. Small sample in stock is free
  2. Packing : pallet or as per request
  3. Pls send us : thickness , hole type , hole size , deepth , length , width , quantity and other special request
  4. If drawings you are at hand , it will be more helpful to communicate for your real request .
  5. Professional team do professional work together .
  6. We will give you suggestion after commnunication .
