Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​
Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​
Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​
Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​
Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​
Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​
Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​
Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​
Specifications
Brand Name :
Xingkuan Tech
Model Number :
High carbon steel quarry screen mesh for asphalt mixing station
Certification :
Bv ,sgs , ce , Iso
Place of Origin :
Hebei ,China
MOQ :
1sheet or 1 roll
Price :
Negotiate
Payment Terms :
L, L/C, T/T
Supply Ability :
10000m2/ week
Delivery Time :
7-15 working days

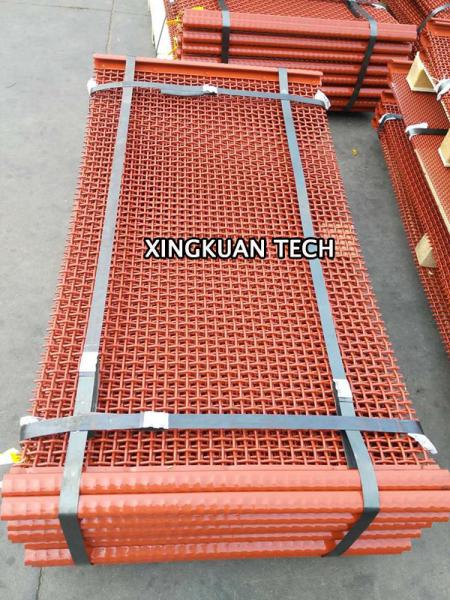

Packaging Details :
Pallet , steel rope , or as per request !
Item :
High carbon steel quarry screen mesh for asphalt mixing station
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane.high carbon steel is better choice for anti-friction
Technology :
wire crimped cut and machine weaving
Wire diameter range :
0.7mm-12.8mm
Aperture :
0.45mm-150mm
Width :
1-6m
Length :
1-200m ( sheet : 2m ) , roll (200m)
surface :
oil paint , color painting
Description

High carbon steel quarry screen mesh for asphalt mixing station​

Descriptions :

Mining screen mesh the type of material and hole configuration of the screening deck on a vibrating screen.We supply woven wire mesh screen panels made of pre crimped wire, for seperating the liquids and solids in mineral industries and oil fields. According to materials, most types of crimped screens supplied for export are made of 65 Mn ( manganese) Steel and Stainless Steel. Tensile strength of the steel wire applied is generally 1200MpA. Screen edges can be hooked or framed. for the surface , we can do oil painting or color paiting as your request .

Our quality control :

Min tensile strength Mpa : 1000--1650Mpa

Max tensile strength Mpa : 1200--1900Mpa

Min.RA:38%--45%

Aperture square weave :2*2mm--100*100mm

Aperture tolerance :±3%

wire spur length : > wire diameter , < half of an aperture .

Finished wire is inspected by the third party SGS .

Screen length and width tolerance : ±5mm

Screen squareness tolerance is controlled within 1.5mm every 300mm length

Quick detail :

Aperture : 0.5-150mm

Wire diameter : 0.6mm-12.8mm

Material : High carbon steel , stainless steel

Edge :flat sheet (plain edge or without hook ) ,

bare hook (bent hook ),

band hook ( wrap plate along side )

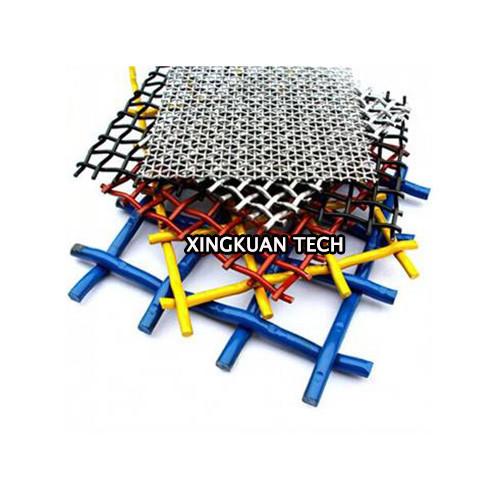

Weaving type :

Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​

Edges :

Screens for classifying, sizing, straining, sieving, are typically secured to a vibrating deck by clamping rails that apply tension across the screening surface. The tension is applied through edge treatments on the woven wire cloth screen panel commonly referred to as "hooks" , "hook strips" or "hooking strips".

Proper screen tension is crucial for effective screening and longer screen life.
Banded edges prevent flattening of hook edges and eliminate mesh pull-out on fine wire mesh or high tension screens.

Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​

Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​

Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​

Typical Applications :

  • Mining screen in quarry and sand
  • Vibrating screen for machine
  • Spare parts of crusher

Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​

Notice :
In addition to our standard products, we can produce custom weave products in the widths, lengths, types, shapes, sizes, quantities and combinations you need based on your specifications or equipment limitations.

  • Opening sizes
  • Widths and lengths
  • Materials
  • Edge
  • Customized products

Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​ Quarry Mine Screen Mesh High Carbon Steel For Asphalt Mixing Station​

A B C D Feed Size
Heavy Medium Heavy Medium Light
Apert. Wire Oa% Wire Oa% Wire Oa% Wire Oa% 1 2 3
100 20 69 16 74 12.5 79 11.2 81 180 215 250
90 16 72 12.5 77 11.2 79 10.0 81 150 190 230
76 16 68 12.5 74 11.2 76 10.0 78 150 190 230
70 12.5 72 11.2 74 10.0 77 9.0 79 125 165 200
65 12.5 70 11.2 73 10.0 75 10.0 75 125 165 200
56 12.5 67 10.0 72 9.0 74 8.0 77 125 165 200
50 12.5 64 10.0 69 9.0 72 8.0 74 125 165 200
48 11.2 66 9.0 71 8.0 73 7.0 76 115 140 180
44 11.2 64 9.0 69 8.0 72 7.1 74 115 140 180
42 11.2 62 9.0 68 8.0 71 6.0 77 115 140 180
29 10.0 63 8.0 68 7.1 71 6.0 75 100 125 150
36 10.0 61 8.0 67 6.0 73 5.6 75 100 125 150
32 10.0 58 8.0 64 6.0 71 5.0 75 100 125 150
28 9.0 57 7.1 64 6.0 68 5.0 72 90 115 130
25 8.0 57 6.0 65 5.6 67 5.0 69 90 115 130
22 7.5 56 5.6 64 5.0 66 4.5 69 75 95 115
19 7.1 53 5.6 60 4.5 65 4.0 68 75 95 115
16 6.0 53 5.0 58 4.5 61 3.6 67 65 80 95
14 4.0 54 4.5 57 4.0 60 3.15 67 65 80 95
12 5.0 50 4.5 53 3.6 60 2.8 66 50 65 75
11 4.5 50 4.0 54 3.1 60 2.8 64 50 65 75
10 4.0 51 3.6 54 3.1 58 2.5 64 38 50 65
8 3.6 48 3.15 51 2.8 55 2.0 64 38 50 65
6 3.15 43 2.8 46 2.5 50 1.8 59 25 38 50
5 2.5 44 2 51 1.6 57 1.2 65 19 25 38
3 2 36 1.8 39 1.4 46 1.0 56 16 19 25
2 1.25 38 1 44 0.9 48 0.71 54 12 16 19
1.6 1 38 0.9 41 0.8 44 10 12 16
1.4 0.9 37 0.8 40 0.71 44 8 10 12
1.25 0.8 37 0.71 41 6 8 10
