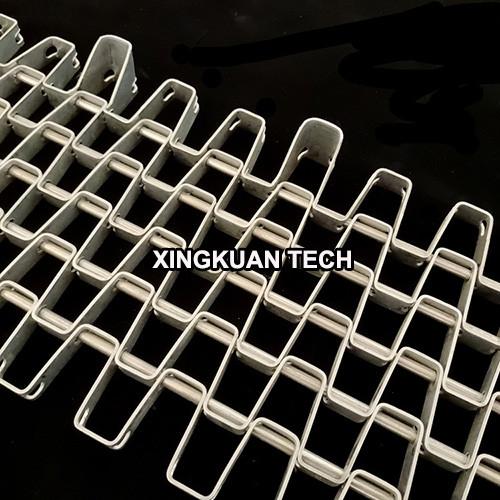

Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Specifications
Brand Name :
Xingkuan Tech
Model Number :
201/304/316 Stainless steel flat wire belting , honeycomb conveyor belt
Certification :
Bv ,sgs , ce , Iso
Place of Origin :
Hebei ,China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000SQM/Week
Delivery Time :
5-8 working days
Packaging Details :
wooden case or as per reuqest
Item Name :
201/304/316 Stainless steel flat wire belting , honeycomb conveyor belt
Material :
C-1045 High Carbon Steel, Galvanized Low Carbon Steel,201 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel
Rod diameter :
3,4,5,6,8 mm, etc
Rod Pitch :
12.7,25.4,38.1,50.8mm ,etc
Spiral pitch :
12.7-40mm
Belt width :
200 mm to 4000 mm
Edge stype :
clinched or welded
Applications :
used on conveyor belt machine
Description

201/304/316 Stainless steel flat wire belting , honeycomb conveyor belt
Descriptions :

Honeycomb is an ideal choice for any application which requires both durability and an open belt design whilst maintaining a flat carrying surface. Its high strength-toweight ratio also makes it an ideal choice for customers keen to improve their energy efficiency.This positively driven belting is used in a wide range of industries. a heavy duty belt with an open area that is particularly useful in drainage or cooling applications.

​Quick Detail :

Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
By Untis Nominal Dimensions Longitudinal Lateral Strip Strip Cross Rod
Inches – ( mm ) Pitch Pitch Width Thickness Diameter
A x B x W x T/D P PL W T D
inch 1/2 x 1/2 x 3/8 x 18/11 0.506 1.14 3/8 18swg 11swg
mm ( 12.7x12.7x9.52x1.2/3.0 ) ( 12.85 ) ( 28.95 ) ( 9.52 ) ( 1.2 ) ( 3.0 )
inch 1/2 x 1/2 x 3/8 x 18/11 0.540 1.14 3/8 18swg 11swg
mm ( 12.7x12.7x9.52x1.2/3.0 ) ( 13.72 ) ( 28.95 ) ( 9.52 ) ( 1.2 ) ( 3.0 )
inch 1 x 1/2 x 3/8 x 18/11 1.125 1.218 3/8 18swg 11swg
mm ( 25.4 x 12.7 x 9.52 x 1.2/3.0 ) ( 28.58 ) ( 30.91 ) ( 9.52 ) ( 1.2 ) ( 3.0 )
inch 1 x 1/2 x 3/8 x 18/11 1.084 1.198 3/8 18swg 11swg
mm ( 25.4 x 12.7 x 9.52 x 1.2/3.0 ) ( 27.53 ) ( 30.43 ) ( 9.52 ) ( 1.2 ) ( 3.0 )
inch 1 x 1/2 x 3/8 x 18/11 1.062 1.198 3/8 18swg 11swg
mm ( 25.4 x 12.7 x 9.52 x 1.2/3.0 ) ( 26.97 ) ( 30.43 ) ( 9.52 ) ( 1.2 ) ( 3.0 )
inch 1 x 1 x 3/8 x 18/11 1.125 2.62 3/8 18swg 11swg
mm ( 25.4 x 25.4 x 9.52 x 1.2/3.0 ) ( 28.58 ) ( 52.37 ) ( 9.52 ) ( 1.2 ) ( 3.0 )
inch 1 x 1/2 x 1/2 x 16/6 1.062 1.4 1/2 16swg 6swg
mm ( 25.4 x 12.7 x 12.7 x 1.63/4.88 ) ( 26.97 ) ( 35.56 ) ( 12.7 ) ( 1.63 ) ( 4.88 )
inch 1 x 1 x 1/2 x 16/6 1.062 2.0 1/2 16swg 6swg
mm ( 25.4 x 25.4 x 12.7 x 1.63/4.88 ) ( 26.97 ) ( 50.8 ) ( 12.7 ) ( 1.63 ) ( 4.88 )
inch 1 x 1 x 5/8 x 16/6 1.125 2.0 5/8 16swg 6swg
mm ( 25.4 x 25.4 x 15.87 x1.63/4.88 ) ( 28.58 ) ( 50.8 ) ( 15.87 ) ( 1.63 ) ( 4.88 )
inch 1.5 x 1.5 x 5/8 x 16/6 1.5 3.0 5/8 16swg 6swg
mm ( 38.1 x 38.1 x 15.87 x1.63/4.88 ) ( 38.1 ) ( 76.2 ) ( 15.87 ) ( 1.63 ) ( 4.88 )
inch 2 x 2 x 5/8 x 16/6 2.0 4.0 5/8 16swg 6swg
mm ( 50.8 x 50.8 x 15.87 x1.63/4.88 ) ( 50.8 ) ( 101.6 ) ( 15.87 ) ( 1.63 ) ( 4.88 )
inch 3 x 3 x 5/8 x 16/6 3.0 6.0 5/8 16swg 6swg
mm ( 76.2 x 76.2 x 15.87 x1.63/4.88 ) ( 76.2 ) ( 152.4 ) ( 15.87 ) ( 1.63 ) ( 4.88 )

Materials Available
• Stainless Steel 1.4301 (304)
• Stainless Steel 1.4401 (316)
• Stainless Steel 1.4541 (321)**
• Stainless Steel 1.4828**
• Mild Steel
• Galvanised Mild Steel
**Limited specifications available

Advantages of Honeycomb include:
• Open mesh construction for quick drainage and
free air circulation
• Flat carrying surface
• Easily cleaned
• Easily joined
• Economical
• High strength to weight ratio
• Positive sprocket drive

Applications :

Honeycomb belt has many and varied uses, below is a list of typical applications. If you have an application that is not listed below, contact our Technical Sales Engineers to see if Honeycomb belts are right for your needs.

  • Transport
  • Cooking
  • Heating
  • Drying
  • Cooling
  • Drainage
  • Freezing
  • Baking
  • Washing
  • Weed Clearing
  • Turf Cutting
  • Breading

Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316

Notice :

  1. Please send to us about your request with specificaions description or drawings
  2. Payment term: TT,LC ,or any insurance order way through other platform
  3. Delivery time : it is very fast if it is standard size .
  4. Sprockets and other drive components can also be supplied as per request. Please contact us for more detailed specifications regarding our flat wire belts and corresponding sprockets.
