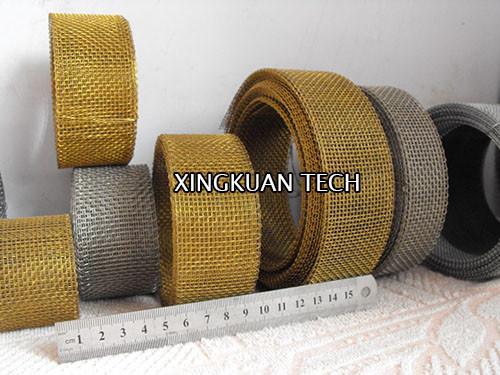

2cm -1m Customerized Super narrow height wire mesh screen with closed edge

Quick details & specifications :

• Material : Stainless steel wire, copper wire, nickel wire, molybdenum wire, silver wire, high carbon steel wire, low carbon steel wire, medium carbon steel wire, nylon and polyester monofilament,etc
• Weaving Pattern: Plain , Twill ,Dutch ,Reverse Dutch , etc
• Surface : color coating(red, green ,blue ,etc ) , polishing ,etc
• Edge :common closed edge
• Weaving pattern : Reverse dutch wire mesh ( plain reverse )
• mesh size :8-40 mesh or customemrized
• Roll Height :2cm , 3cm,4cm ,,30.8 cm , 39.5cm , 41.5cm , 44cm , 45 cm , .... 100cm , etc
• Roll Length :10m,20m or customerized
• Feature

*closed edge not easy to loose ,

*Wear resistance,

*high strength,

*long service life,

*various models,

*various mesh & wire diameter ,

*warp wire 's material can be different with weft wire 's material ,

*OEM OR ODM is acceptable , we can weave extra narrow screen mesh based on your special request .

Descriptions :

Super narrow height wire mesh screen is made of stainless steel wire , galvanized wire ,brass wire or coating color wire or ant alloy wire based on request . we can weave in special pattern for special request . it is mainly Filtration for pharmaceutical industry & decorations . and for warp wire and weft wire , material and wire diameter can be in different .

EXAMPLE : 9.6cm height , weft wire is brass , warp wire is galvanized iron wire , mesh :24 mesh , wire dia: 0.25mm

Applications:

the prodcution is mainly applied to

• Sieving, filtration, retention and manufacturing particles in pharmaceutical factories,
• Powder screening, oil filtering impurities, ceramic production,
• Decoration of jewelry and crafts,
• As conveyor belt in some special production process , etc

Notice :

1. Own a large stock for standard size , save time and cost for you .
2. Free sample in standard size is available
3. Any customerized special request is always avilable .
4. Item descriptions or SAMPLE will help us to serve you in better and right way

Please offer below datas for the inquiry :

1.Material

2. Mesh

3. roll length and height

4. any special request : packing , delivery time , etc .
