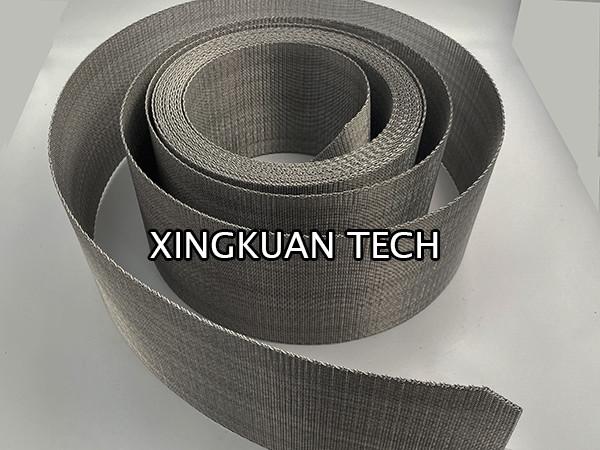

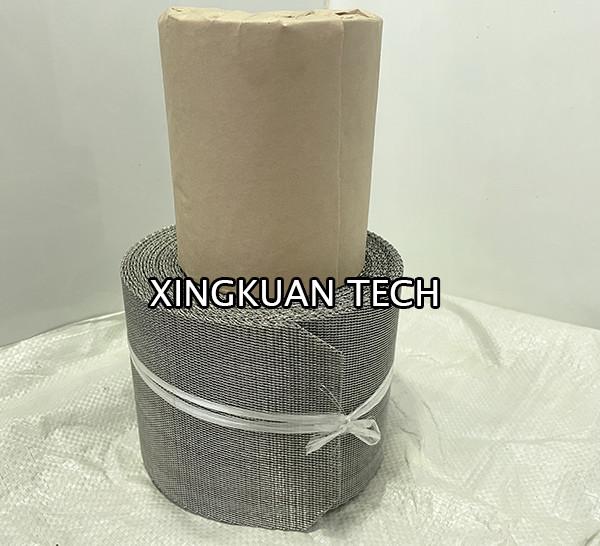

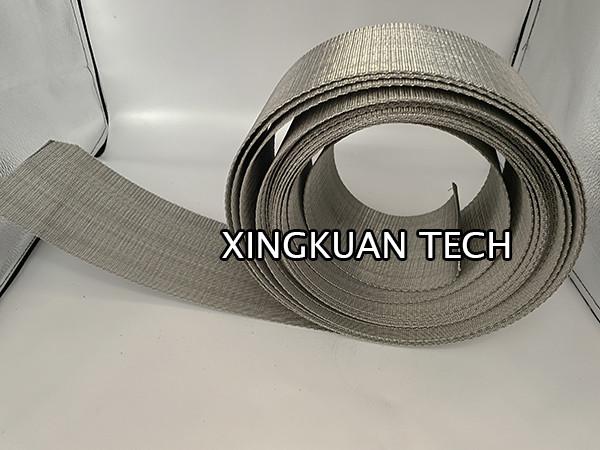

302,304,304A,316,316L Stainless steel reverse dutch wire mesh screen (RDW)

Quick details & specifications :

• Material : Stainless steel201 ,304,304A,304L,316,316L,etc ( copper coated steel wire is also available )

1.High Tensile Warp AISI 304 wire for Auto-Screen changers used in the Poly Extrusion Industry. The AISI 304 Warp Wire’s Tensile is 1300Mpa-1600Mpa.

2.High Tensile Warp Copper Coated Carbon Steel wire for Auto-Screen Changers used in Plastic and Rubber Extrusion industry. The Copper coated Carbon Steel Warp wire’s tensile is 1500Mpa -2000Mpa.

• Edge :common closed edge or Plasma and laser cuts for prevention of fraying of the wire’s edges
• Weaving pattern : Reverse dutch wire mesh ( plain and twill reverse )
• Mesh:72x15 , 260x40 ,152x17,180x16, etc (100 mesh ,200 mesh , 150 mesh ,260 mesh ,etc )
• Roll Width : 97mm, 120mm, 127mm, 130mm, 133mm, 150mm, 156mm, 280mm,308mm and 400mm
• Roll length :standard length is 10m ,15m,20m ,30m ,30.8m , etc (copper upto 80m,100m ,etc )

Below is only parts of standard size , cstomerized is also available .

Descriptions :

Stainless steel reverse dutch wire mesh is also known as extruder filter screen, Auto filter belt and contiuous filter belt . High Tensile Warp wire for Auto-Screen changers mainly is used in the Plastic Extrusion Industry. Reverse dutch is one of weaving pattern for stainless steel weaving method . Reverse dutch wire use different wire tickness for warp wire and weft wire , so it is also dutch wire mesh patteren .But due to the weft wire is thicker than warp wire , so it is called reverse dutch wire mesh . .

1.Reverse dutch plain wire mesh(RPD) :

The Reverse Plain Dutch Weave makes use of two different sizes of wires in weaving. The smaller wires are warped against a large shute wire and woven as closely as possible to create a finer and tight mesh cloth. The larger wire is used to strengthen and support the whole mesh.

2.Reverse dutch twill wire mesh (TRD):

The Twilled Reverse Dutch Weave on the other hand makes use of the Plain Dutch and twill weaving to create a fine mesh cloth. The fine wires are tightly woven together making this ideal for filtration of gas and other liquid applications.

Applications:

the prodcution is mainly applied to

• Commonly used in Auto Screen Changers used in the plastic extrusion industry.
• Apply to Austria Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, cast film machine, coating machine
• Used for aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientific research, transportation, and other industries.
• Filters -inside as media .

Notice :

1. Own a large stock for standard size , save time and cost for you .
2. Free sample in standard size is available
3. Any customerized special request is always avilable .
4. Item descriptions or SAMPLE will help us to serve you in better and right way

Please offer below datas for the inquiry :

1.Material

2. Mesh

3. roll length and width

4. any special request : packing , delivery time , etc .
