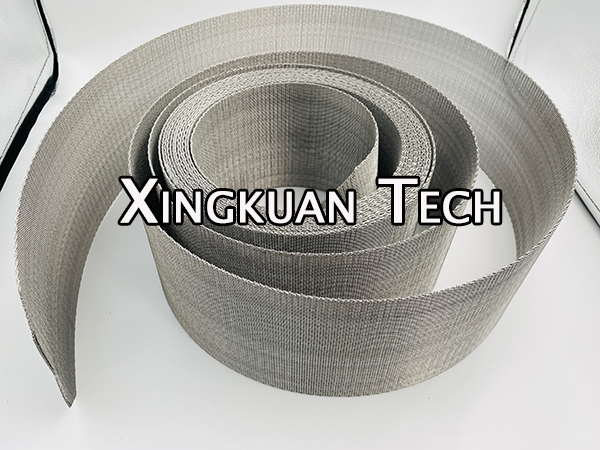

Stainless Steel High Strength Filter Mesh Belt Reverse Dutch Weave
Stainless Steel High Strength Filter Mesh Belt Reverse Dutch Weave
Stainless Steel High Strength Filter Mesh Belt Reverse Dutch Weave
Stainless Steel High Strength Filter Mesh Belt Reverse Dutch Weave
Stainless Steel High Strength Filter Mesh Belt Reverse Dutch Weave
Stainless Steel High Strength Filter Mesh Belt Reverse Dutch Weave
Specifications
Brand Name :
Xingkuan Tech
Model Number :
Stainless Steel high strength reverse dutch weave filter mesh belt
Certification :
Bv ,sgs , ce , Iso
Place of Origin :
Hebei ,China
MOQ :
1 roll
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
Stock ,dispatch within 3 working days for common size
Delivery Time :
1-7 workingdays
Packaging Details :
waterproof paper , wooden case or carton , or as per customer request !
Item :
Stainless Steel high strength reverse dutch weave filter mesh belt
Material :
stainless steel 201,302,304,304A,316 ,Iron ,Copper clad steel
Mesh count :
72/15,120/15,132/17,150/17,200/40,260/40 e
Type :
Metal weave mesh
Weave Style :
Reverse Dutch Weave(RDW)
Technique :
Weave
Processing :
weaving ,repair edge
Delivery time :
with 3 working days
Width :
97mm,107mm,120mm,127mm,157mm,etc.
Length :
10meters, 20meters,30meters ,30.5meters
Size :
can be customized
Description

Stainless Steel high strength reverse dutch weave filter mesh belt

Quick Detail :

According to local differences and usage are also known as: reverse dutch belt netting (also called Dutch/holland cloth)
Material: stainless steel iron wire is common ,like ss202 ,304,316 ,sometimes copper and nickel wire available ,also weave according to customer's request for special material
Weaving Type : Reverse Dutch
Features: mesh smooth, high hardness, continuous network, no deformation, high temperature.
Specifications: General length of 10 meters/20meters /30meterslong,
width :40mm-110mm,common width :97mm,120mm,127mm,130mm,150mm,etc
mesh :40 mesh -350 mesh, common mesh : 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16 mesh,132x18 mesh,152x24 mesh,160x16 mesh,160x24 mesh,160x25 mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh etc.also people call 100mesh,120mesh,130mesh,160mesh,180mesh,200mesh,etc
Uses: Applicable to the Austrian Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, casting film machine, coating machine filter. Domestic equipment: Lanfei 90 presses, Changzhou Hengli presses, Yantai presses, etc., are widely used in such as plastic woven bags, plastic film, aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and transportation industry. Plastic extruder with automatic belt filter, plastic melt filter, press belt filter. Products work fine, often with the filter equipment exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.
Basic specifications
Mesh Wire Dia.(mm) Thickness(mm) Width(cm)
45x15 0.45x0.6 1.75 9.7-28
48X10 0.50X0.50 3.6kg/sq.m 9.7-28
72x15 0.45x0.55 1.7 9.7-28
90X17 0.23X0.55 2.48kg/sq.m 9.7-28
110X17 0.23X0.55 2.6kg/sq.m 9.7-28
110X21 0.23X0.35 2.0kg/sq.m 9.7-28
120x16 0.35x0.45 1.36 9.7-28
132x17 0. 3x0.45 1.3 9.7-28
152x24 0.3x0.40 1.2 9.7-28
160x18 0.28x0.45 1.27 8-85
200x40 0.15x0.27 0.7 8-130
260x40 0.15 x0.27 0.65 8-130
300x40 0.15 x0.27 0.65 8-130
360x40 0.13 x0.27 0.6 8-130
Special specification we can produce according to customers' requirements.
FAQ:
A : Do you have stock or not ?
Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .
B: Do you accept small order -1 roll ?
Yes, surely , 1 roll is no problem for us .
C : Do you offer free sample for our testing ?
Yes , we surely offer free sample for your quality confirmation .
Stainless Steel High Strength Filter Mesh Belt Reverse Dutch Weave
