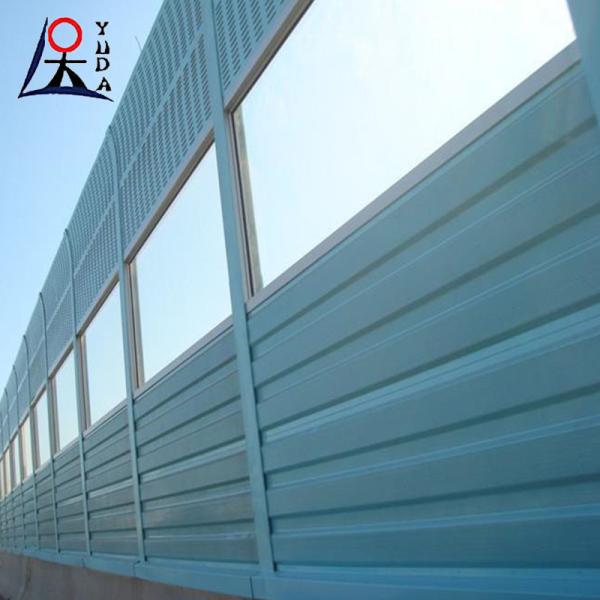

Road Noise Barrier Outdoor Acrylic Noise Barrier Metal Panel Sound Proof Barrier
Road Noise Barrier Outdoor Acrylic Noise Barrier Metal Panel Sound Proof Barrier
Road Noise Barrier Outdoor Acrylic Noise Barrier Metal Panel Sound Proof Barrier
Road Noise Barrier Outdoor Acrylic Noise Barrier Metal Panel Sound Proof Barrier
Specifications
Brand Name :
YUDA
Model Number :
Sound barrier
Place of Origin :
CHINA
MOQ :
50 Piece
Price :
Determined by size and quantity
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200000 Meters/ day
Delivery Time :
3-10 day
Packaging Details :
Customized according to buyer's requirements
Product Name :
Sound barrier
Key Words :
Outdoor sound barrier
Panel Style :
Steel panel, PC board
Application :
Highway,Railway,Noise Barrier,etc
Panel thickness :
at your requst
Panel length :
2m~4m can custom
Feature :
High Stability, eco-friendly, effective Railway Noise Barrier
Sheets thickness :
0.8-1mm, can be customized
Description

Road Noise Barrier Outdoor Acrylic Noise Barrier Metal Panel Sound Proof Barrier

Acoustic Barrier For Highway is mainly used as a noise reduction of road, viaduct and other noise sources. It is a kind of barrier set at the side of road or railway in order to reduce the impact of facility is established between sound sources and recipients to let sound transmission have a remarkable additional reduction, thus alleviating the bad influence of noise on areas where recipients are in; this kind of facility is Acoustic Barrier For Highway

In our times, noise is high among those pollution sources that most impair our quality of life. Ever more traffic, engendered by continually developing mobility, further aggravates the nuisance. Measures to shield us from such environmental burdens are thus
assuming increasing and crucial importance.

noise barrier for traffic and residential are made of aluminum or galvanized metal and fulfill eco-friendly natural plant fiber. The panels range from one-sided or double-sided highly absorbing quality and are also available in transparent design. The high quality and UV-resistant powder coating gives an appealing appearance to the JINBIAO sound barrier for traffic and residential.
1. Colors: blue, green, blue, opal, brown, silvery gray, red (Other colors can be ordered according to request
2. Material: PC sheet, Acrylic sheet, steel sheet or aluminium sheet
3. Inner material: Glass wool, Rock wool

Standard export packing:

1. Each panel will be wrapped with plastic film as separation

2. Some pieces of panels will be packed into Pallet, to protect with paper corner bead four sides and on the top with a piece of wooden board

3. We ship the goods by container.

Parts list
Items
Product description
Noise barrier panel
Metal material
Galvanized sheet aluminum alloy sheet, color plate
Transparent material
Glass, PC board, acrylic board, etc.
Other material
High strength cement, cement wood chips, glass steel, etc.
Hole pattern
Louver holes; common hole spacing 20*137, 20*182
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2 holes 4 distances
Aperture ratio
Not less than 25%
Common size
500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc.
surface concave groove
Can be customized according to drawings or customer requirements
Surface treatment
Electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
H shape post
Material
Q235B
Common size
100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc.
Common height
2m-6m up to12m
Flange
Size tolerance less than 2mm, thickness tolerance less than 0.4mm
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35
Surface treatment
Hot dip galvanizing-electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
Noise absorb material
Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam aluminum fiber etc.

FAQ

Q:What makes your fence products different from other company’s?

A: ASO fence provide free design service, customization and warranty service, with strictly quality control and very competitive price.

Q: Can I get a pcs of your products sample?

A: Yes, free samples will be provided anytime.

Q: What type of materials do you use for fence?

A: Most of the wire we use is low carbon steel wire. The core wire for razor wire is high tension strength steel wire. Post material is Q235.

Q: Will my fence rust, peel, fade or chip?

A: It shows more details in our warranty policy. If without man-made crash, punch, acid wash, etc, the surface can last for more than 10 years.
