Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth
Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth
Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth
Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth
Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth
Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth
Specifications
Brand Name :
YUDA
Model Number :
Glass fibre mesh
Certification :
IOS
Place of Origin :
CHINA
MOQ :
100 Square Meter
Price :
US $0.15 - 0.35/ Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 rolls/ day
Delivery Time :
3-10 day
Packaging Details :
Customized according to buyer's requirements
product name :
fiberglass mesh
Key words :
160gr Fiberglass Woven Roving Mesh Cloth
Material :
Fiberglass Yarn
Size :
can be custom made
Colors :
White,Yellow ,blue
Width :
0.5-1m OR CUSTOM
Package :
Roll, Carton, Pallet
Description

Reinforced Glass Fiber Fabric 160gr Fiberglass Woven Roving Mesh Cloth

Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth

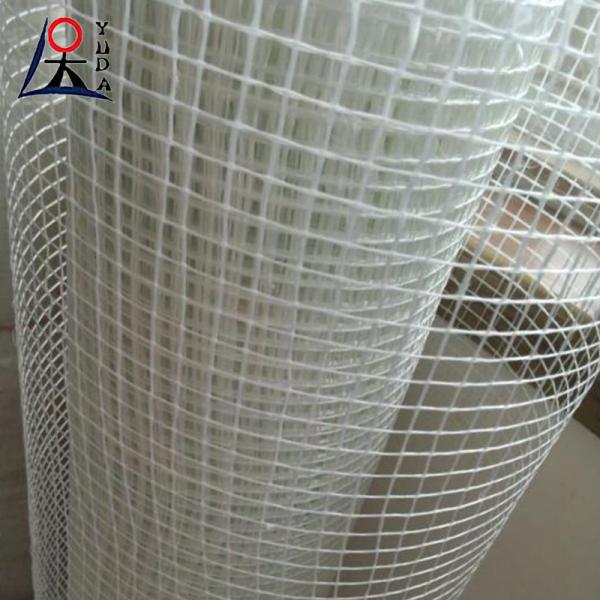

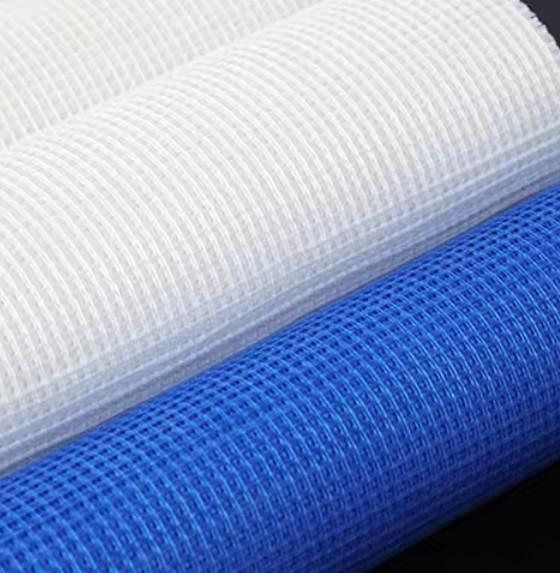

Fiberglass mesh fabric (Fiberglass mesh fabric) is a mesh fabric made of fiberglass yarn. It has excellent properties such as high strength, corrosion resistance, high temperature resistance and tensile resistance.

Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth

Reinforced Fiberglass Wall Mesh Specification:
Item Number Yarn(Tex) Mesh(mm) Density Count/25mm Tensile Strength × 20cm Woven Structure Content of resin%
Warp Weft Warp Weft Warp Weft Warp Weft
45g2.5x2.5 33×2 33 2.5 2.5 10 10 550 300 Leno 18
60g2.5x2.5 40×2 40 2.5 2.5 10 10 550 650 Leno 18
70g 5x5 45×2 200 5 5 5 5 550 850 Leno 18
80g 5x5 67×2 200 5 5 5 5 700 850 Leno 18
90g 5x5 67×2 250 5 5 5 5 700 1050 Leno 18
110g 5x5 100×2 250 5 5 5 5 800 1050 Leno 18
125g 5x5 134×2 250 5 5 5 5 1200 1300 Leno 18
135g 5x5 134×2 300 5 5 5 5 1300 1400 Leno 18
145g 5x5 134×2 360 5 5 5 5 1200 1300 Leno 18
150g 4x5 134×2 300 4 5 6 5 1300 1300 Leno 18
160g 5x5 134×2 400 5 5 5 5 1450 1600 Leno 18
160g 4x4 134×2 300 4 4 6 6 1550 1650 Leno 18
165g 4x5 134×2 350 4 5 6 5 1300 1300 Leno

18

Glass fiber mesh cloth has the following characteristics:

High strength: Glass fiber has a high tensile strength and can provide effective reinforcement and support.
Corrosion resistance: Glass fiber will not be corroded and can be used stably in humid and acid-alkali environments for a long time.
High temperature resistance: glass fiber mesh cloth has good high temperature resistance and is suitable for application in high temperature environment.
Transparency: Some glass fiber mesh cloth has transparency, maintaining visual permeability, and does not affect the penetration of light.
Easy to install: Fiberglass mesh cloth is soft and flexible, easy to install and use in combination with other materials.

Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth

1. 75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and

scattered throughout the surface pressure.
2. 110g / m2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials

(such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion

coefficient of wall crack and break .
3. 145g/m2 mesh fabric used in the wall and be mixed in various materials (such as brick, light

wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure,

especially in the external wall insulation system (EIFS ).
4. 160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through

shrinkage and temperature changes by providing a space to maintain movement between the

layers, prevent crack and rupture due to shrinkage or temperature change.

Reinforced Glass Fiber Fabric 160g Fiberglass Woven Roving Fabric Cloth
