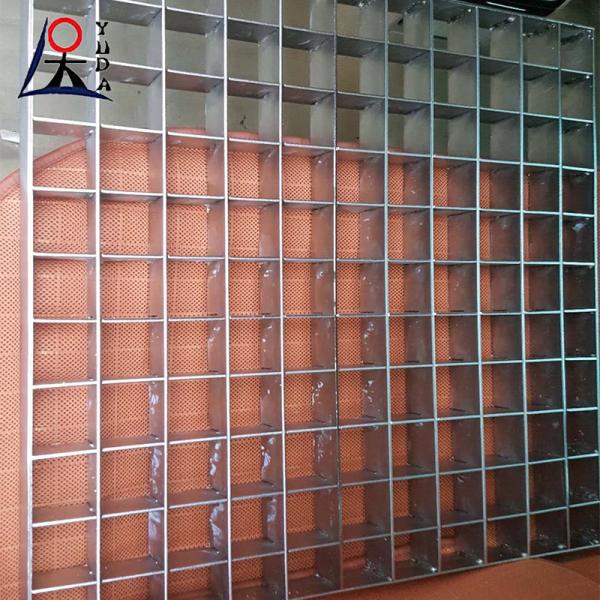

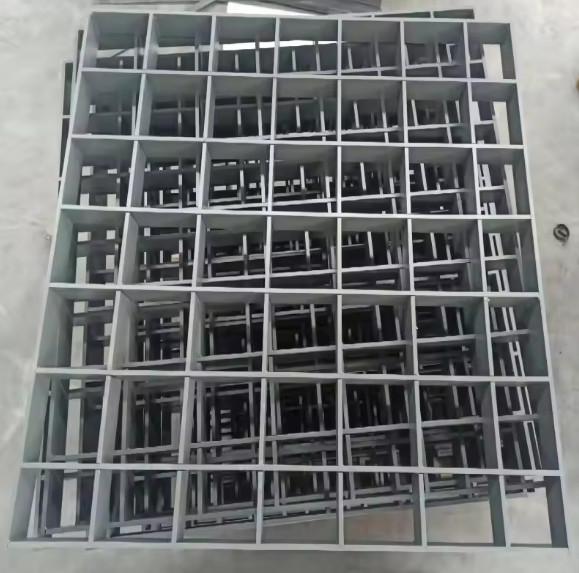

Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille
Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille
Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille
Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille
Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille
Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille
Specifications
Brand Name :
YUDA
Model Number :
Steel gratings
Place of Origin :
CHINA
MOQ :
50 Square Meter
Price :
US $9.00 - 20.00/ Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Meters/ day
Delivery Time :
3-10 day
Packaging Details :
Customized according to buyer's requirements
product name :
steel grating
key words :
Hot selling custom grill grates metal building materials hot - dip galvanized steel grille
Materials :
Low carbon steel,Stainless steel,aluminum alloy,FRP etc
Processing technology :
Pressure welding,pressure Locked
Panel Size :
1000mm x 6000mm
Thickness :
1-5mm
Cross Bar Type :
Twisted
Bearing Bar :
32mm x 5.0mm
Description

Hot selling custom grill grates metal building materials hot - dip galvanized steel grille

Product Description
Common Specification of Steel Grating
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc
Remarks: Special Material, High Zinc Coating and New Style can be Customized
Detailed Information of Steel Grating
Material
▪ Mild Steel (Carbon Steel)
▪ Stainless Steel
Bearing bar size
▪ 3mm thickness with 20mm to 40mm depth.
▪ 5mm thickness with 20mm to 120mm depth.
▪ 8mm thicness, 10mm thickness with 60mm to 140mm depth.
▪ Customized size available.
Bearing bar style
Smooth bar, Serrated bar, Smooth I Bar, Serrated I bar
Bearing bar space (center to center)
▪ 12.5mm, 15mm, 30mm, 40mm, 50mm
Cross bar style
▪ Twist bar
▪ Round bar
▪ Rib bar.
Cross bar space (center to center)
▪ 50mm, 76mm, 100mm
Surface treatment
▪ Untreated
▪ Hot Dipped Galvanized
▪ Painted.
Package
▪ Steel Pallet / Plywood Pallet, or according to customers' requirement.
Application
▪ Walkway, Industrial Platform, Sump, Trench, Drainage and so on.
Material standard
▪ GB700-88
▪ AS3679
▪ ASTM(A36)
▪ S4360(43A)
Grating standard
▪ YB/T4001.1-2007
▪ AS1657-2013
▪ BS4592-2006
▪ ANSI / NAAMM(MBG531-88)

Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille

Common Steel Grating Specification

1) Bearing bar size (mm): 25 x 3; 25 x 5;30 x 3; 30 x 5;32 x 3; 32 x 5; 35 x 3;35 x 5.....

2) Bearing bar pitch(mm): 20;30;34;40;50;60.....

3) Cross bar pitch(mm): 50;100;38.....

Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille

Custom Metal Catwalk Grating Building Materials Hot - Dip Galvanized Mild Steel Grille

Steel grid panels are commonly used in industry, construction and public areas, and their main functions include:

Anti-slip and drainage: The open hole design of the steel grid helps to drain water and prevent water accumulation and slip accidents. They are commonly used on platforms, steps, walking paths and work areas to provide a reliable non-slip surface.
Bearing and support: Due to the strong structure and high strength of steel grids, they can be used to carry and support heavy equipment, cargo, vehicles and pedestrians. They are commonly used in places such as industrial facilities, Bridges, docks and cargo warehouses.
Ventilation and light transmission: The open hole design of the steel grid can promote air circulation and natural lighting, suitable for environments requiring good ventilation and perspective, such as basements, garages and computer rooms.
Security fence: Steel grids can be used to make security fences and fences to define areas, control access and provide security.

Packing details:

1. stick the label on each grating, the panel number will be marked on the label.

2. insert the steel bracket through the gratings from bottom to the top to fix the package. if the grating panel's size is less than 1500mm*1000mm, 4 pcs steel brackets per package. if more than 1500mm*1000mm, the steel brackets will be added accordingly.

3. bundle the gratings with the PVC tape.

4.Attach a thermoplastic tag to each package. Accordingly to th tag, our clients can find each panel easily and swiftly.

5. wrap the gratings with plastic films.
