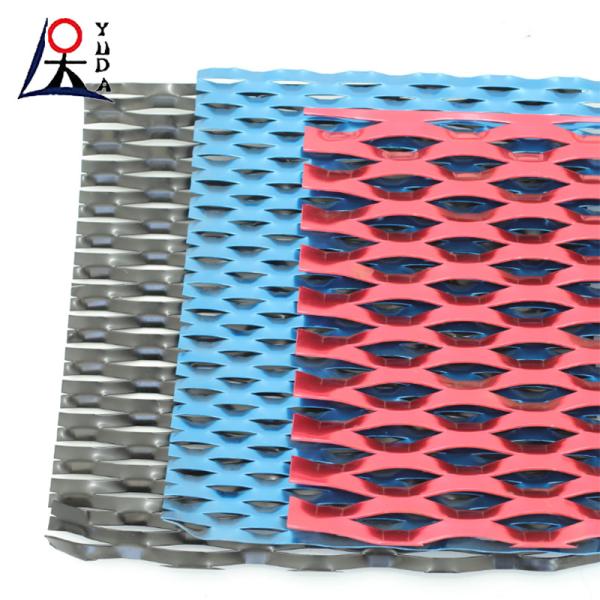

Diamond Shape Stretched Metal Expaned Metal Aluminum Expanded Metal Mesh
Diamond Shape Stretched Metal Expaned Metal Aluminum Expanded Metal Mesh
Diamond Shape Stretched Metal Expaned Metal Aluminum Expanded Metal Mesh
Diamond Shape Stretched Metal Expaned Metal Aluminum Expanded Metal Mesh
Diamond Shape Stretched Metal Expaned Metal Aluminum Expanded Metal Mesh
Diamond Shape Stretched Metal Expaned Metal Aluminum Expanded Metal Mesh
Specifications
Brand Name :
YUDA
Model Number :
Expanded metal mesh
Place of Origin :
CHINA
MOQ :
50 Meters
Price :
US $2.50 - 5.60/ Square Meter
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200000 Meters/ day
Delivery Time :
3-10 day
Packaging Details :
Customized according to buyer's requirements
Product Name :
Expanded metal mesh
Key Words :
Highly Corrosive And Durable
Material :
Low carbon steel /stainless steel / aluminum/copper etc.
Hole shape :
Diamond Hole, hexagonal, etc,
Thickness :
0.1 - 8mm or custom
Length :
1-50m/roll , Customers' Requirement
Width :
0.5-2m, Customers' Requirement
Wire diameter :
Requirement
Description

Diamond Shape Stretched Metal Expaned Metal Aluminum Expanded Metal Mesh

Steel mesh, also known as metal plate mesh, diamond mesh, iron plate mesh, etc., is a tensioned object with a mesh structure formed by processing with a steel plate mesh punching and shearing machine. It is widely used in various fields such as construction, transportation, energy, etc. due to its durability, anti slip, and good ventilation effect. The materials of steel mesh are diverse, including low-carbon steel plates, stainless steel plates, aluminum plates, etc. There are also various surface treatment methods such as hot-dip galvanizing and spray coating to meet the needs of different customers.

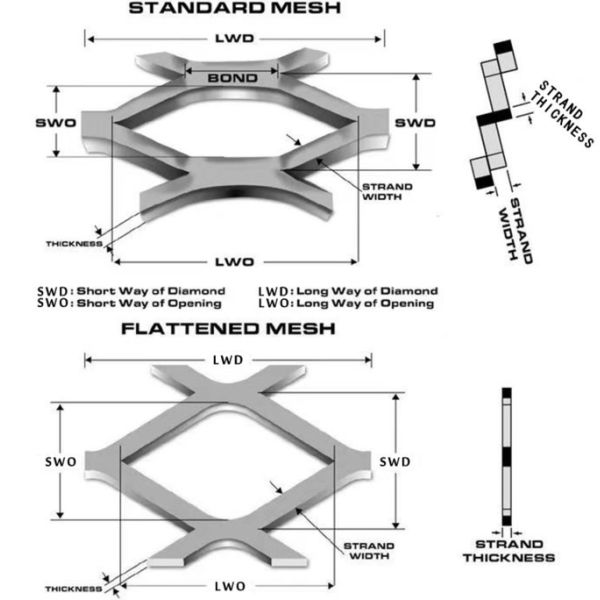

Expanded metal mesh comes in two forms: raised expanded metal and flattened expanded metal. Raised expanded metal is also known as standard expanded metal, it has diamond openings with slightly raised surface.
Flattened expanded metal is manufactured by passing the standard expanded sheet through a cold roll reducing mill, forming diamond openings with flat surface.

Materials: aluminum plate, aluminum magnesium alloy plate.

Specification:

LWD:3mm~200mm;

SWD: 2mm~150mm;

Plate thickness:0.2mm~9mm;

Strand width:0.3-5mm

Range of roll length:1m~30m;

Roll width:10mm~1250mm.

Width: maximum up to 3M

Hole shape:Diamond hole ,square hole,scale hole

Hole type :Raised /standard hole,Flattened hole.

Surface treatment & tech: baking varnish, anodic oxidation,PVC / powder coated,pvdf.

Characteristics: Light-duty, corrosion resistance,beautiful and long service life.

Features:

Weight is light enough for outer wall hanging

Anti-corrosive

Rainstorm or isolation won`t hurt

Visibility and colorful

Used as decorative mesh for building outer wall ,radiator cover mesh

Easily fabricated, finished, installed and formed

Application

expanded metal used with concrete in buildings and construction, maintenance of equipment,

making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,

studio,highway.

Specifications of expanded metal mesh
Tickness(mm) SWD(mm) LWD(mm) Wire stems width(mm) Width(m) Length(m) Weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4 60 120 4 2 7.5 4
