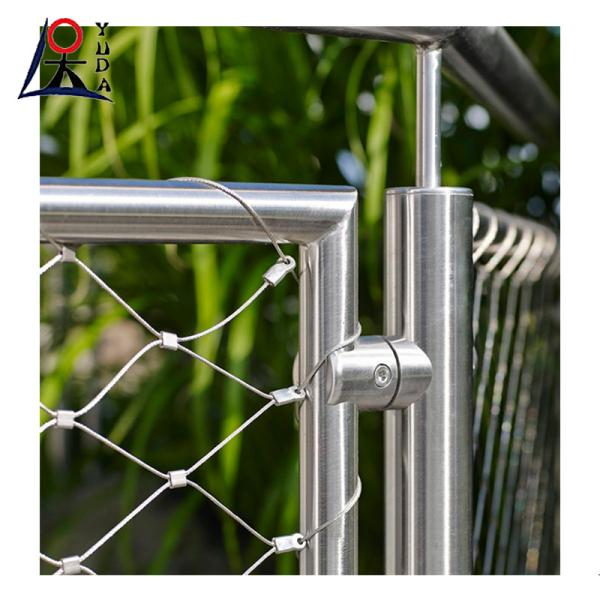

304 304L 316 316L Stainless Steel Wire Rope Stainless Steel 6x19 7x19 Wire Rope
304 304L 316 316L Stainless Steel Wire Rope Stainless Steel 6x19 7x19 Wire Rope
304 304L 316 316L Stainless Steel Wire Rope Stainless Steel 6x19 7x19 Wire Rope
304 304L 316 316L Stainless Steel Wire Rope Stainless Steel 6x19 7x19 Wire Rope
Specifications
Brand Name :
YUDA
Model Number :
Stainless Steel Wire Rope Net
Place of Origin :
CHINA
MOQ :
10 roll
Price :
Determined by size and quantity
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 rolls/ day
Delivery Time :
3-10 day
Packaging Details :
Customized according to buyer's requirements
Product Name :
Stainless Steel Wire Rope Net
Key Words :
Stainless Steel Wire Rope Net
Material :
SUS302,304,316,304L,316L etc.
Wire diameter :
Customized according to customer requirements
Type :
Weave Wire Mesh
Usage :
Protecting Mesh, Architectural MESH,Fence Mesh,Zoo, farm, greenhouse
Processing Service :
Welding, Decoiling
Length :
Customers' Requirement
Description

304 304L 316 316L Stainless Steel Wire Rope Stainless Steel 6x19 7x19 Wire Rope

Stainless steel, a versatile material with elegance and robustness, has inspired architectural designers for projects of all
kinds. Constructed of quality stainless steel wire ropes, flexible wire rope mesh has unique characteristics that allows design
flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond
openings, which is graceful and beautiful.
The mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade
infill system, zoo enclosures, tensile facade, safety netting and green wall systems in interior and exterior applications.

The stainless steel rope net is made of stainless steel wire. The material of the wire is stainless steel: 201.304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.
Two conventional types of stainless steel rope mesh:
Buckle type
Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle.
Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure.
Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
Woven type
The stainless steel wire rope is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface. The whole mesh is integrated into one, which is durable, strong in corrosion resistance, beautiful and clear, and meets the use requirements of different environments. Generallyfor animal enclosures in zoo applications because it is easier to see through it when viewing the animals

model
Steel wire mesh structure
Breaking force (KN)
Wire rope diameter (mm)
Mesh size (mm)
BN32120
7*19
7.38
3.2
120*208
BN2470
7*7
4.18
2.4
70*102
BN20100
7*7
3.17
2.0
100*173
BN1680
7*7
2.17
1.6
80*140

Product Advantages
1. High Strength:
Made from high-strength steel wires, wire ropes have exceptional tensile strength and can withstand significant forces.
2. Abrasion Resistance:
The hard surface of wire ropes makes them highly resistant to wear and tear, suitable for use in harsh environments.
3. Corrosion Resistance:
Wire ropes can be specially treated, such as galvanizing or coating, to enhance their corrosion resistance and extend their service life.
4. Flexibility:
Wire ropes possess good flexibility, allowing them to be easily bent and coiled, facilitating installation and use.
5. Stability:
The structure of wire ropes maintains stability under load, reducing the likelihood of sudden breakage.
6. Even Load Distribution:
Comprised of multiple steel wires, wire ropes can distribute loads evenly, minimizing wear and tear.
7. Durability:
With proper use and maintenance, wire ropes have a long service life.
8. Safety:
Often used for lifting and suspending heavy objects, the high safety factor of wire ropes is a key reason for their selection in many engineering applications.

304 304L 316 316L Stainless Steel Wire Rope Stainless Steel 6x19 7x19 Wire Rope304 304L 316 316L Stainless Steel Wire Rope Stainless Steel 6x19 7x19 Wire Rope304 304L 316 316L Stainless Steel Wire Rope Stainless Steel 6x19 7x19 Wire Rope
