Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
Specifications
Brand Name :
Yuntong
Model Number :
YT--F-2550
Certification :
CE , SGS
Place of Origin :
Hebei
MOQ :
10 Sqm
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
300Sqm/Week
Delivery Time :
5-8 Work Days
Packaging Details :
Carton Box , Wooden Case
Material :
Stainless Steel 304 , 316 , 316L
Wire Rope :
2.5 mm to 4.0 mm
Rope Constructions :
7 x 7 , 7 x 19
Mesh Orientation :
Horizontal , Vertical
Mesh Shape :
Rhombus , Diamond
Application :
Security Mesh Fence
Mesh Angle :
60 degree
Mesh Style :
Ferruled
Sheet Size :
Customized in Width and Length
Description

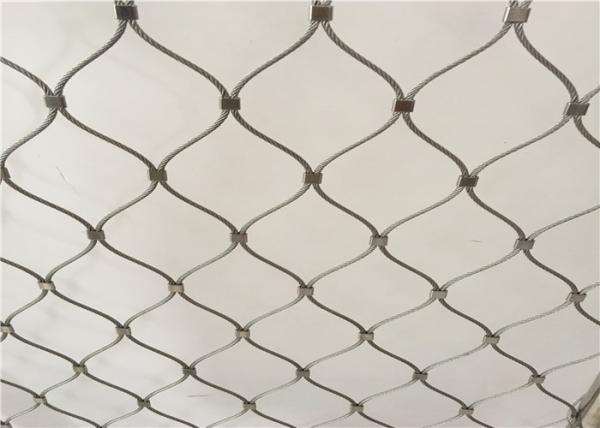

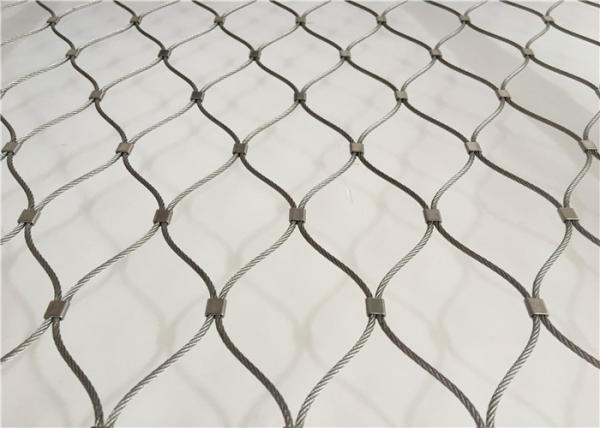

Hand Woven Flexible Protection Stainless Steel Grade Cable Wire Mesh Netting

Wire Rope Diameter
Flexible HeslyCable ferruled stainless steel cable mesh netting is made from stainless steel wire ropes.Extremely flexible,High strength, Corrosion resistant.Available AISI 316,AISI 304
Structure 1.2 mm 1.5 mm 2.0 mm 3.0mm 4.0 mm

Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
Structure 7 x 7 7 x 7 7 x 7 7 x 19 7 x 19
Single Wire TS (N/mm2) 1770 1770 1770 1570 1570
Opening Size ( OW X OH )
The mesh width ,OW ,refers to the distance from the middle of one ferrule to the next ferrule along the cable ,net geometry is optimised, when the resulting diamond can be divided into two equilateral triangles with 60 ° corners.
Opening Size Rope Diameter Mesh Structure
OW X OH 1.2 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
20 x 35 CD1020 Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
25 x 43 CD1025 CD1525
35 x 61 CD1035 CD1535
40 x 69 CD1040 CD1540 CD2040
50 x 87 CD1050 CD1550 CD2050 CD3050
60 x 104 CD1060 CD1560 CD2060 CD3060 CD4060
70 x 121 CD1070 CD1570 CD2070 CD3070 CD4070
80 x 139 CD1080 CD1580 CD2080 CD3080 CD4080 DecorRope
100 x 173 CD10100 CD15100 CD20100 CD30100 CD40100 OW : Opening Width
120 x 242 CD10120 CD15120 CD20120 CD30120 CD40120 OH : Opening Height
160 x 277 CD10160 CD15160 CD20160 CD30160 CD40160 OG : Opening Guage
180 x 312 CD10180 CD15180 CD20180 CD30180 CD40180 α : 60° standard (Angle: 30° - 90°)
200 x 346 CD10200 CD15200 CD20200 CD30200 CD40200

Mesh Aperture :
● Mesh aperture is the mesh hole size, is the distance from knot center to knot center.
● Stainless steel wire mesh is pure hand-woven, so it also be called as hand woven stainless steel wire rope mesh or stainless steel rope braid mesh. Every knotting crossing twice by hand, ensure the hole never variant.
● Hand woven stainless steel netting hole size is diverse
● We accept custom mesh size, whether so large, so small, our steel cable mesh can be very suit your design,

Mesh Orientation & Finished

Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle

Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle

Advantages

  • > 316 "marine grade" stainless steel
  • > Innovative, highly durable product
  • > Black anodised or galvanised finish options
  • > Great prices
  • > Professional, friendly service
  • > Pliable, high strength mesh system
  • > Wide range of sizes available
  • > UV and weather resistant
  • > Fast turnaround
  • > Ideal for many applications

Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh 60 Degree Angle
