Black Oxide Flexible SS Aviary Rope Mesh Netting Diamond Woven Type
Black Oxide Flexible SS Aviary Rope Mesh Netting Diamond Woven Type
Black Oxide Flexible SS Aviary Rope Mesh Netting Diamond Woven Type
Black Oxide Flexible SS Aviary Rope Mesh Netting Diamond Woven Type
Specifications
Brand Name :
Yuntong
Model Number :
YT-B-O
Certification :
CE , SGS
Place of Origin :
Hebei
MOQ :
10 Sqm
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
300Sqm/Week
Delivery Time :
5-8 Work Days
Packaging Details :
Carton Box or Wooden Case
Material :
Stainless Steel Wire Rope
Wire Rope :
1.2 mm to 4.0 mm
Rope Constructions :
7 x 7 , 7 x 19
Mesh Type :
Ferruled and Knotted
Finished :
Black Oxide
Mesh Angle :
60°IN RHOMBUS
Sheet Size :
Custom-made
Description

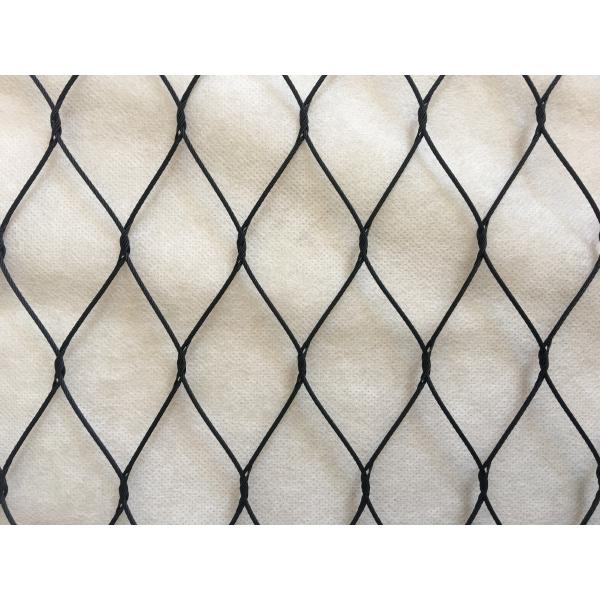

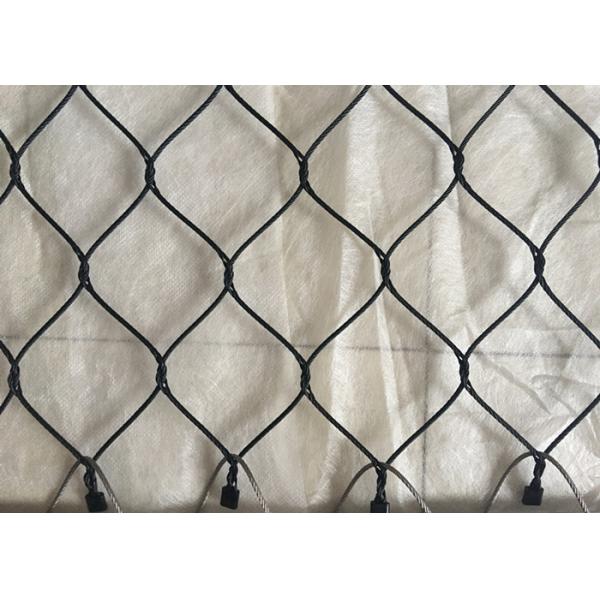

Black Oxide Woven Type Flexible Stainless Steel Aviary Rope Mesh Net

Black Oxide Rope Mesh Specification :

Hole Size

1.2MM(3/64)

 1.6MM(1/16) 2.0MM(5/64) 2.4MM(3/32) 3.2MM(1/8)
20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120

Finished diamond mesh style when it is stretched at 60 degree angle ;


Mesh can be applied in either a vertical or horizontal direction, again dependent on the design ;


Mesh sizes range from 20mm to 120mm or bigger with stainless cable diameters from 1.2mm to 4.0 mm.

Black Oxide Flexible SS Aviary Rope Mesh Netting Diamond Woven Type

Black Oxide Wire Rope Mesh Details

Mesh Type Ferruled or Knotted
Mesh Angle 60 degree in rhombus shape
Mesh Orientation Horizontal or Vertical
Panle Measurement Custom-made in width and lenght
Finished Black Oxide
Application Balustrade , Facade Cladding , Animal Enclosure , Aviary Netting

Black Oxide Flexible SS Aviary Rope Mesh Netting Diamond Woven Type

RFQ Of Black Oxide Rope Mesh :

1. Advantage of Wire Rope Net

Unique design. 3D-structure, Flexible, Light weight, . Corrosion resistant, Maintenaance free. 10 years rust guaranteed.

2. 304 or 316 stainless steel?

- Generally the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 almost same. we suggest to choose 316 stainless steel.

3. What is the different with cable and opening ?

- The heavier cable or smaller opening, the cost more expensive.

4. Is it safety ?

- Full mesh meet test under EN1263.1.2014

5. How to install the mesh !

- Full of our piece is manufactured with special edge design. install by yourself easily.

Black Oxide Flexible SS Aviary Rope Mesh Netting Diamond Woven Type

The flexible stainless steel cable mesh is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.

As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out.including: balustrade infill, animal enclosures, art forms, plant supports, safety nets, fencing and aviaries.

Black Oxide Flexible SS Aviary Rope Mesh Netting Diamond Woven Type
