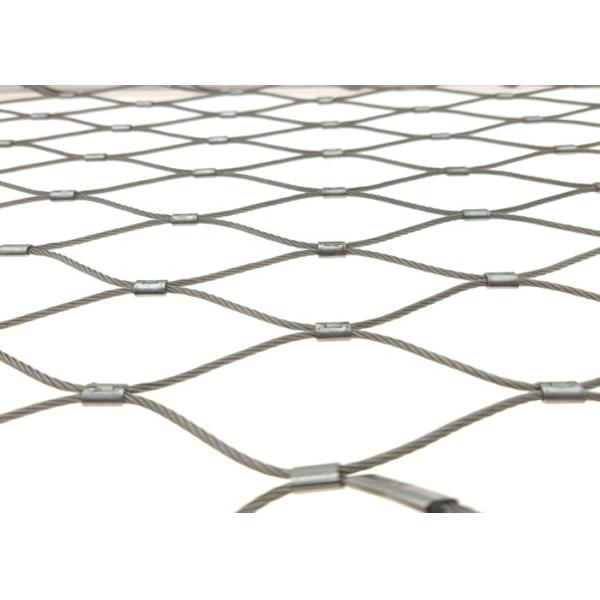

Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm
Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm
Specifications
Brand Name :
Yuntong
Model Number :
YT--F-2075
Certification :
CE , SGS
Place of Origin :
Hebei,China
MOQ :
10 Sqm
Payment Terms :
T/T, Western Union,PayPal, L/C
Supply Ability :
300Sqm/Week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton for the green wall climbing mesh
Material :
Stainless Steel 304 , 316 , 316L
Wire Thickness :
1.6 mm to 2.4 mm
Rope Constructions :
7 x 7
Mesh Eye Size :
50mm to 100 mm or bigger
Mesh Shape :
Rhombus , Diamond
Application :
Green Wall , Plant Trellis ,Climbing Net
Mesh Angle :
60 degree
Mesh Style :
X-tend in Ferruled Type
Shipment :
By Air or By Courier
Description

Flexible Transparent 316 Inox Wire Rope Mesh Solves The Safety Problems

Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm

Mesh Opening Size

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )
20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120


Material of Stainless steel 304,316,306L

SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316 (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Wire Rope Mesh made of high quality stainless steel, is a fabric of particular resilience and flexibility. Invented in 2000, it opens up a new world of spatial possibility using cables. And not doubt, it sweeps across the global market quickly thanks to its high strength, durability as well as corrosion resistance.

Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm

Our range of cable meshes are manufactured from high tensile stainless steel AISI 304, 304L, 316 or 316L. Meanwhile, these cables are available in constructions of 7 × 7 & 7 × 19 and in diameter from 1.2mm to 4mm. Other specifications can also be manufactured to match your design requirement.


Features Of Stainless Steel Plant Supporting Mesh ​:

1. High strength,strong toughness, free angles curving and fold, easy for transportation and installment.
2. It can bear heavy snow and glae.
3. Without toxic material, safety, environmental protection.

Mesh Aperture :
● Mesh aperture is the mesh hole size, is the distance from knot center to knot center.
● Stainless steel wire mesh is pure hand-woven, so it also be called as hand woven stainless steel wire rope mesh or stainless steel rope braid mesh. Every knotting crossing twice by hand, ensure the hole never variant.
● Hand woven stainless steel netting hole size is diverse
● We accept custom mesh size, whether so large, so small, our steel cable mesh can be very suit your design,

Mesh Orientation & Finished

Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm

Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm

Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm

Advantages

  • > 316 "marine grade" stainless steel
  • > Innovative, highly durable product
  • > Black anodised or galvanised finish options
  • > Great prices
  • > Professional, friendly service
  • > Pliable, high strength mesh system
  • > Wide range of sizes available
  • > UV and weather resistant
  • > Fast turnaround
  • > Ideal for many applications

Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm
Transparent Inox Flexible Stainless Steel Cable Netting 2.4mm
