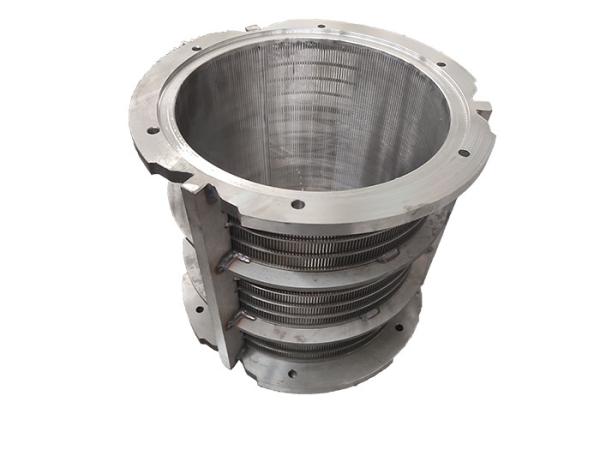

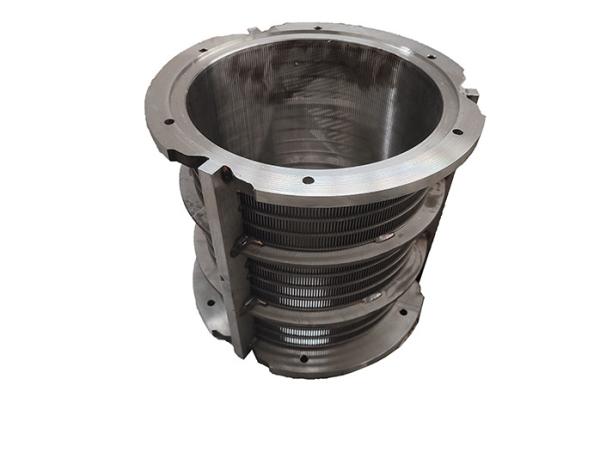

Stainless Steel 316L ID 255mm Rotary Drum Filter Wear Resistance
Stainless Steel 316L ID 255mm Rotary Drum Filter Wear Resistance
Stainless Steel 316L ID 255mm Rotary Drum Filter Wear Resistance
Stainless Steel 316L ID 255mm Rotary Drum Filter Wear Resistance
Specifications
Brand Name :
BaiTong
Model Number :
filter drum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 square meter per day
Delivery Time :
5-25days
Packaging Details :
Wooden Box or Pallets.
Product name :
Wedge Wire Screen Filter
Support Rod :
Round wire or Square wire or Wedge Wire
Application :
Oil & Gas industry, Refining & Petrochemical, Mining industry
Filter rating :
20-99%
Function :
pre-filter, Filtering Suspended Matter, Water Purification Plant, Producing Fresh Water, Water treatment
Length :
10-6000mm
Slot :
0.05-20mm
Types :
filter cylinder,water filter cartridge,filter elements
Width :
10-1500mm
Material :
metal, SS304, 304L, 316, 316L
Description

Flow From Inside To Outside Filtration Rotary Drum Wedge Wire Screen Filter

Wedge Wire Screen Filter Characteristics:

Wedge Wire Screen Filter with characteristics of toughness and clogging resistance where

slit/slot suitable for the application are formed by arranging "wedge wires" with a triangle shape at

equal intervals. They can be used for filtration, solid-liquid separation, classification, dewatering,

concentration, etc. regardless of industry or location.

Wedge Wire Screen Filter Description:
Wedge Wire Screen Filter is a kind of strainers that flow from inside to outside filtration,
with smooth working surface inside. This type wedge wire screen is manufactured by wrapping and
welding stainless steel V-shaped profile wire cylindrically around support rods under automatic
specialized wedge wire screen machine, then be made to screen pipe through cutting, reverse rolled,
welded processing.
Material

Wedge Wire Screen Filter
OD Range According to request and the actual flange and strengthen bar
ID Normal Size 176mm,200mm,230mm,255mm.Accroding to request
Surface Profile Triangle wire
Support Profile

triangle wire, round bar, and wedge wire
Normal Length 400mm,500mm 550mm 600mm,602mm According to request
Slot Size 0.05mm-35mm
Slot Direction Radial Direction
Cylinder diameter 10mm-1200mm
End Finishing Flange, , Metal Ring, etc

Wedge Wire Screen Filter Advantage:

1. It is not easy to block. The V-shaped sieve strips are arranged together. From the cross section, the

opening is a bell mouth. Once the catalyst particles pass through the gap of the sieve strips, they will be

taken away by the fluid, because there are only two points of contact between the particles and the edge

of the sieve strips, so the possibility of sticking in the gap of the sieve strips is very small.

The contact area between the edge of the hole and the particles is large, so the particles may get stuck.

2. It can filter fine particles. Johnson Net can control the gap between the screen strips by the density

of the screen strips. Raleigh uses CNC to modulate the gap, and the small gap can be up to 15 microns.

Wedge Wire Screen Filter Feature:

For special areas of application (among others, the starch industry) screen cylinders can of course also

be manufactured in looped finish. Adjoining is an example of two end flanges. In this case, as well, almost

all requirements by our customers can be realized after corresponding technical clarification.

Wedge Wire Screen Filter Packing & Delivery
Stainless Steel 316L ID 255mm Rotary Drum Filter Wear Resistance
Stainless Steel 316L ID 255mm Rotary Drum Filter Wear Resistance
