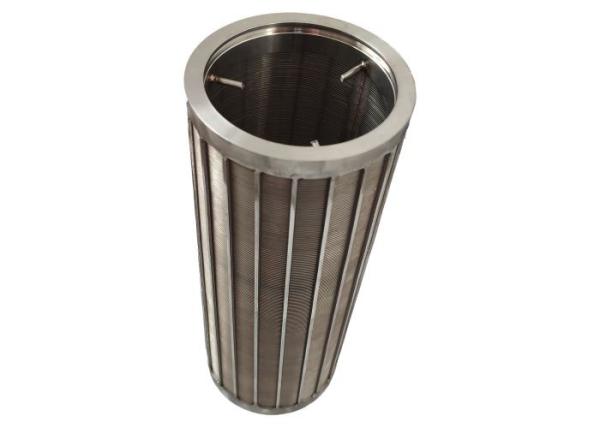

Length 500mm 0.4mm Slot Sediment Filter Cartridge Resistance To Clogging
Length 500mm 0.4mm Slot Sediment Filter Cartridge Resistance To Clogging
Length 500mm 0.4mm Slot Sediment Filter Cartridge Resistance To Clogging
Length 500mm 0.4mm Slot Sediment Filter Cartridge Resistance To Clogging
Specifications
Brand Name :
BaiTong
Model Number :
filter drum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 square meter per day
Delivery Time :
5-25days
Packaging Details :
Wooden Box or Pallets.
Product name :
Wedge Wire Screen Filter
Material :
304 or 316L Stainless Steel
Usage :
mine, coal, mineral and other application
Filter rating :
20-99%
Application :
pre-filter, Filtering Suspended Matter, Water Purification Plant, Producing Fresh Water, Water treatment
Length :
10-6000mm
Slot Size :
0.05-35mm
Types :
water filter cartridge, stainless steel filter element
Size :
20", 40", 254mm, 10", 20 inch
Cylinder Diameter :
10mm-1200mm
Description

Resistance To Clogging And Waste Water Treatment Wedge Wire Screen Filter

Wedge Wire Screen Filter Characteristics:

The Wedge Wire Rotary Drum is a drum sieve loaded from inside for separating suspended solids, particles

and fibres from liquids, process water and waste water.

The rotary drum can be equipped with different types of sieves or filters like perforated metal plates, wedge

wire screens and fabrics. This leads to a wide range of applications for various types of mediums.

So it is also possible, for example, to treat hot washing and process water.

It can be used as a washing drum for the dewatering of special products as well

Wedge Wire Screen Filter Description:
The Wedge Wire Rotary Drum is widely used for mechanical filtration.
It can separate solids, suspended substances(including feces, food waste and other organic water) over
30μm from water. The particles are filtered as the water flow through the sieve.
The rinsing system washes the wastes away from the sieve automatically and keeps the drum running
efficiently.
Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range According to request and the actual flange and strengthen bar
Normal ID 176mm,200mm,230mm,255mm. According to request
Normal Length 400mm,500mm 550mm 600mm,602mm According to request
Normal Slot 0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.
Slot Direction Radial Direction
Wedge Wire 0.75x1.5 1x2 2x3 2*4 3*5
Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

2x3

2x4

3x5

3x6

2x4

3x5

3x6

5x6

3x5

3x6

5x6
End Finishing Flange, , Metal Ring, etc
Note Customized According To Requirement

Wedge Wire Screen Filter Application:

For special areas of application (among others, the starch industry) screen cylinders can of course also

be manufactured in looped finish. Adjoining is an example of two end flanges. In this case, as well,

almost all requirements by our customers can be realized after corresponding technical clarification.

Wedge Wire Screen Filter Advantage:

high screening rate, abrasion resistance, corrosion resistance, anti - slip,

anti - vibration, strong elasticity, toughness, not close.The mesh section is trapezoid or wedge.

There's room in the gap.It is made of stainless steel wire cold rolled screen, support bar is welded

by automatic production equipment, screen seam uniform, stable welding quality, high porosity,

long service life, high strength, steel degree and bearing capacity, can be made into various shapes

of screen filter device.

Wedge Wire Screen Filter Packing & Delivery
Length 500mm 0.4mm Slot Sediment Filter Cartridge Resistance To Clogging
Length 500mm 0.4mm Slot Sediment Filter Cartridge Resistance To Clogging
