Slot Size 0.8mm For Filtering Sand And Gravel Out Of The Well V Wire Screen Pipe

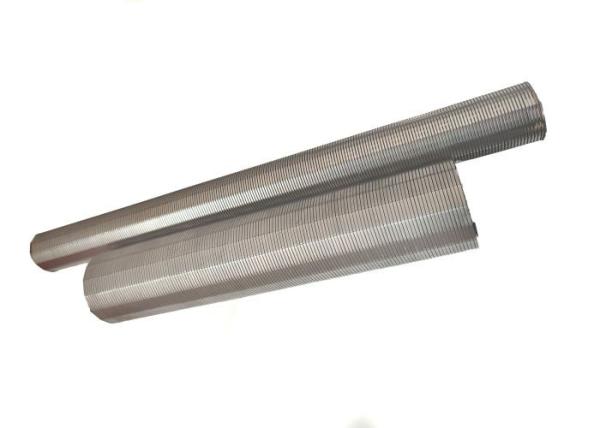

V Wire Screen Pipe Genral View

V Wire Screen Pipe is made by winding cold-rolled wire, approximately triangular in cross section,

around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing

rigid one-piece units having high strength characteristics at minimum weights.The wire is attached to the

rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

There is a fixed value slot between each v wire, and the continuous slot, designed to provide

maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more

effective development.

1. The filter rating is 0.05mm-100mm.

2. Main material is AISI304, AISI316, AISI316L,Hastelloy etc.

3. Connectors and the ending according to client’s request

4. We also can produce the specific sizes according to clients’ request,

design the screen according the usage.

V Wire Screen Pipe Specification:

V Wire Screen Pipe Characteristics

♦Large flow rate: this kind of screen pipe has a relatively small resistance. Compared with the plastic

filter element with similar overall size, it greatly increases its flow area, so under the same resistance,

the flow rate increases. In other words, in the case of the same output, the number of filter elements

can be reduced accordingly.

♦Corrosion resistance: for neutral water, acid water, alkaline water, hydrochloric acid,

sulfuric acid, salt and so on, if these materials are properly selected,

the filtration equipment can be operated economically and safely.

V Wire Screen Pipe Application:

1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal

2. Water injection, bi-modal sand, carbonates, thin pay

3. Horizontal, vertical , deviated oil and gas and water wells
