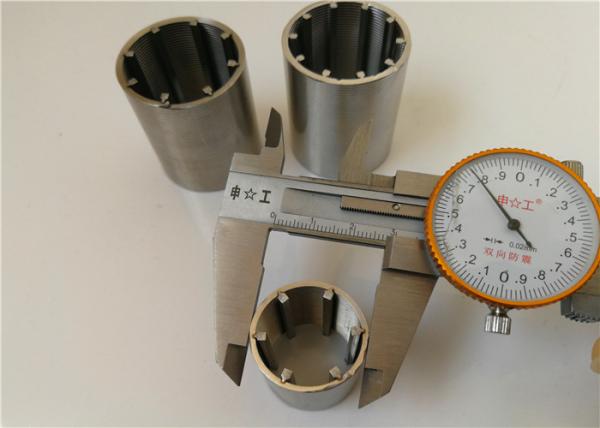

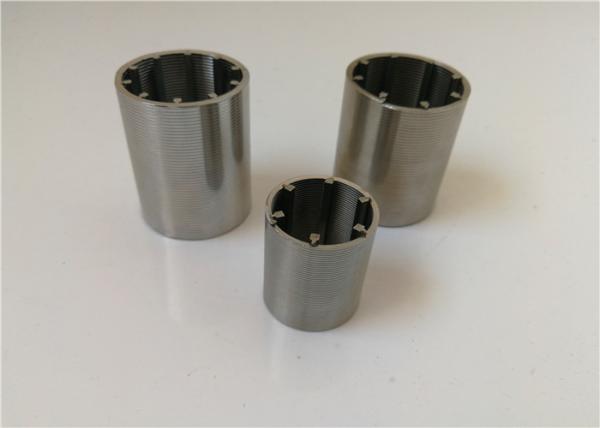

Wedge V Slotted Wire Stainless Steel 316 Sieve Cylinder Johnson Wire Screen

Johnson Wire Screen Specification:

Johnson Wire Screen Description:

Stainless Steel 316 Sieve Cylinder Johnson Wire Screen is mostly customized according to the needs

of customers, used in centrifuges or similar machines. It can be designed as a filter liner installed on the

existing frame, or in the form of an integral support structure.

Wedge Wire Screen Filter i can be used in pulp and paper and mineral processing, but it must be

particularly hard to resist high centrifugal force and high temperature, and it also needs to have special

wear resistance.

1. The filter rating is 0.05mm-100mm.

2. Main material is AISI304, AISI316, AISI316L,Hastelloy etc.

3. Connectors and the ending according to client’s request

4. We also can produce the specific sizes according to clients’ request,

design the screen according the usage.

Johnson Wire Screen Characteristics:

♦ The welded Johnson Wire Screen is made up of rods and profile wire.

The rod can be round wire, triangular wire or trapezoid wire.

The profile wire is triangular wire (V-shaped wire).

This type of wire wrap screen has a structure and high open area, as well as accurate slot dimension.

The wire is attached to the rods by welding, producing rigid one-piece units having high strength

characteristics at minimum weights. Slot opening for screens are manufactured by spacing successive

turns of the outer wire to produce the desired slot size. All slots should be clean and free of burrs and

cuttings. Each slot opening between adjacent wires is V-shaped, from the special shape of wire used

to form the screen surface.

The V-shaped openings designed to be non-clogging, narrowest at the outer face and widen inwardly.

♦Corrosion resistance: for neutral water, acid water, alkaline water, hydrochloric acid,

sulfuric acid, salt and so on, if these materials are properly selected,

the filtration equipment can be operated economically and safely.

Johnson Wire Screen Custom Range:

Stainless Steel 316 Sieve Cylinder Wedge Wire Screen Filter material:

mainly stainless steel, carbon steel galvanized, carbon steel spray or

other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.
