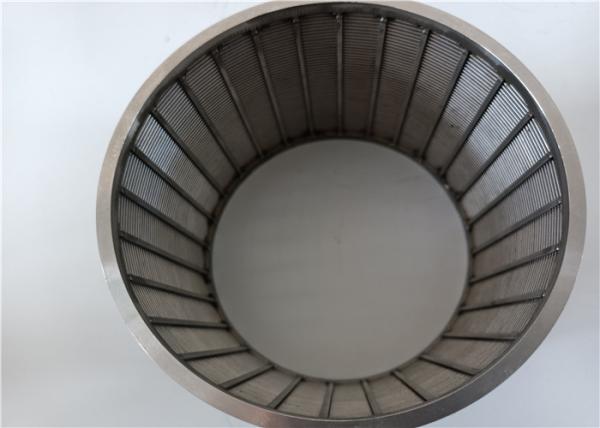

AISI 304 Welded Wire Wrapped OD 300 MM Stainless Steel Johnson Wire Screen

Stainless Steel Johnson Wire Screen Description

Stainless Steel Johnson Wire Screen is composed of V-shaped winding wire and support bar.

Each intersection is connected by fusion. It has strong structure and good mechanical performance.

The V-shaped section can avoid blockage and ensure smooth flow at the same time.

The continuous gap has a larger water passing area, and reduces the groundwater seepage speed,

so as to prevent the sand from entering the pipe under larger water pressure, which has a better

sand filtering performance. Crevices can also change according to different geology.

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside,

so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Stainless Steel Johnson Wire Screen Specification:

Stainless Steel Johnson Wire Screen Characteristics

♦ High strength: because this element adopts the structure of stainless steel wire, it has high strength.

This kind of screen tube can be cut on the grinding wheel cutting machine, and can also be machined

on the lathe, without loose deformation.

♦Good adaptability of temperature change: obviously, compared with ordinary plastic filter element,

the temperature application range of stainless steel wire wound screen tube of leiler company is much

wider than that of plastic filter element.

♦The small precision of the wedge filter screen produced by our company can reach 15 microns,

about 650 mesh. Small diameter can be up to 20 mm, large diameter can be up to 1000 mm and

length can be up to 3000 mm. It can be customized according to customers' requirements.

Stainless Steel Johnson Wire Screen Application:

Johnson Stainless Steel Screen Tube serves many industries including the surface water treatment,

food and be verage processing, pulp and paper, oil and gas, mineral, and architecture indust ries.

Stainless Steel Johnson Wire Screen Packing&Delivery:
