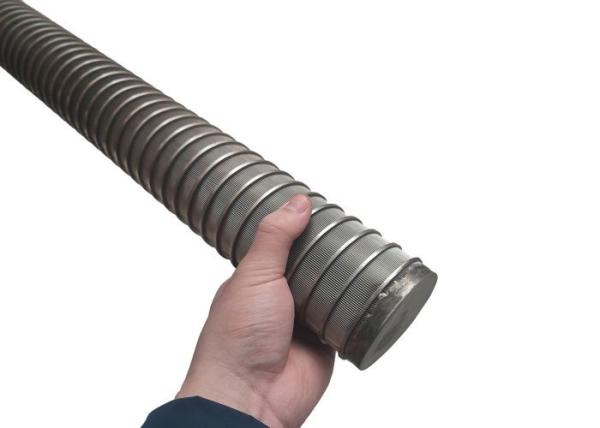

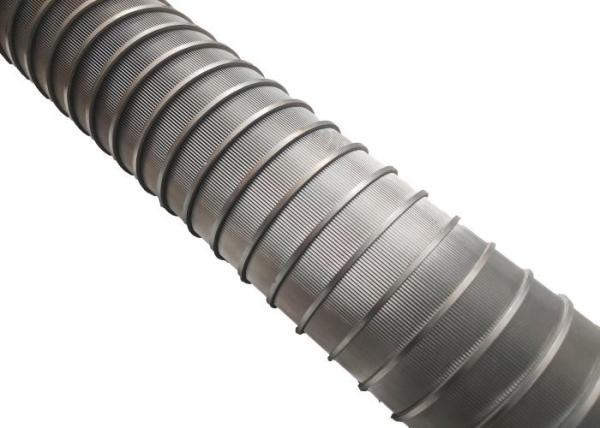

External Axial Wire Cylinder Stainless Steel Screen Filter L3m ID176mm
External Axial Wire Cylinder Stainless Steel Screen Filter L3m ID176mm
External Axial Wire Cylinder Stainless Steel Screen Filter L3m ID176mm
External Axial Wire Cylinder Stainless Steel Screen Filter L3m ID176mm
Specifications
Brand Name :
BaiTong
Model Number :
filter drum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 square meter per day
Delivery Time :
5-25days
Packaging Details :
Wooden Box or Pallets.
Product name :
Stainless Steel Screen Filter
Support Rod :
Round wire or Square wire or Wedge Wire
Application :
Oil & Gas industry, Refining & Petrochemical, Mining industry
Filter rating :
20-99%
Function :
pre-filter, Filtering Suspended Matter, Water Purification Plant, Producing Fresh Water, Water treatment
Length :
6M. & 3M, we suggest 5.8m(adapt to the container)
Slot :
0.05-20mm
Types :
filter cylinder,water filter cartridge,filter elements
Width :
10-1500mm
Material :
metal, SS304, 304L, 316, 316L and so on
Standard :
Non-standard, OEM, ODM
Grade :
Different grades suitable for tube well depths up to 300ft, 600ft, 900ft , and 1500ft.
Description

Normal External Axial Wire For Water Well Stainless Steel Screen Filter

Stainless Steel Screen Filter Characteristics:

For special areas of application (among others, the starch industry) S.S.Screen Filter can of course

also be manufactured in looped finish. Adjoining is an example of two end flanges.

In this case, as well, almost all requirements by our customers can be realized after corresponding

technical clarification.
We can offer reverse formed wedge wire screen pipe in the standard specifications,

the slot size from 0.2 mm to 1 mm, while pipe diameter from 100 mm to 914 mm,

and manufacture pipe length is up to 3 m, the wedge wire screen pipe is commonly constructed with

materials of grade 304 (1.4301) stainless steel.

Stainless Steel Screen Filter Description:
Normal External Axial Wire For Water Well Stainless Steel Screen Filter also named johnson screen
are produced as flat, arch bent, gutter type, cone, and cylindrical segments.
They are characterized by the precision workmanship and gap size, extended lifespan, capability of
the self-cleaning and low-pressure drop.
It is made of 'V' shaped stainless steel wire and stainless steel strip. Smooth surface is for filtering,
the gap is the strip, belonging to the form of surface filtration. As a multiform of automatic filters
( such as automatic backwashing, scraper self-cleaning, scraping disc self-cleaning, sucking
self-cleaning filter) are widely used in various industries of fluid filtration.
Material

Stainless steel 304.304L,316,316L
OD Range According to request and the actual flange and strengthen bar
ID Normal Size 176mm,200mm,230mm,255mm.Accroding to request
Surface Profile Triangle wire
Support Profile

triangle wire, round bar, and wedge wire
Normal Length 6Mts. & 3Mts, we suggest 5.8m(adapt to the container)
Slot Size 0.1,0.15,0.2,0.25,0.3,--3mm
Slot Direction Radial Direction
Cylinder diameter 10mm-1200mm
End Finishing Flange, , Metal Ring, etc

Stainless Steel Screen Filter Application:

We provide the screen filters solutions to almost every industry,including:

1) Architecture & Construction
2) Food & Beverage Screens
3) Mineral & Aggregate Processing
4) OEM Screen Components
5) Pulp & Paper Screens
6) Refining & Petrochemical
7) Waste Water Treatment
8) Water Well & Oil well
9) Coal
10) Mine

Stainless Steel Screen Filter Feature:

Easy leakage, wear resistance, corrosion resistance. The mesh cross section is a trapezoid, the narrow

width of the gap, have a wire made of cold rolled stainless steel, this wire supports rods.

The screen is uniform, the welding is stable, high hole rate, long service life, high strength, stiffness and

bearing capacity of rigid, screening filter device can be made into various shapes.

Stainless Steel Screen Filter Packing & Delivery
External Axial Wire Cylinder Stainless Steel Screen Filter L3m ID176mm
External Axial Wire Cylinder Stainless Steel Screen Filter L3m ID176mm
