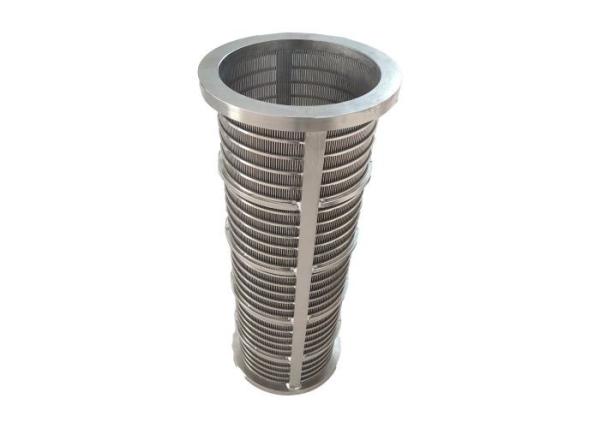

500mm Length Wedge Wire Screen Filter
500mm Length Wedge Wire Screen Filter
500mm Length Wedge Wire Screen Filter
500mm Length Wedge Wire Screen Filter
500mm Length Wedge Wire Screen Filter
500mm Length Wedge Wire Screen Filter
Specifications
Brand Name :
BaiTong
Model Number :
filter drum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 square meter per day
Delivery Time :
5-25days
Packaging Details :
Wooden Box or Pallets.
Product name :
Rotary Filter Drum
Support Rod :
Round wire or Square wire or Wedge Wire
Application :
Oil & Gas industry, Refining & Petrochemical, Mining industry
Filter rating :
20-99%
Function :
pre-filter, Filtering Suspended Matter, Water Purification Plant, Producing Fresh Water, Water treatment
Length :
10-6000mm
Slot :
0.05-20mm
Types :
filter cylinder,water filter cartridge,filter elements
Width :
10-1500mm
Material :
metal, SS304, 304L, 316, 316L
Description

Support Rod Diameter 4 Mm Welded Wire Mesh Screen Rotary Filter Drum

Rotary Filter Drum Characteristics:

For special areas of application (among others, the starch industry) Rotary Filter Drum can of course also

be manufactured in looped finish. Adjoining is an example of two end flanges.

In this case, as well, almost all requirements by our customers can be realized after corresponding

technical clarification.
We can offer reverse formed wedge wire screen pipe in the standard specifications,

the slot size from 0.2 mm to 1 mm, while pipe diameter from 100 mm to 914 mm,

and manufacture pipe length is up to 3 m, the wedge wire screen pipe is commonly constructed with

materials of grade 304 (1.4301) stainless steel.

Rotary Filter Drum Description:
The Welded Wire Mesh Screen Rotary Filter Drum is the core component of the manure separator ,
made of wedge wire screen, Its design directly affects the efficiency and service life of the separator.
The product specifications required to handle different manure are different.
The most critical parameter is the slot size, users need to choose the right product according to their
actual situation. Related questions can also leave us a message on the website,
There will be technical staff to provide professional answers.
Material

Rotary Filter Drum
OD Range According to request and the actual flange and strengthen bar
ID Normal Size 176mm,200mm,230mm,255mm.Accroding to request
Surface Profile Triangle wire
Support Profile

triangle wire, round bar, and wedge wire
Normal Length 400mm,500mm 550mm 600mm,602mm According to request
Slot Size 0.05mm-35mm
Slot Direction Radial Direction
Cylinder diameter 10mm-1200mm
End Finishing Flange, , Metal Ring, etc

Rotary Filter Drum Advantage:

1. V-shaped wire structure, not easy to block

2. Easy to clean

3. Sturdy construction

4. Easy to install and maintain Wedge wire screen is also our main product,

we have four wedge wire screen production equipment, which can process various sizes of drum screens.

We have a huge advantage in the design, manufacturing and after-sales service of the drum screen.

Rotary Filter Drum Feature:

1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

Rotary Filter Drum Packing & Delivery
500mm Length Wedge Wire Screen Filter
500mm Length Wedge Wire Screen Filter
