0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production
0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production
0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production
0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production
0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production
0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production
Specifications
Brand Name :
BaiTong
Model Number :
Wedge wire mesh screen
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
1000 square meter per day
Delivery Time :
5-25days
Packaging Details :
Wooden Box or Pallets.
Product name :
wedge wire Arc screen
Other Names :
Stianless Steel 0.5mm Slot For Starch Production Wedge Wire Arc Screen
Application :
used in screening, filtration, dehydration and desliming operations for sieving and filtration
Filter Rating :
99%
Slot Size :
0.05 mm - 10 mm(tolerance+/-5um)
Material :
304
Panel Length :
500 mm - 3000 mm
Panel Width :
500 mm - 2000 mm
End Finish :
With the frame; without any frame, according to request
After-sales service provided :
Online support, Video technical support
Description

Stianless Steel 0.5mm Slot For Starch Production Wedge Wire Arc Screen

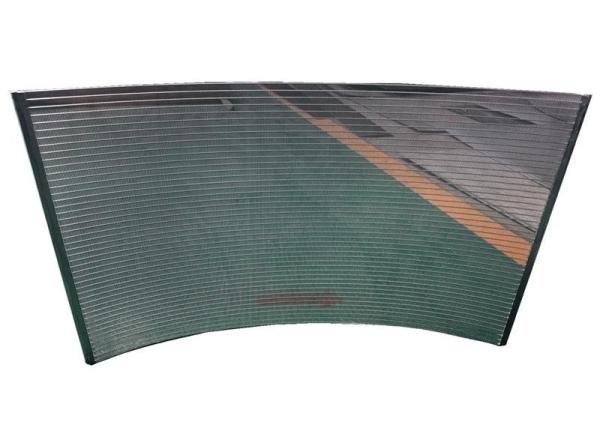

Wedge Wire Arc Screen Description

Wedge wire Arc screen , also called wedge wire starch screens,

are manufactured with stainless steel wrap wire and support wire.Then weld the flange plate.

The surface profile are welded onto support profiles at each intersection in a 90 degree.

Wedge Wire Arc Screen Features:

Wedge wire screen panels are composed of surface profile and support profile.

The surface profile is commonly triangle wire, and the support profile can be triangle wire,

wedge wire, round bar and rectangular bar.

They can suit different machines and can be used in various applications.

Wedge Wire Arc Screen Specification:

Material: stainless steel

Wrap wire : V wire (wedge wire).

Support profile type: round wire.

Slot size: 0.05 mm - 10 mm.

Pitch: 10 mm - 35 mm.

Panel width: 500 mm - 2000 mm.

Panel length: 500 mm - 3000 mm.

Wedge wire arc screen applications:

1. Starch machinery
2. Nozzle type water treatment machinery
3. Powder pressure handling machinery

0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production

Welded Wedge Wire Screen Panels Advantage:

Advantage 1. Flat Surface
Advantage 2. Excellent filtering performance
Advantage 3. accurate distance between supporting profile
Advantage 4. welded production process for solid and strong structure
Advantage 5. Good mechanical properties
Advantage 6. High strength
Advantage 7. corrosion and rust resistance
Advantage 8.

Temperature resistance.
Advantage 9.

Chemical stability.

Welded Wedge Wire Screen Panels Packing&loading:
0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production
If you are interesting in this product,please contact us anytime.
0.5mm Slot Width 500mm Wedge Wire Screen For Starch Production
